Schneider Electric XALD Series Push Button Switch, Silicone Polymer, Screw, 22 mm Cutout, 1 NC, Red LED, IP66, IP69,

RS Stock No.:: 345-295
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: XALD1644
ผู้ผลิต:: Schneider Electric

Schneider Electric XALD Series Push Button Switch, Silicone Polymer, Screw, 22 mm Cutout, 1 NC, Red LED, IP66, IP69,

ยอดรวมย่อย (1 ชิ้น)*

THB2,583.98

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB2,764.86

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อกของผู้ผลิต

พร้อมส่งจากวันที่ 04 มิถุนายน 2569

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB2,583.98

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 345-295
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: XALD1644
ผู้ผลิต:: Schneider Electric

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Schneider Electric
	Product Type	Push Button Switch
	Actuator Colour	Red
	Switch Operation	Silicone Polymer
	Illuminated	No
	Panel Cutout Size	22 mm
	Series	XALD
	Mount Type	Screw
	Contact Configuration	1 NC
	LED Colour	Red
	Terminal Type	Screw
	IP Rating	IP66, IP69, IP69K
	Contact AC Voltage	600V ac
	Contact DC Voltage	600V dc
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	70°C
	Standards/Approvals	JIS C8201-1, CSA C22.2 Nr. 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-5-1, UL 508

	เลือกทั้งหมด
	Brand Schneider Electric
	Product Type Push Button Switch
	Actuator Colour Red
	Switch Operation Silicone Polymer
	Illuminated No
	Panel Cutout Size 22 mm
	Series XALD
	Mount Type Screw
	Contact Configuration 1 NC
	LED Colour Red
	Terminal Type Screw
	IP Rating IP66, IP69, IP69K
	Contact AC Voltage 600V ac
	Contact DC Voltage 600V dc
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 70°C
	Standards/Approvals JIS C8201-1, CSA C22.2 Nr. 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-5-1, UL 508

ล็อกอินเพื่อดูโมเดล CAD

COO (Country of Origin):: CZ

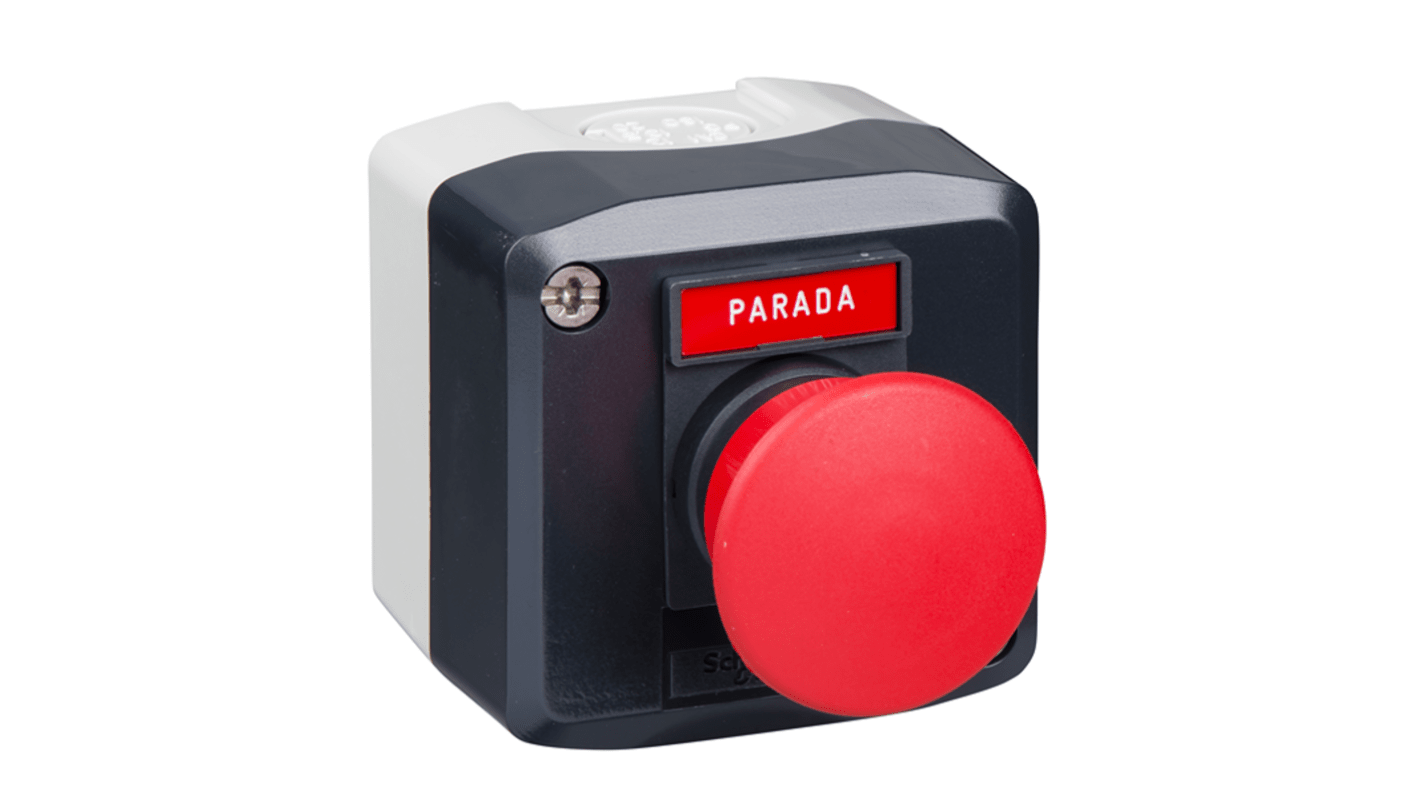

Schneider Electric Harmony Series Push Button Switch, 22mm Panel Cut Out Diameter, 10A Current Rating - XALD1644

This push button switch is a robust device designed for various automation needs within electrical and mechanical environments. Featuring a 22mm diameter suitable for standard panel cut-outs, it offers a screw mount type for simple installation. The red mushroom-style button is distinguished by its slow break operation, making it an Ideal choice for applications requiring reliable control.

Features & Benefits

• High voltage rating of 600V enables safe operation in demanding environments
• IP66, IP69, and IP69K ratings provide protection against dust and water ingress
• Contact configuration with a normally closed switch supports versatile control options
• Silver alloy contact material ensures superior conductivity and durability
• Screw clamp Terminal type simplifies wiring and maintenance tasks

Applications

• Used with industrial machinery requiring manual operation
• Suitable for in harsh outdoor conditions
• Utilised in control panels for automation systems
• Ideal for safety circuits in production environments
• Effective where space is limited to enhance operational efficiency

What are the environmental resilience capabilities of this switch?

This switch can operate effectively in temperatures ranging from -40°C to +70°C, making it suitable for extreme conditions, and has an IP66, IP69, and IP69K rating, ensuring durability against dust and water exposure.

How does the slow break operation benefit users in practical applications?

The slow break operation allows for a gradual disconnection of the electrical circuit, reducing electrical arcing and wear on components, which enhances the overall longevity and reliability of the circuit.

What installation considerations should be taken into account for this switch?

Ensure the panel cut-out is precisely 22mm and that sufficient space is available for screw mounting. The installation should also consider the operational environment to optimise performance based on the switch's temperature and IP ratings.
