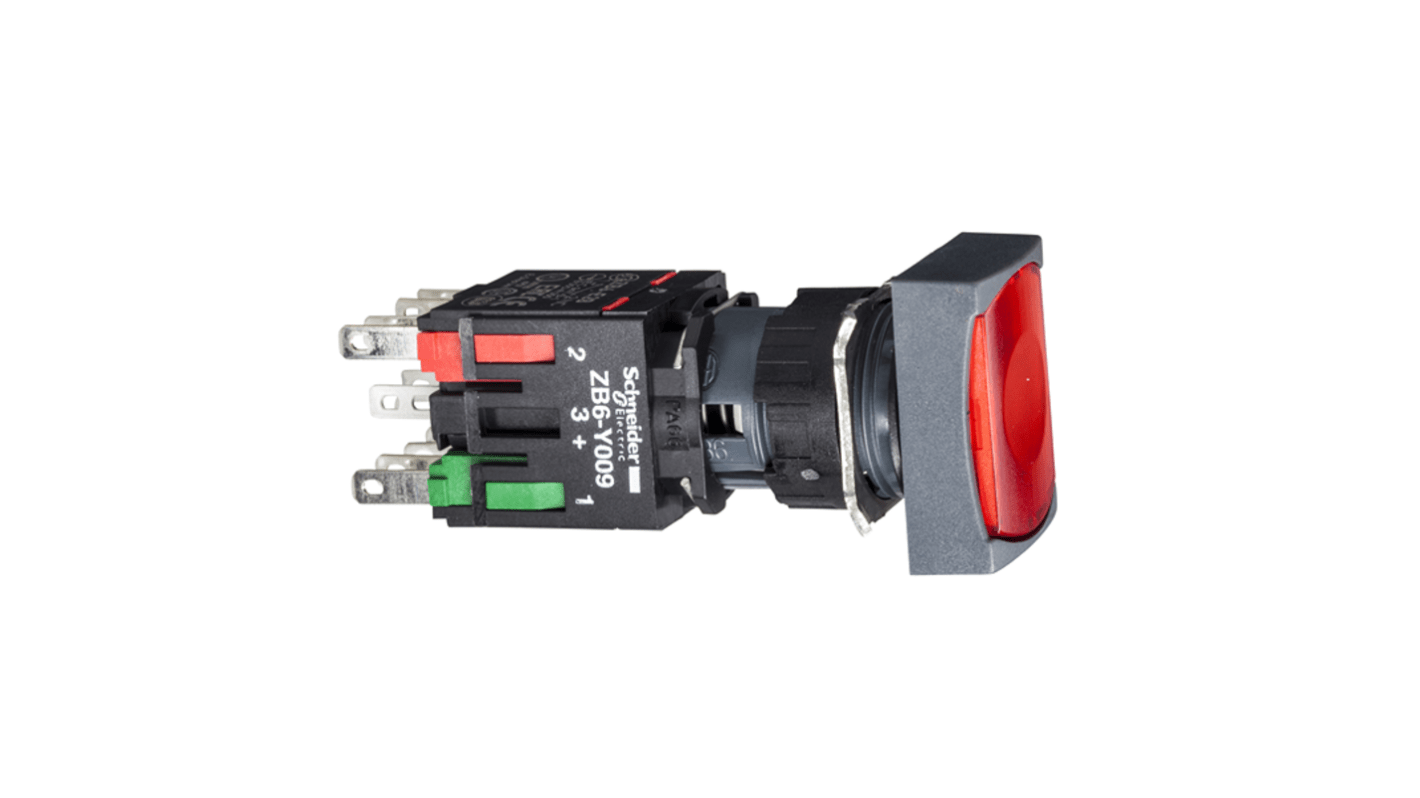

Schneider Electric XB6D Series Illuminated Push Button Switch, Slow Break, 16 mm Cutout, 1 NO/1 NC, Red LED, IP65, 30 V

RS Stock No.:: 340-745
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: XB6DF4B5B
ผู้ผลิต:: Schneider Electric

Schneider Electric XB6D Series Illuminated Push Button Switch, Slow Break, 16 mm Cutout, 1 NO/1 NC, Red LED, IP65, 30 V

ยอดรวมย่อย (1 ชิ้น)*

THB2,560.29

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB2,739.51

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อกของผู้ผลิต

พร้อมส่งจากวันที่ 26 พฤษภาคม 2569

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB2,560.29

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 340-745
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: XB6DF4B5B
ผู้ผลิต:: Schneider Electric

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Schneider Electric
	Switch Operation	Slow Break
	Actuator Colour	Red
	Product Type	Push Button Switch
	Illuminated	Yes
	Panel Cutout Size	16 mm
	Series	XB6D
	Contact Configuration	1 NO/1 NC
	Terminal Type	FASTON
	LED Colour	Red
	IP Rating	IP65
	Contact AC Voltage	30V ac
	Contact DC Voltage	30V dc
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Width	24mm
	Length	57mm
	Standards/Approvals	UL 508, JIS C 852, JIS C 4520, EN/IEC 60947-5-5, EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 Nr. 14
	Height	18mm

	เลือกทั้งหมด
	Brand Schneider Electric
	Switch Operation Slow Break
	Actuator Colour Red
	Product Type Push Button Switch
	Illuminated Yes
	Panel Cutout Size 16 mm
	Series XB6D
	Contact Configuration 1 NO/1 NC
	Terminal Type FASTON
	LED Colour Red
	IP Rating IP65
	Contact AC Voltage 30V ac
	Contact DC Voltage 30V dc
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Width 24mm
	Length 57mm
	Standards/Approvals UL 508, JIS C 852, JIS C 4520, EN/IEC 60947-5-5, EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 Nr. 14
	Height 18mm

ล็อกอินเพื่อดูโมเดล CAD

COO (Country of Origin):: FR

Schneider Electric Harmony Series Push Button Switch, 16mm Panel Cut Out Diameter, 250V Voltage Rating - XB6DF4B5B

This push button switch is an essential component designed for versatile applications in automation and electrical systems. Featuring a rectangular shape, it includes a 16mm diameter panel cut-out, making it suitable for a range of mounting needs. The illuminated push button is vibrantly red, ensuring it stands out for easy operation. With a voltage rating of 250V and a contact current capability of 6A, this switch operates efficiently within temperature extremes from -25°C to +70°C, offering reliable functionality in demanding environments.

Features & Benefits

• Illuminated design enhances visibility and accessibility in low light
• IP65 rating provides robust protection against dust and water
• Slow break operation reduces electrical arcing for safety
• 1NO 1NC contact configuration allows for versatile circuit control
• Constructed from silver alloy for durability and efficient conductivity
• Faston terminals facilitate quick and secure connections

Applications

• Used in control panels for machinery in industrial settings
• Ideal for emergency stop in automation systems
• Suitable for use in outdoor environments where water resistance is essential
• Applied in electronics where Visual feedback is Crucial during operation
• Utilised in mechanical assembly lines for quick, reliable operation

What is the maximum voltage this switch can handle?

The switch can accommodate a maximum DC voltage of 250V, ensuring it is suitable for various electrical applications.

How does the IP65 rating benefit the switch in harsh conditions?

The IP65 rating indicates protection against dust ingress and water jets, making the switch Ideal for use in outdoor or industrial environments where exposure to moisture is likely.

What material is used for the contact components, and why is it significant?

The switch uses silver alloy for its contacts, which provides excellent conductivity and resistance to wear, ensuring long-term reliability and performance.

Can this switch be mounted in panels with a specific cut-out size?

Yes, it is designed for a panel cut-out diameter of 16mm, making it easy to incorporate into pre-existing setups without extensive modifications.
