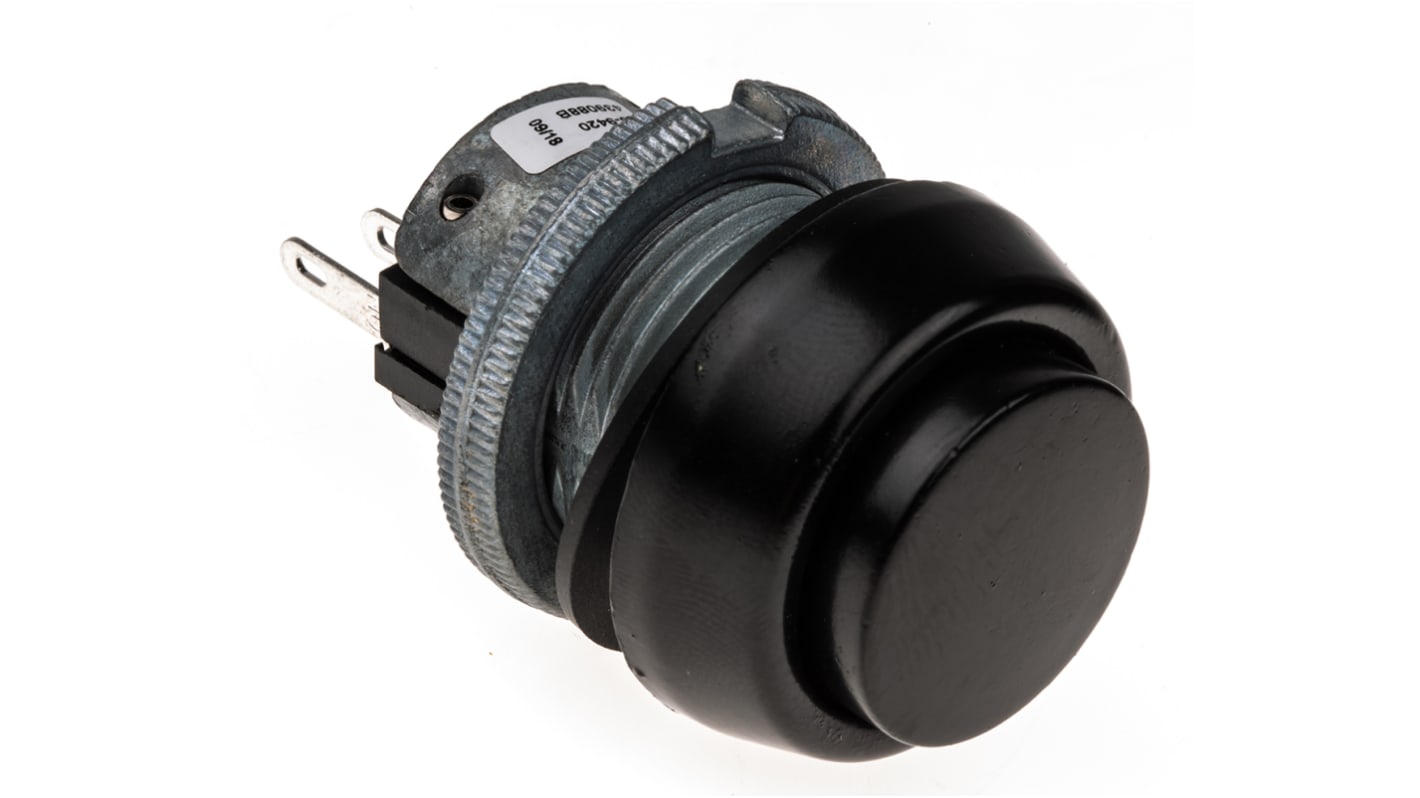

ITW Switches 76-94 Series Push Button Switch, Momentary, Panel Mount, 22mm Cutout, SPDT, Clear LED, 250V ac, IP67
- RS Stock No.:
- 320-809
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 76-9420/439088B
- ผู้ผลิต / Manufacturer:
- ITW Switches
รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
ดู Push Button Switches ทั้งหมด
15 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB902.76
(exc. VAT)
THB965.95
(inc. VAT)
Units | Per unit |
1 - 7 | THB902.76 |
8 - 14 | THB880.19 |
15 + | THB866.65 |
- RS Stock No.:
- 320-809
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 76-9420/439088B
- ผู้ผลิต / Manufacturer:
- ITW Switches
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- BZ
รายละเอียดสินค้า / Product Details
High Impact IP67 Pushbutton Switches
The 76-94 Series from ITW, have been designed to cover a wide range of harsh environmental applications. Such as:-
Military Environments
Robust Industrial
Vandal resistant requirements
Mining Industries
Petrochemical
Process control
Material Handling
Robust Industrial
Vandal resistant requirements
Mining Industries
Petrochemical
Process control
Material Handling
Features and Benefits
The range is available in 3 styles, push-button, rotary and panel lamp.
Push-button comes in 4 button styles with 3 colour options and has solder/faston terminals as standard.
The rotary is a single pole, 2 position, snap action switch with green or red spot indicator on the black actuator.
The indicator version is available with a red, green or amber lens.
Panel sealed to IP67 and due to the construction and the materials used, are all capable of surviving the impact of approximately a 5 kg mass dropped from 40 cm (20J).
(IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
The bezels and the actuators have been designed from non- sparking zinc alloy.
Explosive-proof material used.
Push-button comes in 4 button styles with 3 colour options and has solder/faston terminals as standard.
The rotary is a single pole, 2 position, snap action switch with green or red spot indicator on the black actuator.
The indicator version is available with a red, green or amber lens.
Panel sealed to IP67 and due to the construction and the materials used, are all capable of surviving the impact of approximately a 5 kg mass dropped from 40 cm (20J).
(IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
The bezels and the actuators have been designed from non- sparking zinc alloy.
Explosive-proof material used.
Note
This 76-9420/439088B is a momentary, panel mount push button switch.
Features and Benefits
Raised button
Solder/faston, 1 pole
Push-button & rotary
Black Indicator colour
Momentary push button switch only makes electrical contact whilst the button is pressed, once you let go the switch returns it to the off position.
Solder/faston, 1 pole
Push-button & rotary
Black Indicator colour
Momentary push button switch only makes electrical contact whilst the button is pressed, once you let go the switch returns it to the off position.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Switch Operation | Momentary |
Illuminated | No |
Mounting Type | Panel Mount |
Contact Configuration | Single Pole Double Throw (SPDT) |
Push Button Style | Round |
Push Button Colour | Black |
Panel Cut Out Diameter | 22mm |
Contact Material | Fine Silver |
LED Colour | Clear |
Series | 76-94 |
IP Rating | IP67 |
Voltage Rating | 250V ac |
Contact Current Rating | 10.1 A @ 250 V ac |
Case Colour | Black |
Contact AC Voltage Rating | 250V |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +125°C |
Manufacturer Part No. | 76-9420/439088B |
Terminal Type | Solder |
Maximum Operating Temperature | +125°C |
