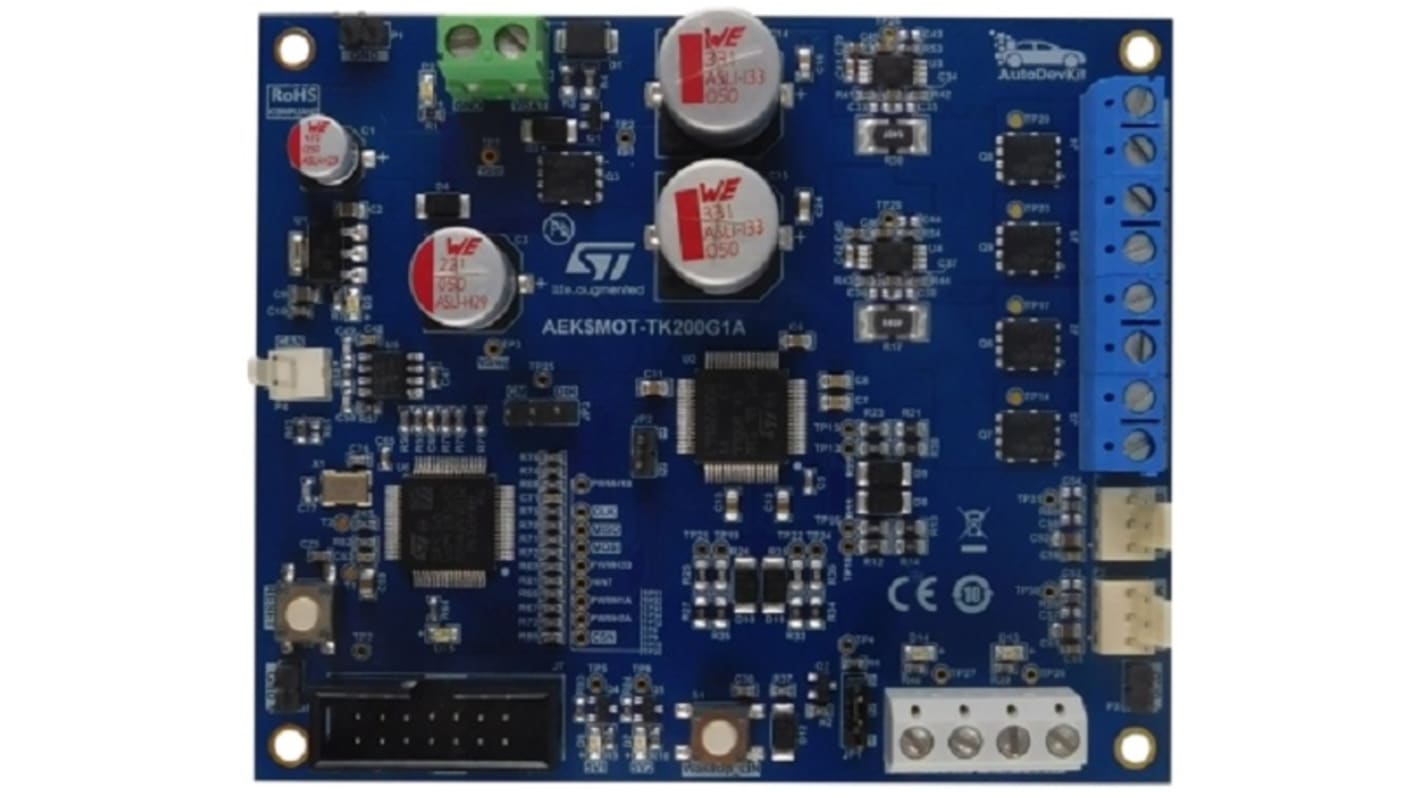

STMicroelectronics Power liftgate controller board based on L99DZ200G multioutput driver and SPC582B60E1 Chorus 1M

The STMicroelectronics product is designed as a zone controller for the power lift gate application. The two main devices hosted are the L99DZ200G automotive grade multioutput driver and the SPC582B60E1 Chorus 1M automotive grade microcontroller. The L99DZ200G device enables the board with two H bridge gate drivers that control an external MOS tuned for the power lift gate application actuations. Up to three DC motors can be driven , two simultaneously and one by itself. The product supports the current sensing for both H bridges to impact on the hall sensor positioning and to detect obstacles encountered while opening or closing the lift gate.

Controls up to three DC motors via the L99DZ200G H bridge gate drivers
Supports two additional high side outputs to drive bulbs, relays, and LEDs
Supports CAN bus interface for remote control
Open load and overcurrent detection
Thermal warning and thermal shutdown protection
