STMicroelectronics Automotive Grade Dual DC Motor driver up to 35A each Current Controller for AEK-MOT for DC motor
- RS Stock No.:
- 210-8275
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- AEK-MOT-2DC40Y1
- ผู้ผลิต:
- STMicroelectronics
ขาดตลาด
เนื่องจากการขาดแคลนสินค้าทั่วโลก เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกเมื่อใด
- RS Stock No.:
- 210-8275
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- AEK-MOT-2DC40Y1
- ผู้ผลิต:
- STMicroelectronics
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | STMicroelectronics | |
| Power Management Function | Current Controller | |
| Product Type | Development Kit | |
| For Use With | DC motor driving applications | |
| Kit Classification | Evaluation Kit | |
| Featured Device | AEK-MOT | |
| Kit Name | Automotive Grade Dual DC Motor driver up to 35A each | |
| Standards/Approvals | RoHS | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand STMicroelectronics | ||
Power Management Function Current Controller | ||
Product Type Development Kit | ||
For Use With DC motor driving applications | ||
Kit Classification Evaluation Kit | ||
Featured Device AEK-MOT | ||
Kit Name Automotive Grade Dual DC Motor driver up to 35A each | ||
Standards/Approvals RoHS | ||

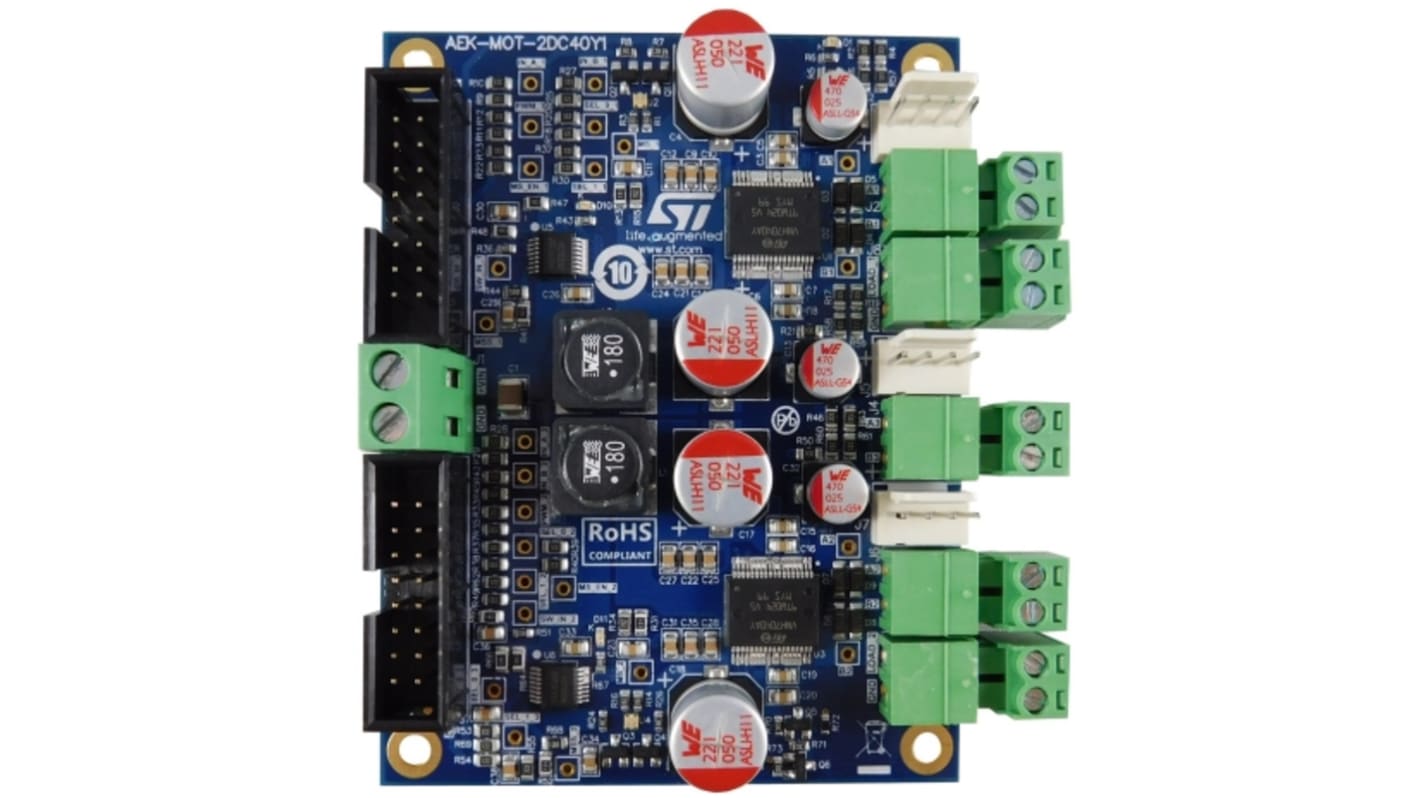

The AEK-MOT-2DC40Y1 is a very compact solution for multi DC motor driving applications, embedding all the driver and signal decoding functions on the same board.
Together with current sensing capability, the AEK-MOT-2DC40Y1 features three independent encoder inputs. The DC motor drivers have separate half-bridge driving which allows up to three separated motors with only two devices, using an appropriate driving sequence.
The motor driver is ideal for two-wheel applications and allows engineers to build highly compact motor control solutions. The two high-side drivers facilitate additional driving for system actuators (unidirectional DC motor, LED, pump, etc.).
All Features
Dual DC motor driver
Parallel driving
Bi-directional
Output current up to 35A each device
Three DC motor drivers
Up to two in parallel
Bi-directional
Dual high-side driver
Parallel driving
Suitable for DC unidirectional driving
One channel up to 85A and the other up to 25A
Optional encoder input
Three separated connectors
Size 65mm x 83mm
Included in AutoDevKit initiative
RoHS compliant
