Infineon EVALM7LVMOSINVTOBO1 3-Phase Inverter for Infineon’s 60 V OptiMOSTM power MOSFETs for EVAL-M7-LVMOS-INV
- RS Stock No.:
- 249-1390
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- EVALM7LVMOSINVTOBO1
- ผู้ผลิต:
- Infineon
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB3,001.52
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB3,211.63
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 6 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 1 | THB3,001.52 |
| 2 - 2 | THB2,941.65 |
| 3 + | THB2,882.77 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 249-1390
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- EVALM7LVMOSINVTOBO1
- ผู้ผลิต:
- Infineon
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Infineon | |
| Product Type | Evaluation Board | |
| Power Management Function | 3-Phase Inverter | |
| For Use With | EVAL-M7-LVMOS-INV | |
| Kit Classification | Evaluation Board | |
| Featured Device | Infineon’s 60 V OptiMOSTM power MOSFETs | |
| Kit Name | EVALM7LVMOSINVTOBO1 | |
| Standards/Approvals | RoHS | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Infineon | ||
Product Type Evaluation Board | ||
Power Management Function 3-Phase Inverter | ||
For Use With EVAL-M7-LVMOS-INV | ||
Kit Classification Evaluation Board | ||
Featured Device Infineon’s 60 V OptiMOSTM power MOSFETs | ||
Kit Name EVALM7LVMOSINVTOBO1 | ||
Standards/Approvals RoHS | ||

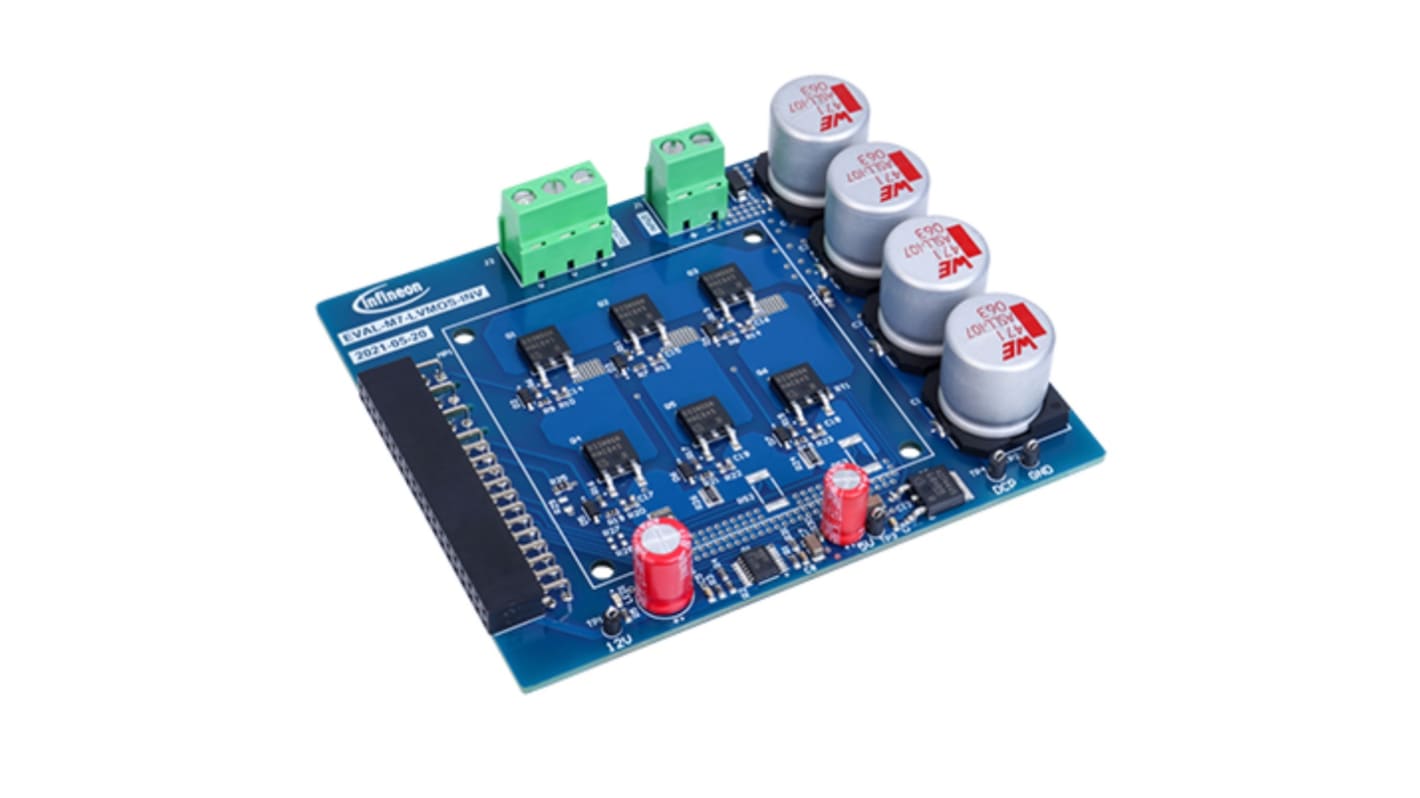

Infineon Evaluation Board, 3-Phase Inverter Power Management Function, For Use With EVAL-M7-LVMOS-INV - EVALM7LVMOSINVTOBO1
This evaluation board is designed for power electronics applications, specifically highlighting Infineon's advanced 3-phase inverter technology. Measuring 80mm x 93mm and constructed with 2 layers, it integrates high-performance components to enable efficient motor control in various automated systems and low-voltage applications.
Features & Benefits
• Utilises Infineon's 60V OptiMOS™ technology for superior efficiency
• Supports output power of up to 300W at 20kHz
• Designed for high-performance applications with low-voltage motors
• Provides both 5V and 15V auxiliary power supply outputs
Applications
• Ideal for driving low-voltage motors such as fans and pumps
• Suitable for use in automotive and industrial automation systems
• Engages in motor control evaluations for home appliance
• Facilitates rapid prototyping in power management solutions
What are the capabilities of this evaluation board in motor control?
The evaluation board supports various motor types including permanent magnet synchronous motors (PMSM) and brushless DC motors (BLDC), enabling precise motor control through sophisticated inverter technologies and feedback configurations.
How does the board ensure thermal efficiency during operation?
The component design and materials used facilitate effective heat dissipation, and optional heatsink space is available for users requiring additional thermal management under higher loads.
What type of feedback configuration does this board support?
The board supports both single-shunt and leg-shunt current feedback configurations, providing flexibility in adapting to different motor applications and performance requirements.
What safety measures should be considered when operating this evaluation board?
Users should ensure proper handling of high voltages and allow adequate time for charge dissipation in DC bus capacitors before servicing, in order to mitigate risks of electric shock and equipment damage.
How can this board be integrated with other Infineon components?
This evaluation board can be paired with Infineon control boards, particularly those compatible with M7 connectors, to enhance motor performance evaluations and streamline testing processes.
