STMicroelectronics STEVAL-IOD04KT1 Power Management for L6364W Transceiver, STEVAL-IOD004V1 for L6364W, IIS2MDC,
- RS Stock No.:
- 235-4719
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STEVAL-IOD04KT1
- ผู้ผลิต:
- STMicroelectronics
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB4,172.46
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB4,464.53
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 8 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 2 | THB4,172.46 |
| 3 - 4 | THB4,167.10 |
| 5 + | THB4,161.75 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 235-4719
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STEVAL-IOD04KT1
- ผู้ผลิต:
- STMicroelectronics
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Power Management | |
| Power Management Function | Power Management | |
| For Use With | L6364W, IIS2MDC, ISM330DHCX | |
| Kit Classification | Sensor Board | |
| Featured Device | L6364W Transceiver, STEVAL-IOD004V1 | |
| Kit Name | STEVAL-IOD04KT1 | |
| Standards/Approvals | RoHS | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Power Management | ||
Power Management Function Power Management | ||
For Use With L6364W, IIS2MDC, ISM330DHCX | ||
Kit Classification Sensor Board | ||
Featured Device L6364W Transceiver, STEVAL-IOD004V1 | ||
Kit Name STEVAL-IOD04KT1 | ||
Standards/Approvals RoHS | ||

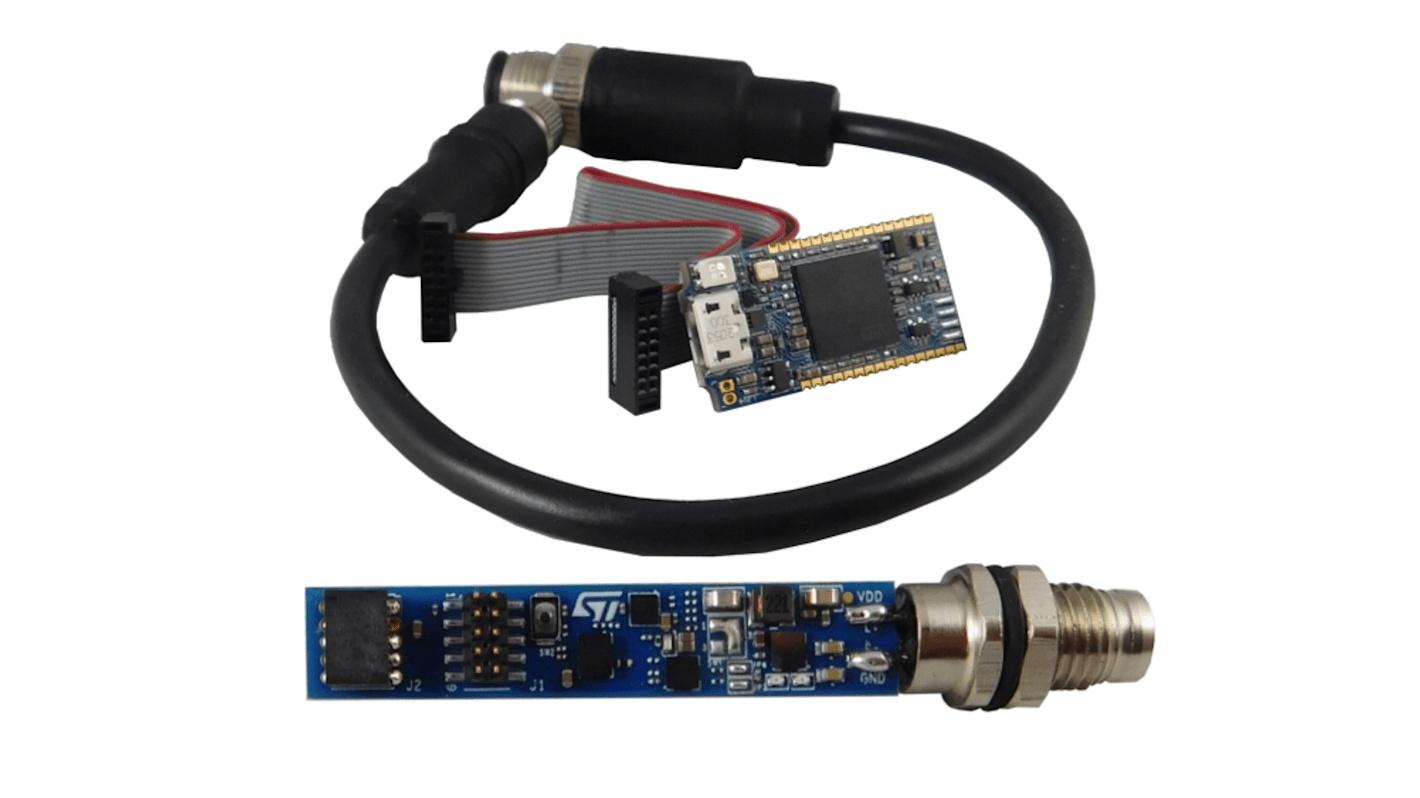

The STMicroelectronics STEVAL-IOD04KT1 is a reference design kit that exploits the features of the L6364W IO-Link dual-channel device transceiver. STEVAL-IOD04KT1 IMAGE The kit consists of the STEVAL-IOD004V1 main board, the STLINK-V3MINI programmer and debugger tool, a 14-pin flat cable, and an M8 to M12 standard industrial connector adapter. The kit acts as a modern smart industrial sensor to be connected to a master IO-Link hub (or a suitable PLC interface). The power supply for the MCU, sensors, and other logic devices derives from the DC-DC converter controller embedded in the L6364W. The on-board STM32G071EB microcontroller runs an IO-Link demo stack v.1.1, which controls the IO-Link communication, and the software code that manages the L6364W transceiver and the MEMS industrial sensors.
Four-pole M8 industrial standard connector
Jumpers for CQ and DIO selection in independent or joint mode
Switch for transmission mode selection
10-pin connector for sensor expansion options
Operating voltage range 7 to 32 V
