Infineon Evaluation Board For EiceDRIVER Half-Bridge Driver for Drives, EV Charger, Motor Control & Drives, UPS

RS Stock No.:: 232-5726
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: EVAL1ED3890MX12MTOBO1
ผู้ผลิต / Manufacturer:: Infineon

Infineon Evaluation Board For EiceDRIVER Half-Bridge Driver for Drives, EV Charger, Motor Control & Drives, UPS

มีส่วนลดเมื่อซื้อจำนวนมาก

ราคา / Price Each**

THB4,410.22

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB4,718.94

(รวมภาษีมูลค่าเพิ่ม)

4 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)*

* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ

ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB3,500.00 (ไม่รวมภาษี)

Units	ต่อหน่วย
1 - 1	THB4,410.22
2 - 2	THB4,322.15
3 +	THB4,235.61

**ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 232-5726
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: EVAL1ED3890MX12MTOBO1
ผู้ผลิต / Manufacturer:: Infineon

Datasheet - EVAL1ED3890MX12MTOBO1

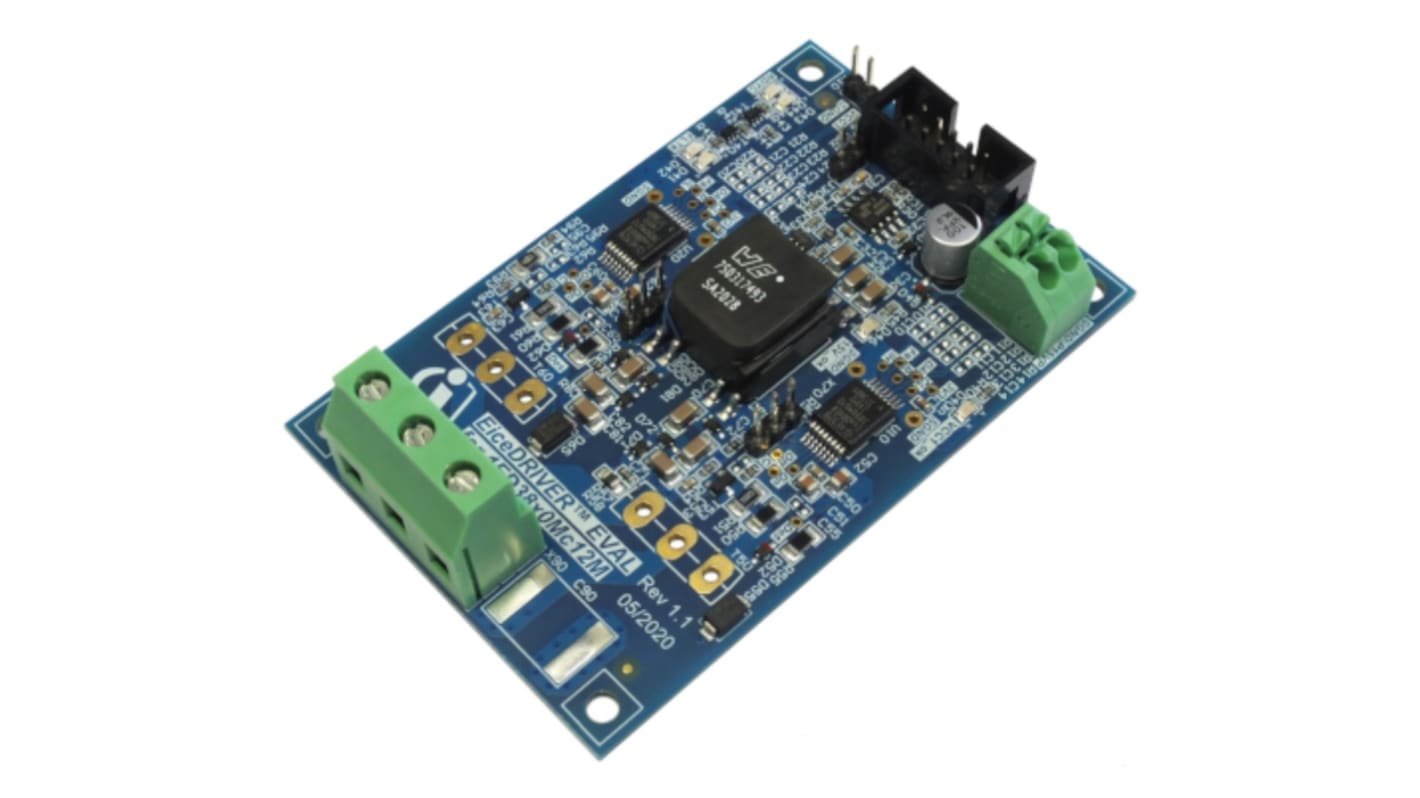

Evaluation board for EiceDRIVER™ X3 single-channel highly flexible isolated gate driver family

The EVAL-1ED3890MX12M is in half-bridge configuration with two gate driver ICs (1ED3890MX12M) to drive power switches such as IGBTs, MOSFETs and SiC MOSFETs. The switch type can be freely chosen. The board has a size of 85 x 85 x 15 mm without any power switch assembled.
The board is best suited to leverage the highly configurable X3 Digital (1ED38xx) family with its rich feature-set. Configuration is performed via I2C bus.
The evaluation board is recommended to be used with a companion microcontroller evaluation board EVAL-1ED38X0DCT to optimize the configuration process.

Summary of Features

I2C bus for parameter adjustment, state and fault feedback, ADC measurements and condition monitoring

Adjustable Clamp/Clamp driver/ADC pin

Two precise VCEsat detection (DESAT2) circuit with fault output, adjustable leading edge blanking time and individually adjustable trigger voltages, filter times

Two-level turn-off (TLTO) with adjustable slopes, plateau time and plateau level

Adjustable soft turn-off after desaturation detection

Adjustable hardware UVLO with hysteresis for IGBTs and MOSFETs on both VCC2 and VEE2 rails with active shutdown

ADC measurement of internal parameters: supply voltages and internal temperature

40 V absolute maximum output supply voltage

± 9 A typical sourcing and sinking gate current capability

High common-mode transient immunity CMTI = 200 kV/μs

Small space-saving DSO-16 fine-pitch package with large creepage distance ( >8 mm)

Gate driver safety certification according to UL 1577 and VDE 0884-11

Benefits

Enables fast design cycles due to low external component count and still offers adjustable DESAT with Soft-off functionality

Best-in-class DESAT accuracy: perfect for all applications requiring reliable short-circuit protection (including SiC MOSFET and IGBT7)

Enables predictive maintenance and rapid prototyping

The precise threshold and timings, combined with UL 1577 and VDE 0884-11 certification enable superior application safety

Perfect fit for all applications requiring a reliable DESAT protection, benefit from an active Miller clamp and prefer small PCB space requirements

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

คุณสมบัติ	Value
Power Management Function	Half-Bridge Driver
For Use With	Drives, EV Charger, Motor Control & Drives, UPS
Kit Classification	Evaluation Board
Kit Name	Evaluation Board For EiceDRIVER
