Microchip dsPIC33CK Low Voltage Motor Control Development Board Motor Controller for dsPIC33CK, dsPIC33CK for Brushless

ดูหมวดหมู่นี้
ไม่พร้อมจำหน่ายในตอนนี้
เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกหรือไม่ RS ตั้งใจที่จะลบสินค้านี้ออกจากกลุ่มผลิตภัณฑ์ในเร็วๆ นี้
RS Stock No.:
215-3934
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
DM330031
ผู้ผลิต:
Microchip
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Microchip

Product Type

Power Management Development Kit

Power Management Function

Motor Controller

For Use With

Brushless DC (BLDC), Permanent Magnet Synchronous Motor (PMSM) and Internal Permanent Magnet (IPM) motor

Kit Classification

Development Board, Development Board

Featured Device

dsPIC33CK, dsPIC33CK

Kit Name

dsPIC33CK Low Voltage Motor Control Development Board

Standards/Approvals

ISO

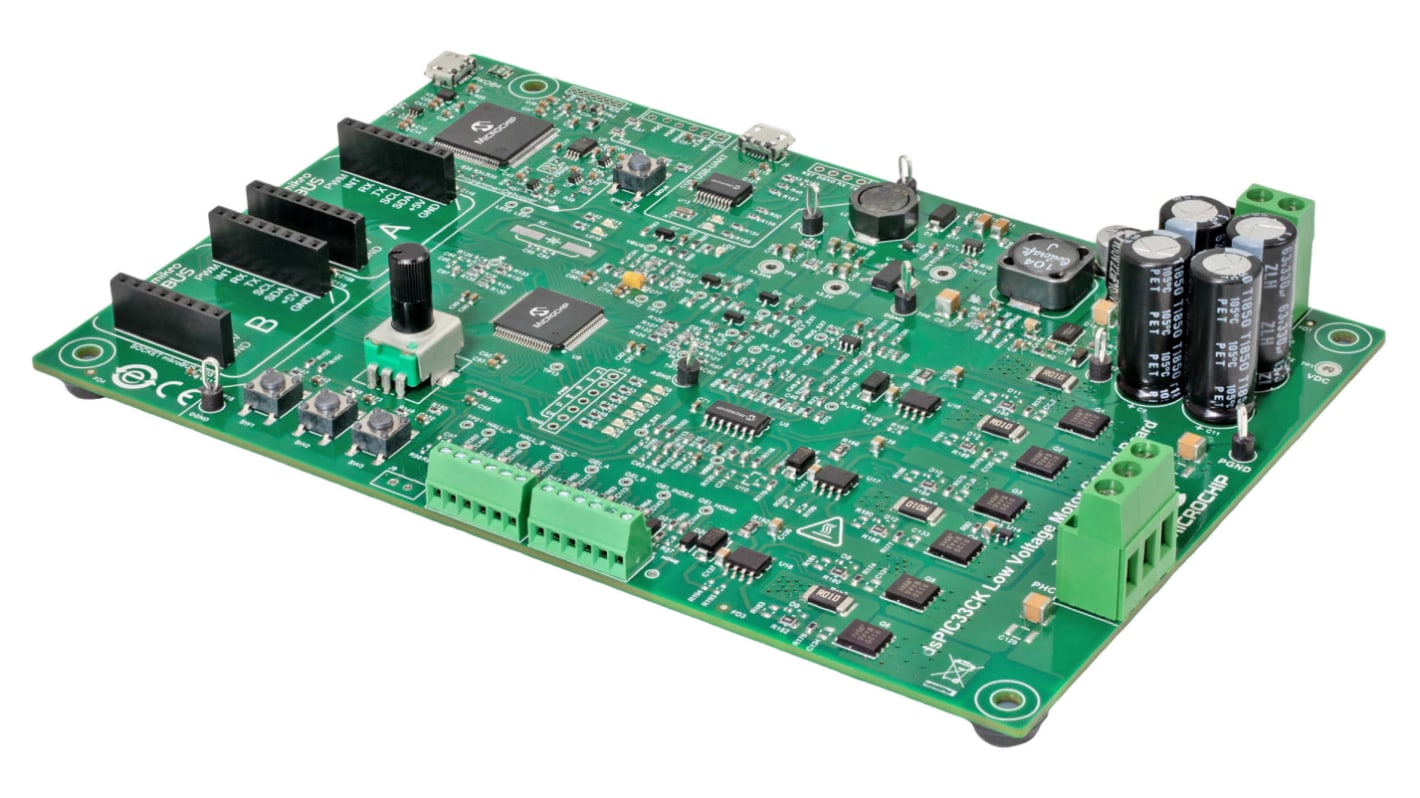

The Microchip dsPIC33CK Low Voltage Motor Control (LVMC) Development Board is a cost-effective rapid development platform for Brushless DC (BLDC), Permanent Magnet Synchronous Motor (PMSM) and Internal Permanent Magnet (IPM) motor control applications. The LVMC development board is ideal to explore and prototype motor control applications that operate from 12 to 48 Volts and up to 10 Amps of continuous current. The board can also support higher current, up to 20 Amps with an optional fan or heatsink. The board supports application development for censored six-step trapezoidal or sinusoidal control with hall sensors, sensor less BEMF measuring phase voltages, or Field Oriented Control (FOC) with single, dual or triple-shunt resistor current sensing circuits. This flexibly in architecture allows you to evaluate various design techniques that suit your application requirements, balancing the cost and performance.

Low-cost development board to prototype low-voltage motor control designs

A complete design serving as a reference to implement your motor control solution using the dsPIC33CK DSC and MIC4605 MOSFET gate drivers in a small form factor

Flexible development board to explore various BLDC/PMSM/IPM commutation techniques:

Supports trapezoidal 6-step control or FOC of BLDC/PMSM/IPM motors

Multiple feedback methods to support both censored and sensor less operation: phase voltage feedback, Hall sensors, optical/magnetic encoders using the QEI, and operation using single, dual or triple low-side current sensing circuits

Signal conditioning circuit using either the on-chip op amps of the dsPIC33CK DSC, or the external op amps located on the LVMC board

PICKit-on-Board (PKoBv4) built into the board creates a standalone development tool, eliminating the need for an external programmer or debugger
