STMicroelectronics Evaluation Board for SRK2001 Adaptive Synchronous Recti Fication Controller Resonant Converter for

ดูหมวดหมู่นี้
ไม่พร้อมจำหน่ายในตอนนี้
ขออภัย เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกเมื่อใด
RS Stock No.:
175-0675
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
EVL-SRK2001-HVS
ผู้ผลิต:
STMicroelectronics
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

STMicroelectronics

Power Management Function

Resonant Converter

For Use With

SRK2001

Kit Classification

Evaluation Board

Featured Device

EVL-SRK2001-HVS

Kit Name

Evaluation Board for SRK2001 Adaptive Synchronous Recti Fication Controller

COO (Country of Origin):
IT

STMicroelectronics EVL-SRK2001-HVS Evaluation Board

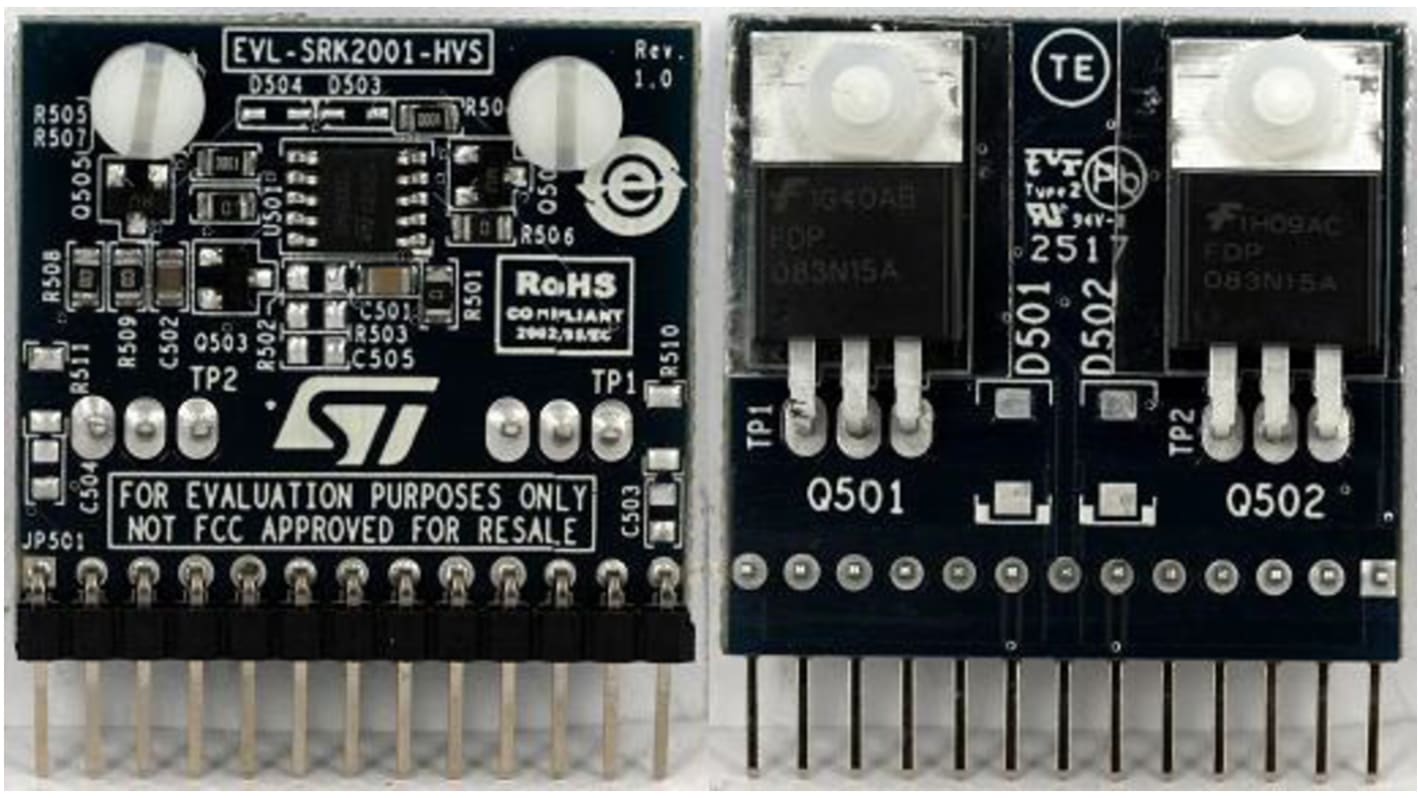

The STMicroelectronics EVL-SRK2001-HVS evaluation board for the SRK2001 synchronous rectification controller is suitable for LLC converter applications with higher output voltage (up to 48 V), because of the use of external sensing MOSFETs in series with DVS1, 2 pins. An external VCC voltage (12V, max. 20V) is required to supply the IC. The SRK2001 implements a control scheme for secondary-side synchronous rectification in LLC resonant converters using a transformer with a centre-tap secondary winding for full-wave rectification.

Features and Benefits


• Dual gate drive for N-channel MOSFETs
• External high voltage sensing MOSFETs and TO220 SR MOSFETs (6.85mΩ 150V rated) for application with output voltages up to 48V
• Max. Frequency: 500kHz
• Synchronous rectifier for LLC resonant converter with adaptive turn-on and turn-off

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
