SMC Pneumatic Guided Cylinder - 20mm Bore, MGPL Series, 50 mm Double Acting Acting

ดูหมวดหมู่นี้

ยอดรวมย่อย (1 ชิ้น)*

THB19,228.86

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB20,574.88

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • 7 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น
ต่อหน่วย
1 +THB19,228.86

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
237-3532
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
MGPL20TF-50Z
ผู้ผลิต:
SMC
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

SMC

Product Type

Pneumatic Guided Cylinder

Bore Diameter

20mm

Series

MGPL

Action Type

Double Acting

Maximum Operating Pressure

1 Mpa

Cushioning Type

Rubber Bumper

Body Material

Aluminium Alloy

Piston Rod Thread Standard

G

Maximum Piston Speed

500mm/s

Rod Type

Double Acting

Minimum Operating Temperature

-10°C

Guide Type

Ball Bushing

Maximum Operating Temperature

60°C

Standards/Approvals

No

Weight

850g

Stroke Length

50mm

COO (Country of Origin):
JP

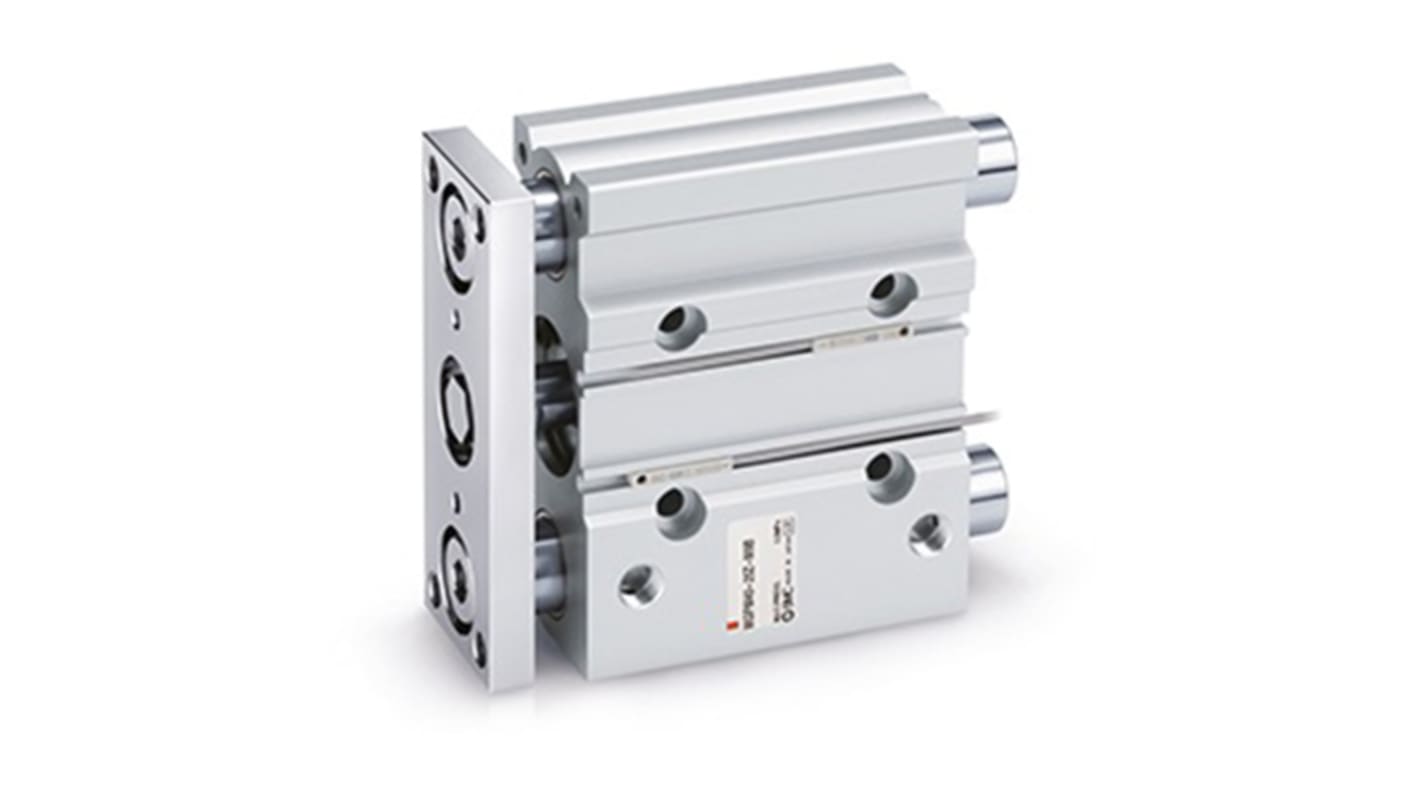

SMC MGPL Series Compact Guide Cylinder, 20mm Bore size, 50mm Stroke Length - MGPL20TF-50Z


This Compact guide cylinder provides guided linear motion for automation and mechanical systems, delivering controlled double-acting actuation with integrated guidance. It is built for moderate-duty pneumatic tasks where space is limited and consistent alignment is required, offering a low-profile solution for repetitive positioning and force transmission in industrial applications.

Features and Benefits:


• 20mm bore delivers Compact pneumatic force for confined installations
• 50mm stroke offers short-travel positioning for precise operations
• Rubber bumpers on both ends reduce impact and noise at travel limits
• Ball bushing guide ensures smooth lateral stability during motion
• Aluminium alloy body minimises mass for easier mounting and handling
• Rated to 1MPa for use under moderate system pressures

Applications


• Suitable for pick-and-place modules in assembly lines
• Ideal for end-of-arm tooling requiring guided actuation
• Used for precise switch or sensor actuation in control panels
• Can be used for alignment tasks in electronics manufacturing
• Suitable for jigs and fixtures needing consistent linear guidance

What operating temperatures can be expected for routine use?


It functions within a -10°C to 60°C range, allowing use in many factory and workshop environments without special heating or cooling.

How quickly can the piston reciprocate for cyclic operations?


The design supports piston speeds up to 500mm/s, enabling relatively Rapid repeat cycles where short strokes are required.

What thread type is provided for attaching end fittings?


The rod is specified with a G-thread standard to accommodate compatible pneumatic rod-end attachments.

How heavy is the unit for considerations of payload or counterbalance?


The component mass is 0.85 kg, which assists in calculating overall moving mass for servos or balancing systems.

What cushioning approach is used to protect components at end-of-stroke?


Impact energy is mitigated by rubber bumpers fitted at both ends to extend service life of linked hardware.
