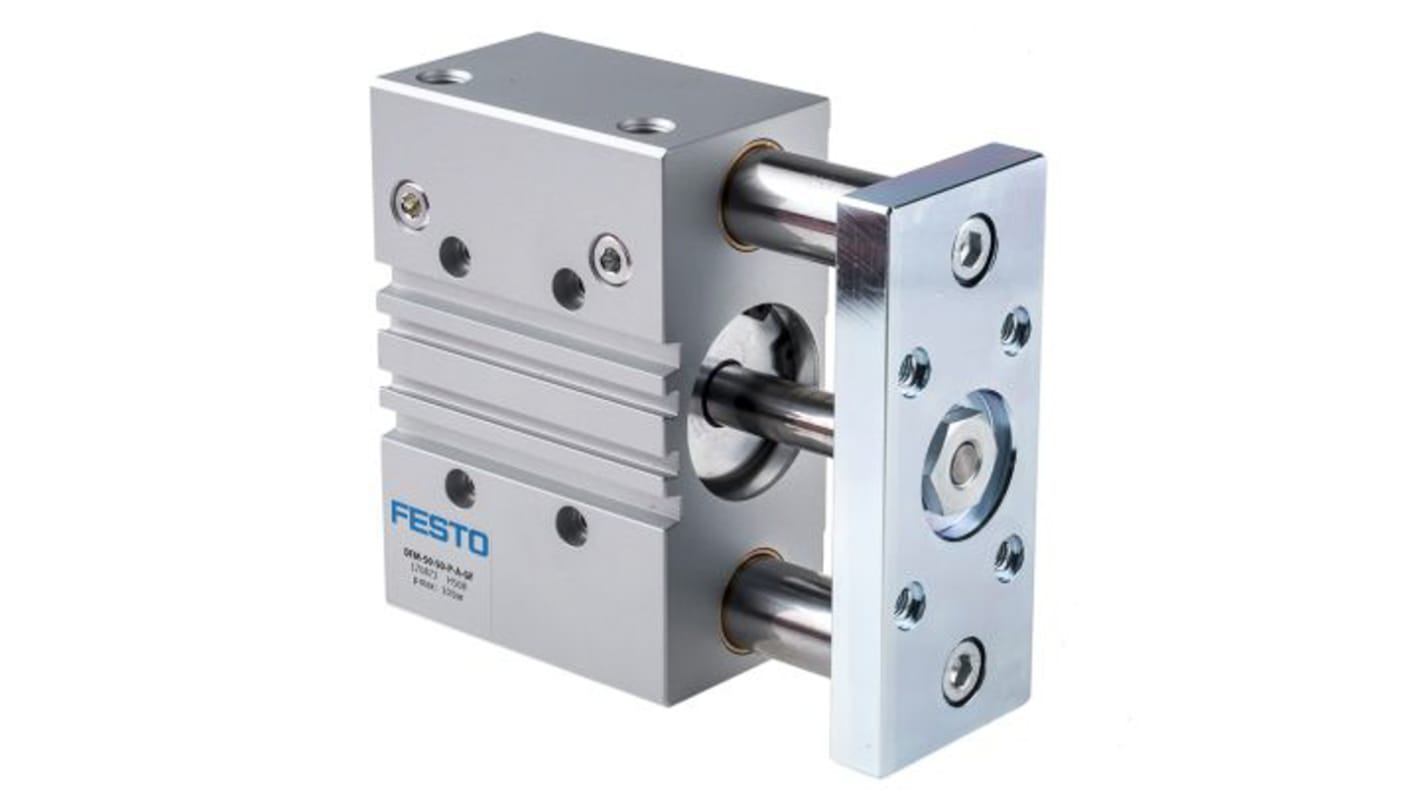

Festo Pneumatic Guided Cylinder - 170874 50mm Bore, DFM Series, 100 mm Double Acting Acting
- RS Stock No.:
- 121-5455
- Distrelec หมายเลขบทความ:
- 301-68-493
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DFM-50-100-P-A-GF
- ผู้ผลิต:
- Festo
ยอดรวมย่อย (1 ชิ้น)*
THB16,356.63
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB17,501.59
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 8 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB16,356.63 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 121-5455
- Distrelec หมายเลขบทความ:
- 301-68-493
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DFM-50-100-P-A-GF
- ผู้ผลิต:
- Festo
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Diameter | 50mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Mount Type | Flat, Side, Through Hole | |
| Maximum Operating Pressure | 10 bar | |
| Cushioning Type | Elastomer | |
| Body Material | Anodised Wrought Aluminium Alloy | |
| Guide Type | Plain Bearing, Ball Bearing | |
| Maximum Piston Speed | 0.8mm/s | |
| Minimum Operating Temperature | -20°C | |
| Piston Rod Thread Size | 1/4 in G | |
| Rod Type | Single | |
| Maximum Operating Temperature | 80°C | |
| Width | 148mm | |
| Weight | 5.4kg | |
| Standards/Approvals | ISO 1179-1, ISO 228-1, RoHS | |
| Height | 64mm | |
| Stroke Length | 100mm | |
| Length | 214mm | |
| Model Number | 170874 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Diameter 50mm | ||
Series DFM | ||
Action Type Double Acting | ||
Mount Type Flat, Side, Through Hole | ||
Maximum Operating Pressure 10 bar | ||
Cushioning Type Elastomer | ||
Body Material Anodised Wrought Aluminium Alloy | ||
Guide Type Plain Bearing, Ball Bearing | ||
Maximum Piston Speed 0.8mm/s | ||
Minimum Operating Temperature -20°C | ||
Piston Rod Thread Size 1/4 in G | ||
Rod Type Single | ||
Maximum Operating Temperature 80°C | ||
Width 148mm | ||
Weight 5.4kg | ||
Standards/Approvals ISO 1179-1, ISO 228-1, RoHS | ||
Height 64mm | ||
Stroke Length 100mm | ||
Length 214mm | ||
Model Number 170874 | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Guided Cylinder, Yoke Operating Mode, G1/4 Port Connection - DFM-50-100-P-A-GF
Reaching for a device to carry out lifting, clamping and stopping tasks in your pneumatic setup? Grab this pneumatic guided cylinder from Festo for the job. It offers precision control thanks to its double-acting design that uses twice the airflow of its single-acting counterparts. The unit's endpoints are protected by elastomer cushions that reduce collision energy to 1Nm for durability. A rapid 0.6ms operating time provides instant actuation to boost your productivity.
Features & Benefits
• Regulation 50mm bore and 100mm stroke for wide system compatibility
• Reliable performance in low temperatures of -20°C through to +80°C
• Operates in pressures between 1 and 10 bar for versatility
• Typical 1178N advance stroke at a theoretical force of 6 bar to make shifting heavy loads easier
Applications
• Aerospace engineering
• Automotive manufacture
• Recycling plants
What are the dimensions of this pneumatic guided cylinder?
It has compact dimensions of 214 (L) x 148 (W) x 64mm (H), so it's ideal for space-tight areas.
How much does this device weigh?
A handy weight of 5.4kg means it doesn't add excess load and strain to your infrastructure.
