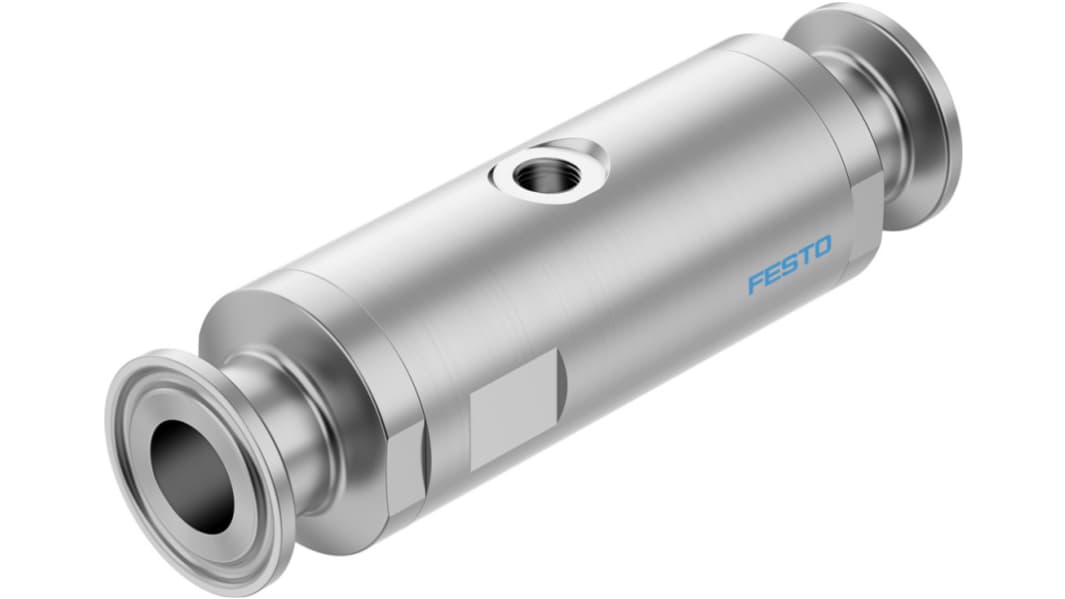

Festo VZQA Series Pinch Valve Pinch Valve, 3022833, Inlet Female, Tube NPT 15 mm, Outlet Female NPT 15 mm

ดูหมวดหมู่นี้
มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 ชิ้น)*

THB15,150.76

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB16,211.31

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • 1 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น
ต่อหน่วย
1 - 4THB15,150.76
5 - 9THB14,771.95
10 +THB14,402.67

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
121-5793
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
VZQA-C-M22U-15-S5S5-V4V4E-4
ผู้ผลิต:
Festo
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Festo

Product Type

Pinch Valve

Inlet Connection Type

Tube

Sub Type

Pinch Valve

Inlet Connection Size

15 mm

Outlet Connection Size

15 mm

Series

VZQA

Inlet Thread Standard

NPT

Maximum Operating Pressure

4 bar

Inlet Port Gender

Female

Outlet Port Gender

Female

Material

High Alloy Stainless Steel

Minimum Operating Temperature

-5°C

Outlet Thread Standard

NPT

Maximum Operating Temperature

60°C

Standards/Approvals

RoHS Compliant

Hazardous Area Certification

NO

Minimum Operating Pressure

0bar

Proof Pressure

16bar

Model Number

3022833

COO (Country of Origin):
DE

Festo VZQA Series Pinch Valve, 15mm Tube Inlet Port, 4 bar Maximum Outlet Pressure - VZQA-C-M22U-15-S5S5-V4V4E-4, Numeric Part Number: 3022833


This pinch valve is pneumatically actuated and designed for precise control of airflow and fluid motion. The valve features a tube inlet measuring 15mm, making it suitable for various applications requiring compact yet effective solutions. Crafted from high-alloy stainless steel, it ensures durability and resistance to corrosion.

Features & Benefits


• Soft sealing principle enhances tightness and performance

• Operating pressure ranges from 0.1 MPa to 0.65 MPa

• Equipped with a reversible flow direction for flexibility

• Suitable for media temperatures from -5°C to 100°C

• Efficient flow rate of 5m³/h for optimal performance

Applications


• Used for controlling compressed air in automation systems

• Ideal for fluids in food processing

• Designed for operation in industrial environments

• Utilised in production processes of Li-ion batteries

• Effective in pneumatic control systems for machinery

What is the burst pressure rating for this valve and how does it impact its use?


The burst pressure is rated at 1.6 MPa, or 16 bar, allowing it to handle high-stress conditions without failure, making it suitable for demanding applications.

Can this valve function effectively under vacuum conditions?


Yes, it has undergone testing for vacuum applications up to -0.09 MPa, but a counter-vacuum may be necessary on the control side to maintain media flow depending on the setup.

What types of pilot media are compatible with this product?


The valve is designed to receive compressed air in accordance with ISO 8573-1, ensuring optimal performance in pneumatic systems.

What is the weight of this valve and how important is it for installation?


Weighing 559g, it is manageable for in-line installations, ensuring minimal impact on system dynamics while being easy to handle during setup.

FESTO VZQA Pneumatic Pinch Valves


The VZQA pneumatic actuated pinch valve is a 2 way valve fitting and is used for controlling the flow of different materials in the tubing or pipe. The valve is either open or closed, both ensure that there is minimum flow resistance and help prevent the fitting becoming blocked or clogged up.

An open valve enables free flowing material, however the sleeve will close when the fitting is pressurised, therefore shutting off the flow in the tube or pipe. This is ideal for shutting off liquids containing solid particles or solid materials.

A closed valve will open when the valve is pressurised, which releases the flow of material in the tube or pipe, and then will close again when the pressure stops due to the spring in the fitting. This valve is ideal for use with liquid or gases such as air.

Features and Benefits


• Normally open (N/O) and normally closed (N/C) options

• Simple and easy to install

• Pneumatic fittings valve

• Easy to clean hygienic design

• Elastomer pinch valve sleeve shut off

• Sealing cartridge can be replaced without specialist tools

• Multiple connector variants

• Stainless steel and aluminium housing

• End cap available for demanding applications
