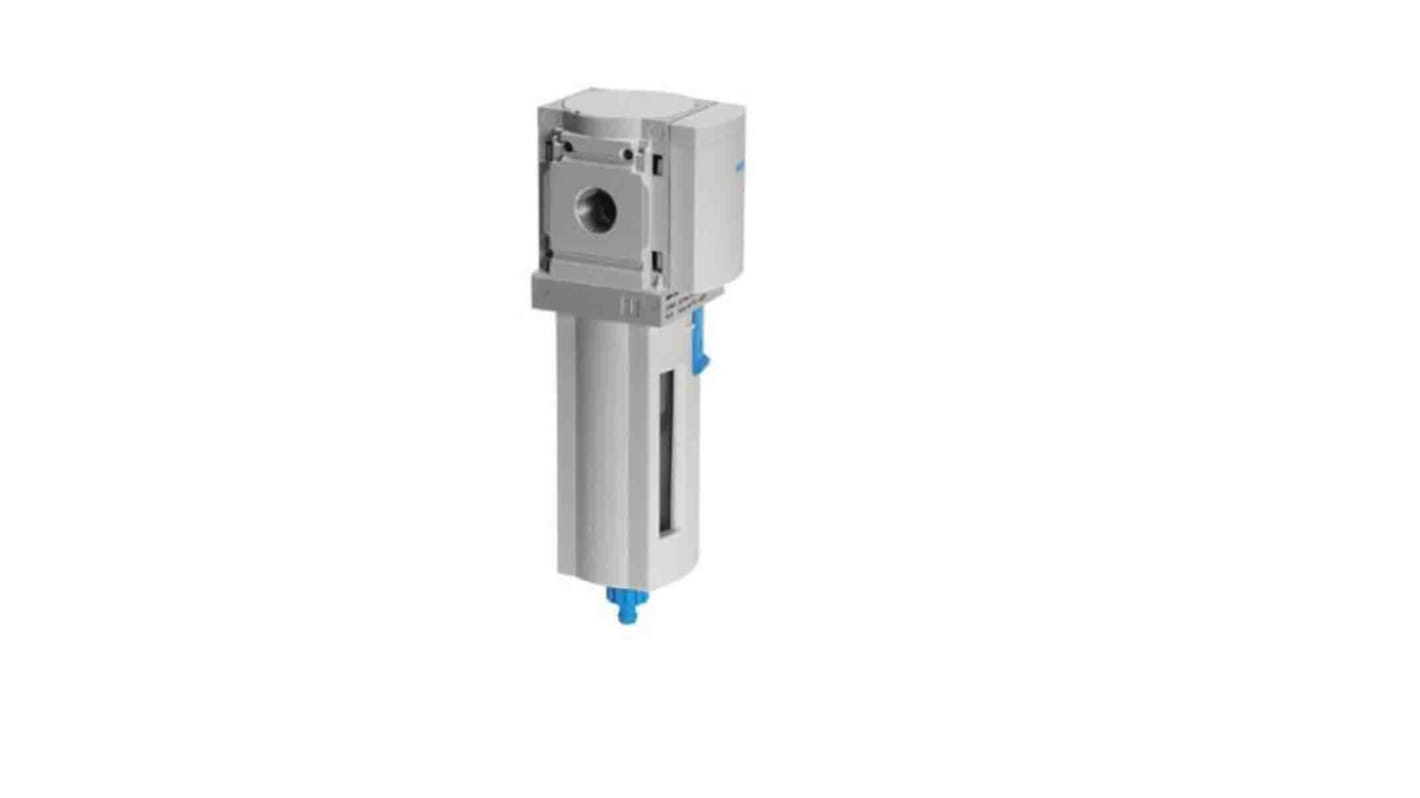

Festo MS series 0.01 μm 1/4 in G 14 bar Pneumatic Filter 360 L/min max with Manual drain

RS Stock No.:: 202-3441
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: MS4-LFM-1/4-ARM-Z
ผู้ผลิต:: Festo

Festo MS series 0.01 μm 1/4 in G 14 bar Pneumatic Filter 360 L/min max with Manual drain

ยอดรวมย่อย (1 ชิ้น)*

THB3,021.28

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB3,232.77

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อกของผู้ผลิต

พร้อมส่งจากวันที่ 07 ตุลาคม 2569

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB3,021.28

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 202-3441
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: MS4-LFM-1/4-ARM-Z
ผู้ผลิต:: Festo

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Festo
	Filtration Size	0.01μm
	Product Type	Pneumatic Filter
	Port Size	1/4 in G
	Drain Type	Manual
	Series	MS
	Maximum Flow Rate	360L/min
	Seal Material	Nitrile Rubber (NBR)
	Maximum Operating Pressure	14 bar
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	RoHS
	Filter Type	Fibre
	Model Number	529460
	Bowl Material	Plastic

	เลือกทั้งหมด
	Brand Festo
	Filtration Size 0.01μm
	Product Type Pneumatic Filter
	Port Size 1/4 in G
	Drain Type Manual
	Series MS
	Maximum Flow Rate 360L/min
	Seal Material Nitrile Rubber (NBR)
	Maximum Operating Pressure 14 bar
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 60°C
	Standards/Approvals RoHS
	Filter Type Fibre
	Model Number 529460
	Bowl Material Plastic

COO (Country of Origin):: HU

Festo Series MS Pneumatic Filter, 0.01 μm Filtration size, 360 L/min Maximum Flow Rate - MS4-LFM-1/4-ARM-Z, Numeric Part Number: 529460

This pneumatic filter is designed to provide highly efficient filtration for compressed air and inert gases, featuring a filtration size of 0.01μm. Constructed with a robust plastic bowl, this filter operates effectively within a temperature range of -10°C to +60°C and accommodates an operating pressure of up to 14 bar. Its in-line installation ensures ease of integration into various pneumatic systems.

Features & Benefits

• Maximum standard flow rate of 360 L/min for optimal performance

• Manual drain mechanism simplifies maintenance operations

• Designed for a maximum condensate volume of 19ml

• Inert to moderate corrosion stress, ensuring long-lasting protection

Applications

• Suitable for pneumatic systems requiring high air purity

• Effective in food processing facilities for air filtration

• Ideal for in automation and machinery maintenance

• Used in environments necessitating stringent filtration standards

What type of materials are used in the construction of this filter?

The housing is made from die-cast aluminium, while the filter media is composed of borosilicate fibre, ensuring durability and chemical resistance. Additionally, the bowl is made of plastic, with seals crafted from NBR for reliable performance.

How does the manual drain functionality enhance ease of use?

The manually rotating condensate drain allows for straightforward removal of accumulated moisture without the need for additional tools, facilitating regular maintenance and ensuring optimal filter efficiency.

What air quality standards does it meet for compressed air applications?

The filter delivers air purity to the ISO 8573-1:2010 standard, ensuring that the output meets high specifications for cleanliness and safety during industrial use.

What is the significance of the filtration size and efficiency ratings?

With a filtration size of 0.01μm and efficiency ratings exceeding 99.9999%, this filter effectively removes fine particles, oil aerosols, and contaminants, maintaining high quality in pneumatic systems, thus prolonging equipment life and enhancing operational reliability.
