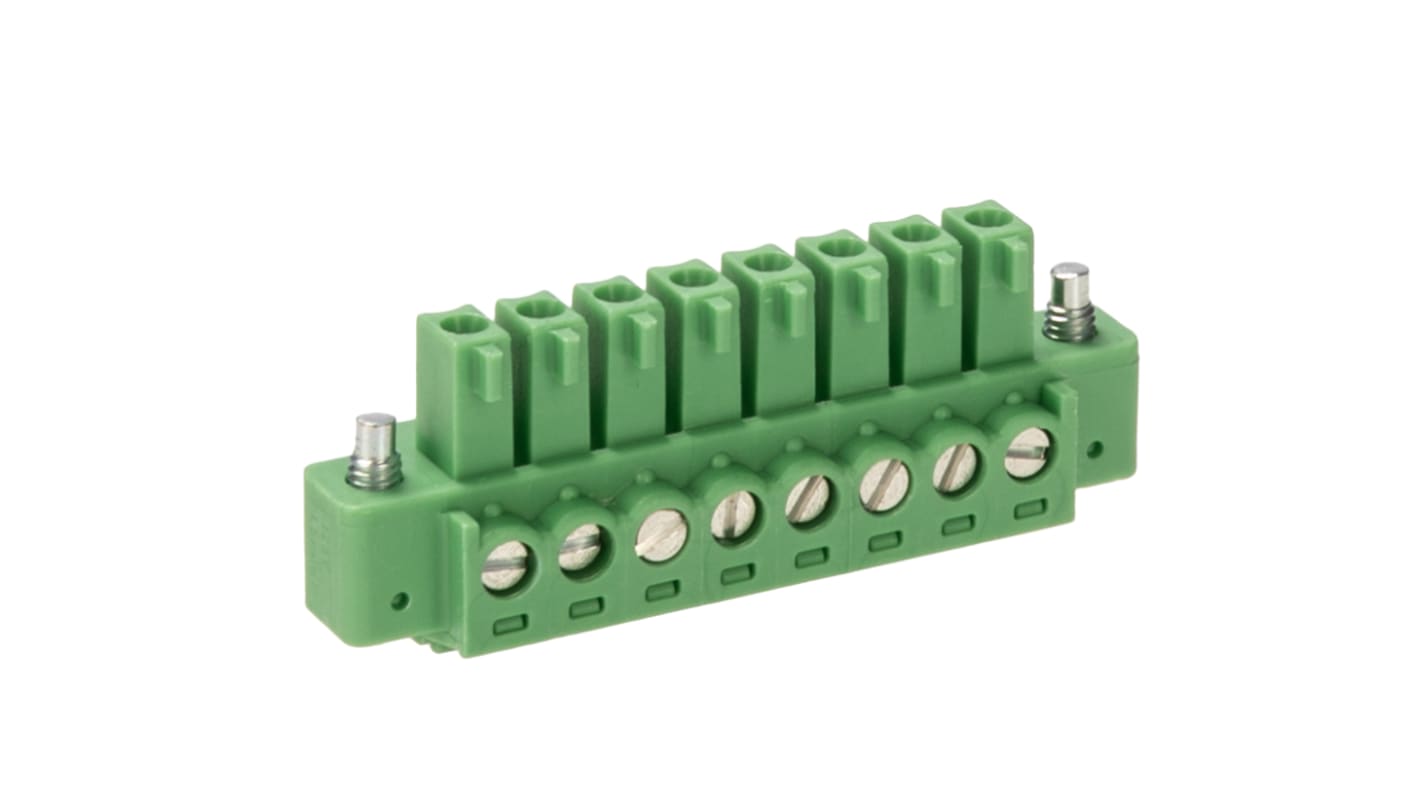

Phoenix Contact, 3.81mm Pitch, 8 Way, , Pluggable Terminal Block, Plug, Cable Mount, Screw Termination, 1827761

RS Stock No.:: 804-2548
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 1827761
ผู้ผลิต / Manufacturer:: Phoenix Contact

Phoenix Contact, 3.81mm Pitch, 8 Way, , Pluggable Terminal Block, Plug, Cable Mount, Screw Termination, 1827761

มีส่วนลดเมื่อซื้อจำนวนมาก

ราคา / Price Each

THB341.94

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB365.88

(รวมภาษีมูลค่าเพิ่ม)

95 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)*

* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ

ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB3,500.00 (ไม่รวมภาษี)

Units	ต่อหน่วย
1 - 12	THB341.94
13 - 24	THB333.38
25 +	THB328.24

RS Stock No.:: 804-2548
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 1827761
ผู้ผลิต / Manufacturer:: Phoenix Contact

ล็อกอินเพื่อดูโมเดล CAD

Phoenix Contact MINI COMBICON MC 3.81mm Pitch Terminal Block Plug Connectors

MINI COMBICON MC 3.81mm pitch mini plug-in cable mount terminal block connectors with a 0.14 - 1.5mm² screw connection and a horizontal wire entry.
MC Part numbers prefixed with 1827, 1848 and 1892 have a screw flange (MC 1,5 - STF)
Stock number 802-6296 has a pull-out aid
Stock numbers 804-2377, 804-2311 and 804-5124 have gold plated contacts
For marker card see stock number 648-5508
For screwdriver see stock number 390-9663
For cable housings see stock numbers 742-7409 and 804-2743

MINI COMBICON MC 3.81mm Features and Benefits:

• Maximum reliability due to high quality materials
• 3.81mm pitch
• Screw connection with termination device to help prevent loosening of wire in high vibration
• Copper alloy contact material with tin plated terminal points
• -40°c to +70°c operating temperatures
• Height of only 8mm above the board for a small compact fit

These connectors use a M2 slotted (L) screw. If you need a screwdriver, check out “125-3078”

Other accessories:
• Marker cards – 648-5508
• Cable housing – 742-7409

Approvals

UL (E60425); CSA (LR13631)

Phoenix Contact MC 1.5/8-STF-3.81 Series Pluggable Terminal Block, 3.81mm Pitch, Screw Termination Method - 1827761

This pluggable terminal block ensures dependable electrical connections across various applications. It is tailored for professionals in automation, electronics, and electrical sectors, facilitating efficient power distribution and simple installation. Its compact design enhances integration into PCB layouts, making it an important component for connectivity solutions.

Features & Benefits

• Eight contacts enable diverse wiring options
• 3.81mm pitch supports compact installations
• Screw terminal connection provides secure and stable connections
• Polyamide housing ensures durability and thermal resistance
• Rated for 8A current, fitting for a range of applications
• Green colour assists in easy identification during assembly

Applications

• Connecting control systems with PCB layouts
• Interfacing with automation equipment
• Custom machinery that requires electrical connections
• Panel building for effective cable management
• Circuit boards needing reliable, replaceable connections

What conductor types can be used with this terminal?

It accommodates both rigid and flexible conductors up to 1.5mm².

How is the installation process for this product?

The terminal block features a screw connection for straightforward mounting.

What is the recommended torque when tightening connections?

Utilise a tightening torque of 0.3Nm for optimal performance.

Can it handle high temperatures during operation?

It operates effectively in ambient temperatures ranging from -40 to 100°C.

คุณสมบัติ	Value
Pluggable Terminal Block Type	Plug
Number of Contacts	8
Pitch	3.81mm
Series	MC 1.5/8-STF-3.81
Number of Rows	1
Body Orientation	Straight
Mounting Type	Cable Mount
Termination Method	Screw
Current Rating	8A
Voltage Rating	320 V
Colour	Green
Wire Size	28 → 16 AWG
Material	Polyamide
Contact Plating	Tin
Contact Material	Copper Alloy
