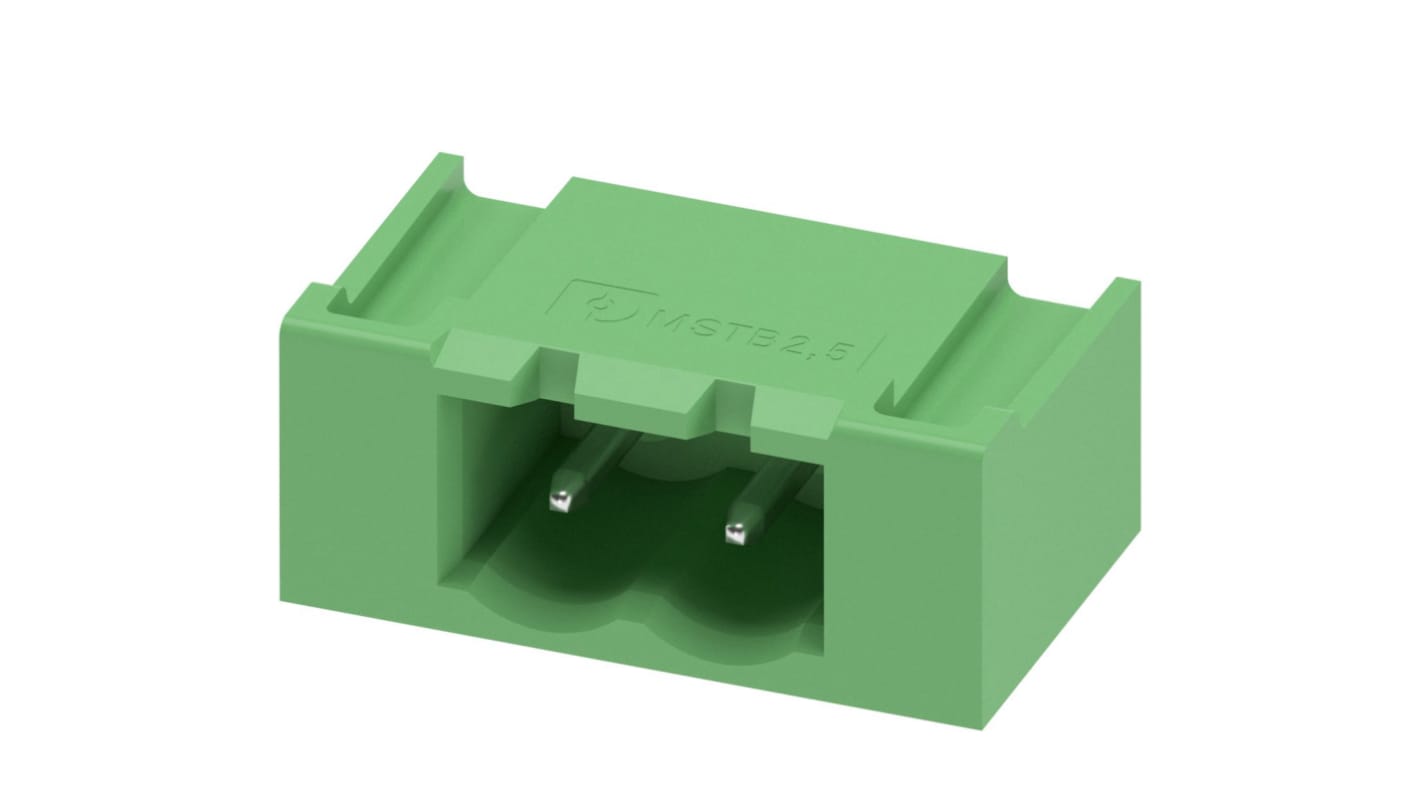

Phoenix Contact COMBICON Control Series Pluggable Terminal Block, 2-Contact, 5.08 mm Pitch, 1 Row, 1809076
- RS Stock No.:
- 792-3452
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 1809076
- ผู้ผลิต:
- Phoenix Contact
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 แพ็ค แพ็คละ 10 ชิ้น)*
THB339.30
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB363.10
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น | ต่อหน่วย | ต่อแพ็ค* |
|---|---|---|
| 10 - 990 | THB33.93 | THB339.30 |
| 1000 - 4990 | THB32.576 | THB325.76 |
| 5000 + | THB31.222 | THB312.22 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 792-3452
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 1809076
- ผู้ผลิต:
- Phoenix Contact
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 2 | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 12A | |
| Housing Material | Polybutylene Terephthalate | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 2.5mm² | |
| Orientation | Straight | |
| Wire Connection Method | Screw | |
| Colour | Green | |
| Voltage | 400V | |
| Series | COMBICON Control | |
| Width | 20.32mm | |
| Standards/Approvals | EU REACH SVHC, cULus, EU RoHS, CHINA RoHS, CSA | |
| Length | 12mm | |
| Depth | 11.8mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 2 | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 12A | ||
Housing Material Polybutylene Terephthalate | ||
Connector Gender Male | ||
Maximum Wire Size mm² 2.5mm² | ||
Orientation Straight | ||
Wire Connection Method Screw | ||
Colour Green | ||
Voltage 400V | ||
Series COMBICON Control | ||
Width 20.32mm | ||
Standards/Approvals EU REACH SVHC, cULus, EU RoHS, CHINA RoHS, CSA | ||
Length 12mm | ||
Depth 11.8mm | ||
- COO (Country of Origin):
- DE
Phoenix Contact CLASSIC COMBICON MSTBA 5.08mm Terminal Block Headers
The MSTBA connectors from Phoenix Contact are from their COMICON range that is very well known for its simplicity but brilliant quality. These connectors feature multiple connection technologies so you can have maximum versatility to use one header for all applications. Not to mention, these connectors can come either in a right-angle orientation or straight orientations for maximum options. MSTBA connectors feature a closed contour to help ensure the plug-in connector has good stability.
The connectors are 5.08mm pitched, have tin-plated surfaces and are designed to be wave soldered onto PCB's.
Features and benefits:
