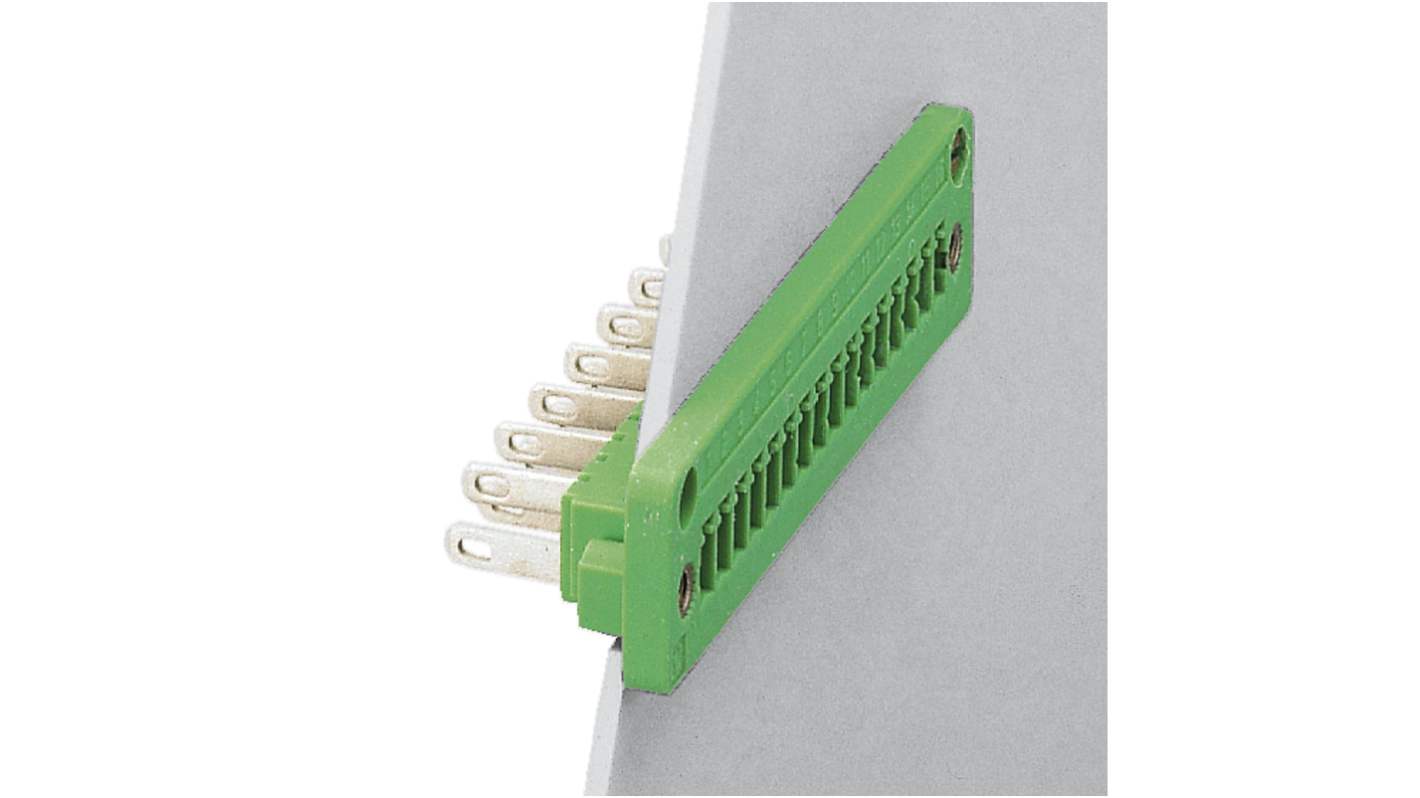

Phoenix Contact, 3.81mm Pitch, DFK-MC 1.5/16-GF-3.81, 16 Way, , Pluggable Terminal Block, Feed Through Header, Panel

Do you need a simple way to join multiple wires to a printed circuit board (PCB)? This feed-through terminal block from future-focused manufacturer Phoenix Contact provides an insulated connection for up to 16 wires. The contact surfaces are made of tin, which increases resistance to rust and oxidisation and helps maintain reliable electrical conductivity for longer. The distinctive green polyamide block material is flame-retardant and reliably insulating for improved safety.
The terminal block can be panel mounted to create a secure fit that reduces strain on the joining wires. You can choose between a permanent solder or a slip-on connection that gives you the flexibility to make changes.
Use PCB blocks like this in a wide range of situations, such as industrial control systems and automation applications where several connections are needed at any one time.

• Straight body orientation
• Current rating of 8 A
• Dimensions of 16.2 (length) x 75.35 (width) x 20.4 mm (depth)
• Pitch of 3.81 mm
• Male gender
• 16 contacts
• 1 row
• Pole format of 16P
• Feed-through header type
• Voltage rating of 320 V

Feed-through header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 16, pitch: 3.81 mm, connection method: Solder/Slip-on connection, colour: green, contact surface: Tin, mounting: Direct mounting
