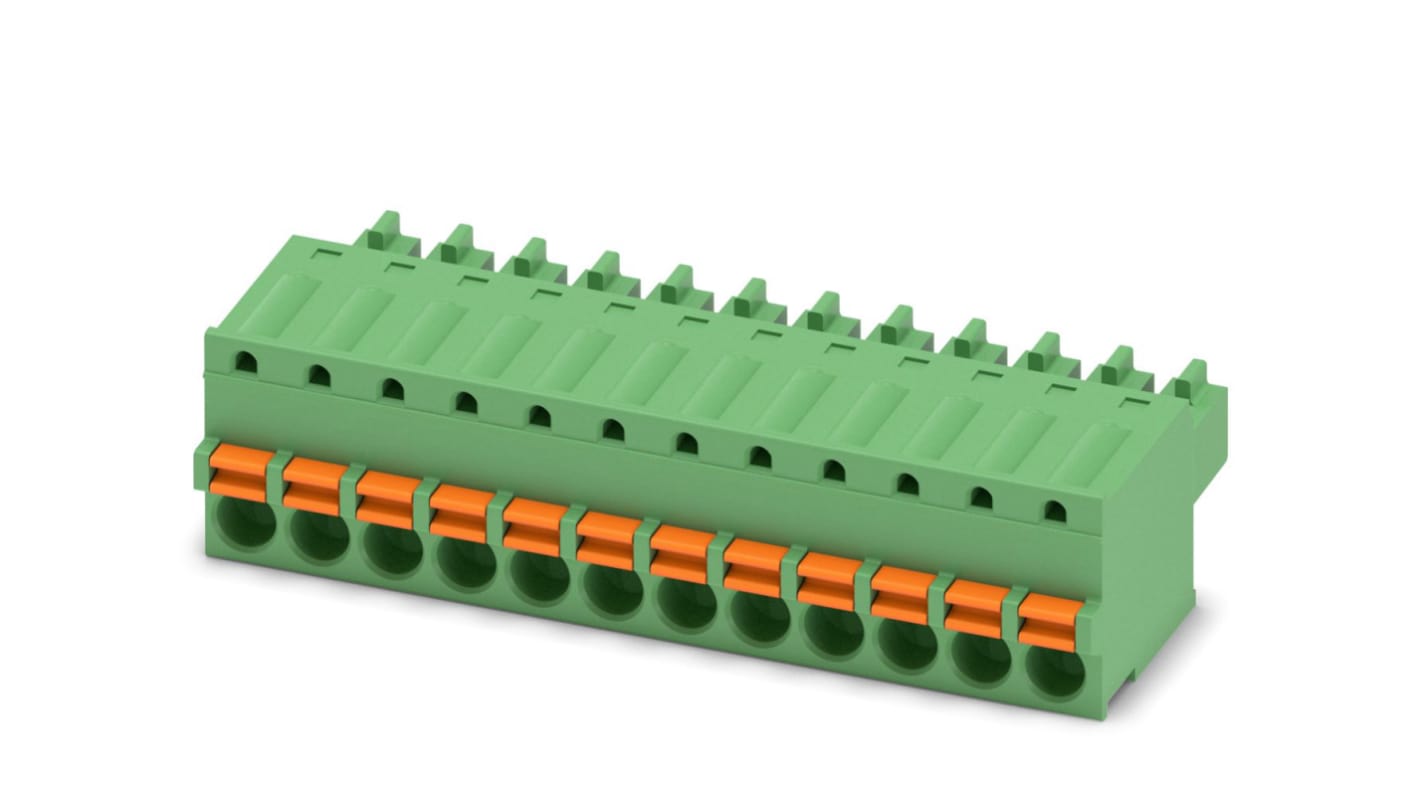

Phoenix Contact, 3.81mm Pitch, FK-MCP 1.5/12-ST-3.81, 12 Way, , Pluggable Terminal Block, Plug, Cable Mount, Spring

RS Stock No.:: 176-1467
หมายเลขชิ้นส่วนของผู้ผลิต:: 1851148
ผู้ผลิต:: Phoenix Contact

Phoenix Contact, 3.81mm Pitch, FK-MCP 1.5/12-ST-3.81, 12 Way, , Pluggable Terminal Block, Plug, Cable Mount, Spring

มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 ชิ้น)*

THB614.44

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB657.45

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

23 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 - 12	THB614.44
13 - 24	THB599.08
25 +	THB589.86

*price indicative

RS Stock No.:: 176-1467
หมายเลขชิ้นส่วนของผู้ผลิต:: 1851148
ผู้ผลิต:: Phoenix Contact

ข้อมูลทางเทคนิค

Technical data sheets

Legislation and Compliance

Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Phoenix Contact
	Pluggable Terminal Block Type	Plug
	Number of Contacts	12
	Pitch	3.81mm
	Series	FK-MCP 1.5/12-ST-3.81
	Number of Rows	1
	Body Orientation	Straight
	Mounting Type	Cable Mount
	Termination Method	Spring Cage
	Current Rating	8A
	Voltage Rating	320 V
	Colour	Green
	Wire Size	26 → 16 AWG
	Contact Material	Copper Alloy
	Contact Plating	Tin
	Material	Polyamide

	เลือกทั้งหมด
	Brand Phoenix Contact
	Pluggable Terminal Block Type Plug
	Number of Contacts 12
	Pitch 3.81mm
	Series FK-MCP 1.5/12-ST-3.81
	Number of Rows 1
	Body Orientation Straight
	Mounting Type Cable Mount
	Termination Method Spring Cage
	Current Rating 8A
	Voltage Rating 320 V
	Colour Green
	Wire Size 26 → 16 AWG
	Contact Material Copper Alloy
	Contact Plating Tin
	Material Polyamide

ล็อกอินเพื่อดูโมเดล CAD

COO (Country of Origin):: DE

Phoenix Contact FK-MCP 1.5/12-ST-3.81 Series Pluggable Terminal Block, 3.81mm Pitch, Spring Cage Termination Method - 1851148

This pluggable terminal block is suitable for high-current applications, offering dependable connections crucial for automation and electrical systems. Its sturdy green polyamide housing guarantees durability and efficiency across diverse electrical setups. Designed for user-friendly integration, this component is a common choice in both industrial and commercial environments.

Features & Benefits

• Push-in spring connection enables quick, tool-free wiring
• Stable contact force promotes long-term functionality
• Straight body orientation simplifies installation
• Current ratings up to 8A support high-performance uses
• Integrated testing option streamlines diagnostics
• Colour-coded push button improves user interaction

Applications

• Suitable for wiring in automation technology
• Utilised for connections in electronic control units
• Ideal for integration into compact electrical devices
• Effective for connections that require quick maintenance and monitoring
• Functions well with both rigid and flexible conductors

How do I install this terminal block in my project?

The terminal block features a push-in spring connection, allowing easy installation that requires no specialised tools.

Is it compatible with different types of conductors?

Yes, it accommodates both rigid and flexible conductors with a cross-section range of 0.14 to 1.5mm², ensuring versatility in wiring.

What measures are in place to ensure long-term reliability?

The stable contact force and robust design contribute to the durability and functionality of electrical connections, making it suitable for various environments.

Can I test connections easily after installation?

Yes, the integrated testing option allows for straightforward diagnostics without needing to dismantle the wiring, enhancing maintenance efficiency.

What is the temperature range for operating this unit?

It operates effectively within a temperature range of -40 to 100°C, accommodating a variety of environmental conditions.
