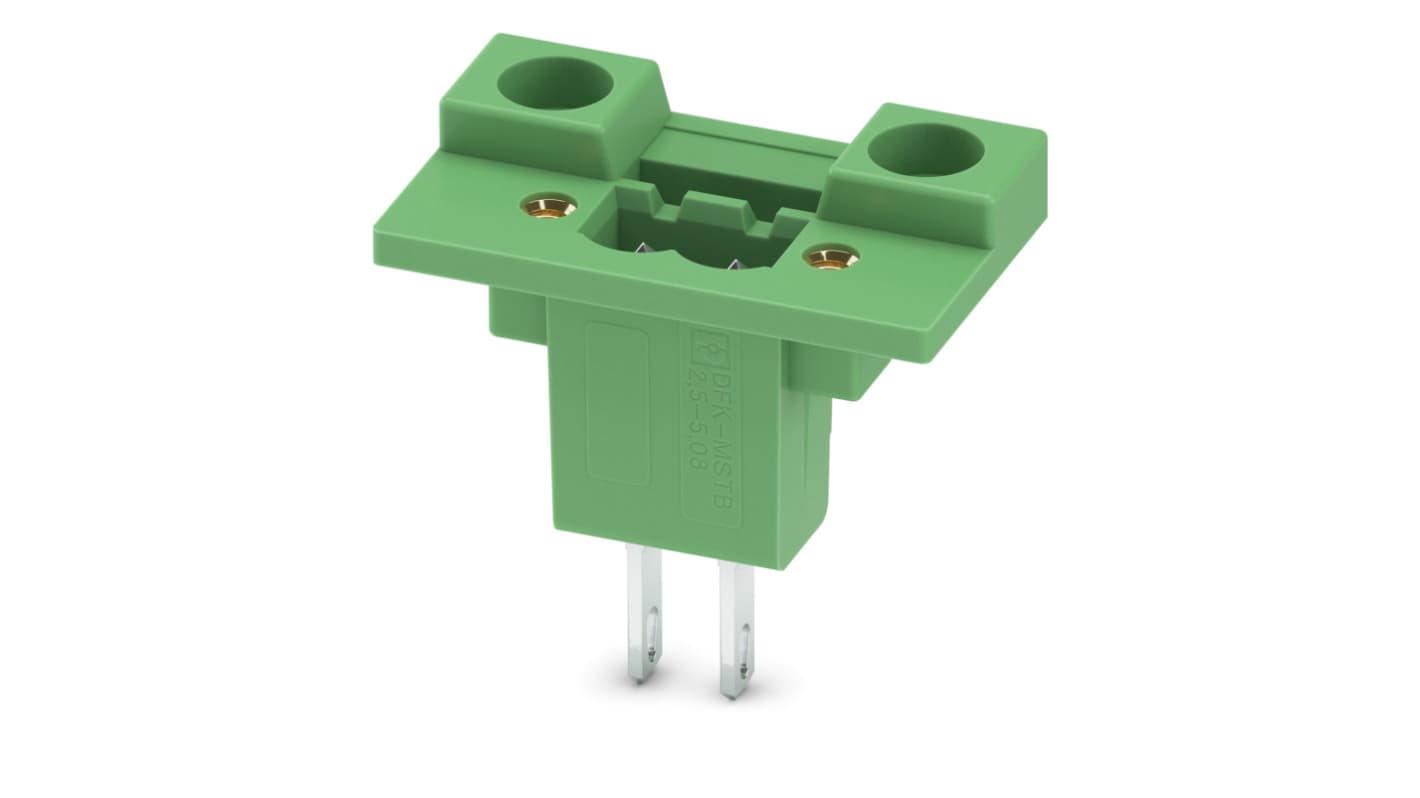

Phoenix Contact, 5.08mm Pitch, 2 Way, Pluggable Terminal Block, Feed Through Header, Panel Mount, Solder/Slip on

This 2-way printed circuit board (PCB) terminal block from Phoenix Contact is an efficient solution when you need to terminate two wires. It's suitable for PCBs with a 5.08 mm pitch (the distance between pins) and there's flexibility in the positioning of the feed-through, as the cable connection is on the inside of the component.
You can mount the block directly to your board and solder the wires to make a secure connection. The tin contact surface provides effective resistance to rust and corrosion, so you can be assured of a reliable and long-lasting connection.
You'll find PCB blocks like this one in a variety of situations, such as automation and signal applications where multiple connections might be needed.

• Straight body orientation
• Polyamide body material
• Green colour
• Current rating of 12 A
• Dimensions of 17.5 (length) x 30.48 (width) x 29.5 mm (depth)
• Male gender
• Panel mount type
• 2 contacts
• 1 row
• Pole format of 2P
• Solder termination method
• Feed-through header type
• Voltage rating of 630 V

Feed-through header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 2, pitch: 5.08 mm, connection method: Solder/Slip-on connection, colour: green, contact surface: Tin, mounting: Direct mounting
