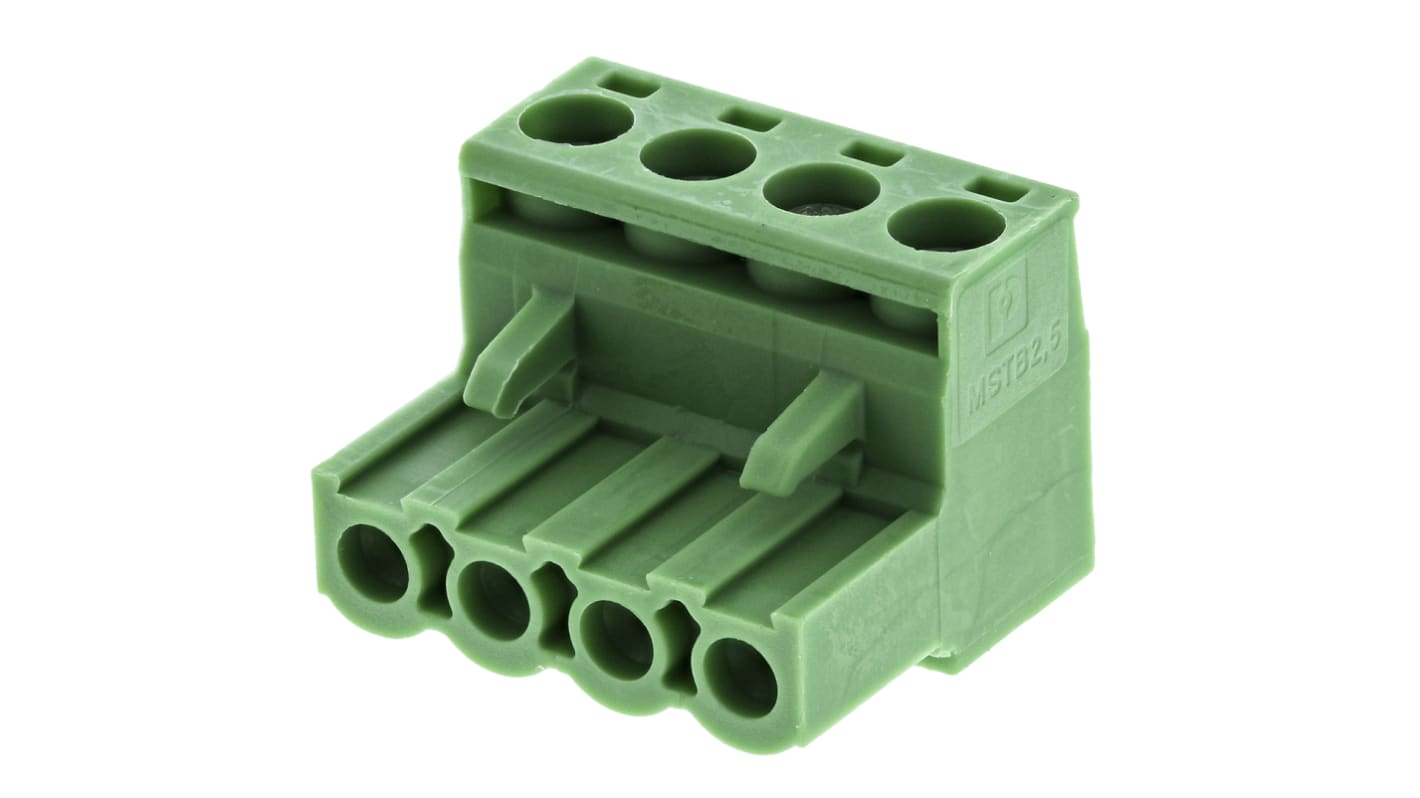

Phoenix Contact, 5mm Pitch, MSTB 2.5/ 4-ST, 4 Way, Right Angle, Pluggable Terminal Block, Plug, Screw Termination,

RS Stock No.:: 161-7245
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 1754481
ผู้ผลิต / Manufacturer:: Phoenix Contact

Phoenix Contact, 5mm Pitch, MSTB 2.5/ 4-ST, 4 Way, Right Angle, Pluggable Terminal Block, Plug, Screw Termination,

รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า

มีส่วนลดเมื่อซื้อจำนวนมาก

ราคา / Price Each (In a Box of 100)**

THB106.001

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB113.421

(รวมภาษีมูลค่าเพิ่ม)

สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 09/02/2025, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)*

* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ

ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB3,500.00 (ไม่รวมภาษี)

Units	ต่อหน่วย	Per Box**
100 - 100	THB106.001	THB10,600.10
200 - 300	THB103.669	THB10,366.90
400 +	THB101.443	THB10,144.30

**ตัวบ่งบอกราคา / price indicative

ตัวเลือก

สินค้านี้ไม่มีจำหน่ายในขณะนี้ ลองดูสินค้าอื่นที่เราแนะนำ

RS PRO, 5mm Pitch, 4 Way, Pluggable Terminal Block, Plug, Through Hole, Screw Termination

RS Stock No.: 144-4051

Each (In a Box of 500)

THB33.976

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB36.354

(รวมภาษีมูลค่าเพิ่ม)

RS Stock No.:: 161-7245
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 1754481
ผู้ผลิต / Manufacturer:: Phoenix Contact

ล็อกอินเพื่อดูโมเดล CAD

Phoenix Contact CLASSIC COMBICON MSTB 2,5 5.0mm Plug-in Terminal Block Connectors

The MSTB connectors from Phoenix Contact are from their COMICON range that is very well known for its simplicity but brilliant quality. These connectors feature multiple connection technologies so you can have maximum versatility to use one header for all applications. Not to mention, these connectors can come either in a right-angle orientation or straight orientations for maximum options. MSTB connectors feature a closed contour to help ensure the plug-in connector has good stability. Also, the MSTB series have a low-temperature rise thanks to their maximum contact force and feature an integrated double steel spring that adds additional safety to help prevent temperature and power fluctuations.

The connectors are 5mm pitched, have Cu (Copper) alloy contacts and the housing is made from a polyamide material.

Features and benefits:

Well known mounting principle allows for worldwide use

The MSTB series can be used for all PCB connectors thanks to allowing multiple connection technologies

Built from a durable Polyamide material

Linear pinning that is designed to be soldered by a wave soldering technique (through-hole)

Easy connection to the PCB - simply crimp your wire into a header and plug-in to these connectors

Maximum contact force - low-temperature rise

Dual steel spring - prevents power & temperature fluctuations

Phoenix Contact MSTB 2.5/ 4-ST Series Pluggable Terminal Block, 5mm Pitch, Screw Termination Method - 1754481

This pluggable terminal block from Phoenix Contact is an essential element in electrical systems, providing efficient connectivity for signal and power transmission. Its modular design simplifies wiring configurations in various industrial applications, making it suitable for automation and electrical professionals.

Features & Benefits

• Supports a nominal current of 12A for effective power transfer
• Rated voltage of 320V for high performance in circuits
• Utilises a screw connection with tension sleeve for secure attachments
• Enables connection of two conductors for increased versatility
• Compact design with a pitch of 5mm optimises space in assemblies
• Composed of WEEE/RoHS compliant materials for environmental responsibility

Applications

• Used in automation systems for effective power distribution
• Installed in control panels to manage signals efficiently
• Applied in machinery wiring to ensure dependable electrical connectivity
• Integrated into modular configurations in industrial equipment

What tools are needed for installation?

A standard screwdriver is sufficient for securely connecting conductors.

Can it accommodate different conductor types?

Yes, it accepts both solid and flexible conductors within specified cross sections.

What is the temperature range for safe operation?

The block operates effectively within a temperature range of -40 to 100°C.

How many connections can be made simultaneously?

It allows for up to four connections, making it ideal for compact wiring scenarios.

Is there any specific maintenance required?

Regular visual inspections for wear and secure connections are suggested for optimal performance.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Phoenix Contact COMBICON 5.0mm Two Part Terminal Blocks

คุณสมบัติ	Value
Pluggable Terminal Block Type	Plug
Number of Contacts	4
Pitch	5mm
Series	MSTB 2.5/ 4-ST
Number of Rows	1
Body Orientation	Right Angle
Termination Method	Screw
Current Rating	12A
Voltage Rating	630 V
Colour	Green
Wire Size	24 → 12 AWG
Material	Polyamide
Contact Material	Copper Alloy
Contact Plating	Tin
