BARTH lococube mini-PLC Series PLC I/O Module, MOSFET Output, 1-Input, Analogue Input
- RS Stock No.:
- 864-4541
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 0660-0600
- ผู้ผลิต:
- BARTH
ยอดรวมย่อย (1 ชิ้น)*
THB7,749.93
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB8,292.43
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 6 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB7,749.93 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 864-4541
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 0660-0600
- ผู้ผลิต:
- BARTH
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | BARTH | |
| Series | lococube mini-PLC | |
| Product Type | PLC I/O Module | |
| Number of Inputs | 1 | |
| Output Type | MOSFET | |
| Input Type | Analogue | |
| Number of Outputs | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 60°C | |
| Depth | 15mm | |
| Length | 93mm | |
| Width | 45mm | |
| Standards/Approvals | IEC | |
| Number of Communication Ports | 1 | |
| Communication Port Type | RS232 | |
| Programming Language Used | miCon-L | |
| Mount Type | Panel | |
| Supply Voltage | 32, 7V dc | |
| Display Included | Yes | |
| Battery Backup | Yes | |
| Output Current | 8A | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand BARTH | ||
Series lococube mini-PLC | ||
Product Type PLC I/O Module | ||
Number of Inputs 1 | ||
Output Type MOSFET | ||
Input Type Analogue | ||
Number of Outputs 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 60°C | ||
Depth 15mm | ||
Length 93mm | ||
Width 45mm | ||
Standards/Approvals IEC | ||
Number of Communication Ports 1 | ||
Communication Port Type RS232 | ||
Programming Language Used miCon-L | ||
Mount Type Panel | ||
Supply Voltage 32, 7V dc | ||
Display Included Yes | ||
Battery Backup Yes | ||
Output Current 8A | ||
- COO (Country of Origin):
- DE

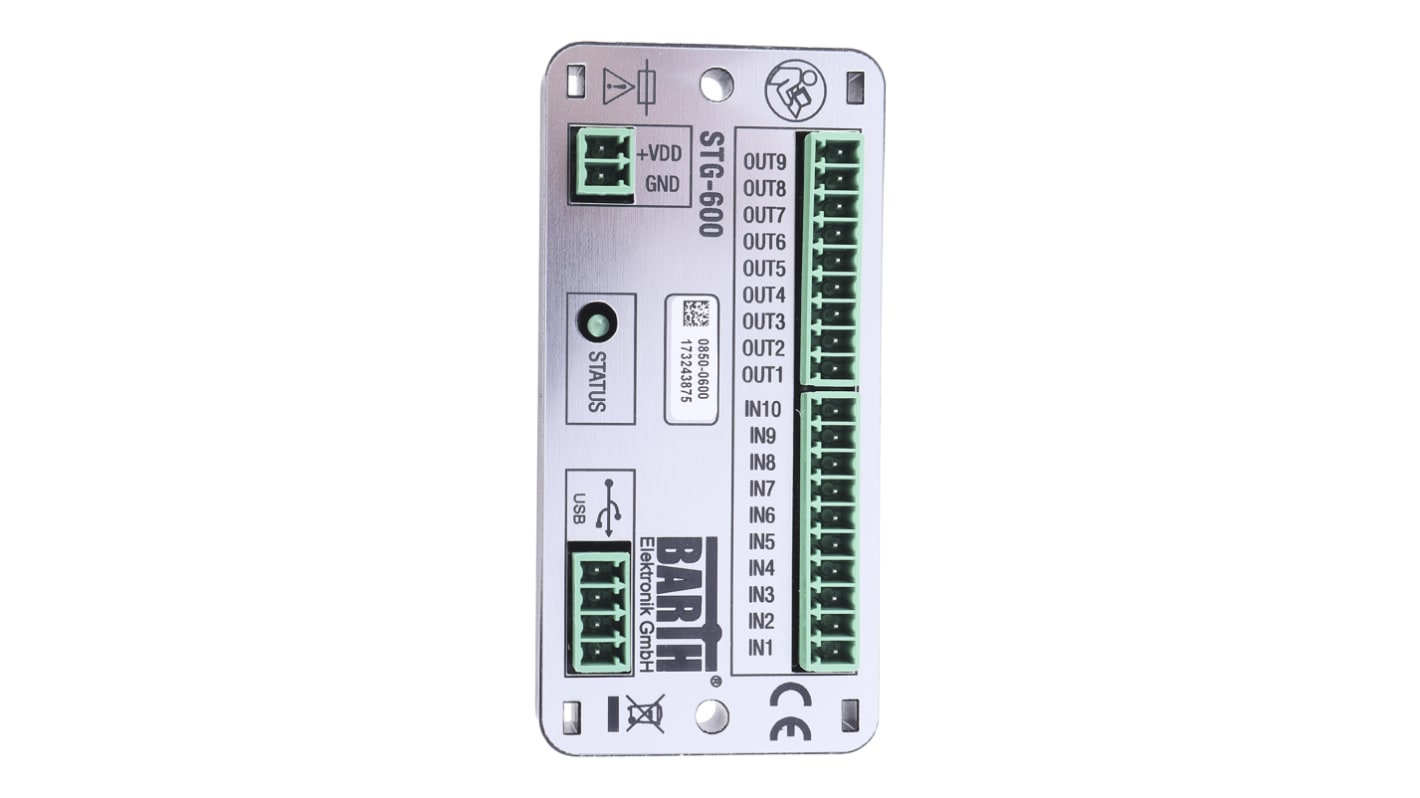

BARTH Logic Module
The BARTH STA-600 CAN panel mount logic module is a highly integrated programmable logic controller. It provides an outstanding graphical programming capability at the lowest current consumption and small form factor. It opens up completely new application fields with space restrictions and high integration level requirements. This logic module has low power consumption and can operate over a wide range of voltages, which makes it suitable for 12V and 24V battery-powered systems. The CAN bus allows the user to connect to a variety of network components to the Mini-PLC. It has 8 analogues inputs that can vary from 0VDC to 30VDC and two digital inputs up to 10Khz. This logic module has eight power outputs up to 1.5A and 1PWM power output. This logic module can be easily programmed using miCon-L software that does not require a difficult programming language.
Features and Benefits
Reliable solid-state output
Programmable status LED
Only 1 CAN Interface
TTL-232/USB connection to the PC
Intuitive graphical programming capability
Wide operating voltage that ranges between 7VDC and 32VDC
Ultra-flat housing
Height is 10mm
Vibration resistant and rugged sealing
Very low current consumption
PLC simulation and debugging
Applications
Industrial automation
Building automation
Automotive technology
Maritime technology
Environmental technology
Light and show technology
