BARTH lococube mini-PLC Series PLC I/O Module, MOSFET Output, 5-Input, Analogue Input

ดูหมวดหมู่นี้

ยอดรวมย่อย (1 ชิ้น)*

THB6,099.30

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB6,526.25

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • 3 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น
ต่อหน่วย
1 +THB6,099.30

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
864-4532
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
0660-0500
ผู้ผลิต:
BARTH
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

BARTH

Series

lococube mini-PLC

Product Type

PLC I/O Module

Number of Inputs

5

Output Type

MOSFET

Input Type

Analogue

Number of Outputs

5

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

70°C

Standards/Approvals

IEC

Length

40mm

Depth

22mm

Width

40 mm

Communication Port Type

Computer

Supply Voltage

7 → 32 V dc

Mount Type

Panel Mount

Output Current

8A

Programming Language Used

miCon-L

Battery Backup

Yes

Number of Communication Ports

2

Display Included

Yes

COO (Country of Origin):
DE

STA-500 - Mini-PLC Starter Kit


The STA-500 is a mini-PLC starter kit from Barth, providing fast access to the unique graphical programming capability of the STG-500 PLC. The kit contains STG-500 mini-PLC and developing software suite miCon-L. The mini-PLC can be easily programmed, without learning any difficult programming language simply by using vivid function blocks. The block is designed to meet graphical standards of the latest programming languages. The miCon-L developing software suite is a cutting-edge tool that features programming, simulation and test in one unique software design tool. It is free to download from the following link: http://micon-l.de/en/downloads.html

Features & Benefits


Mini-PLC STG-500 miCon-L

miCon-L software suite download

Connectors for Mini-PLC

RS-232 interface cable

User manual Mini-PLC STG-500

User manual miCon-L software suite

Innovative graphical programming with miCon-L

PLC simulation and debugging

Mini-PLC STG-500 with 2 digital inputs

3 analogue inputs 0 V dc to 30 V dc

4 Solid-state outputs 1.5 A

1 MOSFET output 2 A

PWM capability up to 5 kHz

True RS-232 interface

Programmable status-LED

Internal voltage monitor

Internal temperature monitor

Wide operating voltage range 7 V dc to 32 V dc

ESD- and EMV-stable design

Spring terminal connection

Vibration resistant and waterproof sealing

Product Application Information

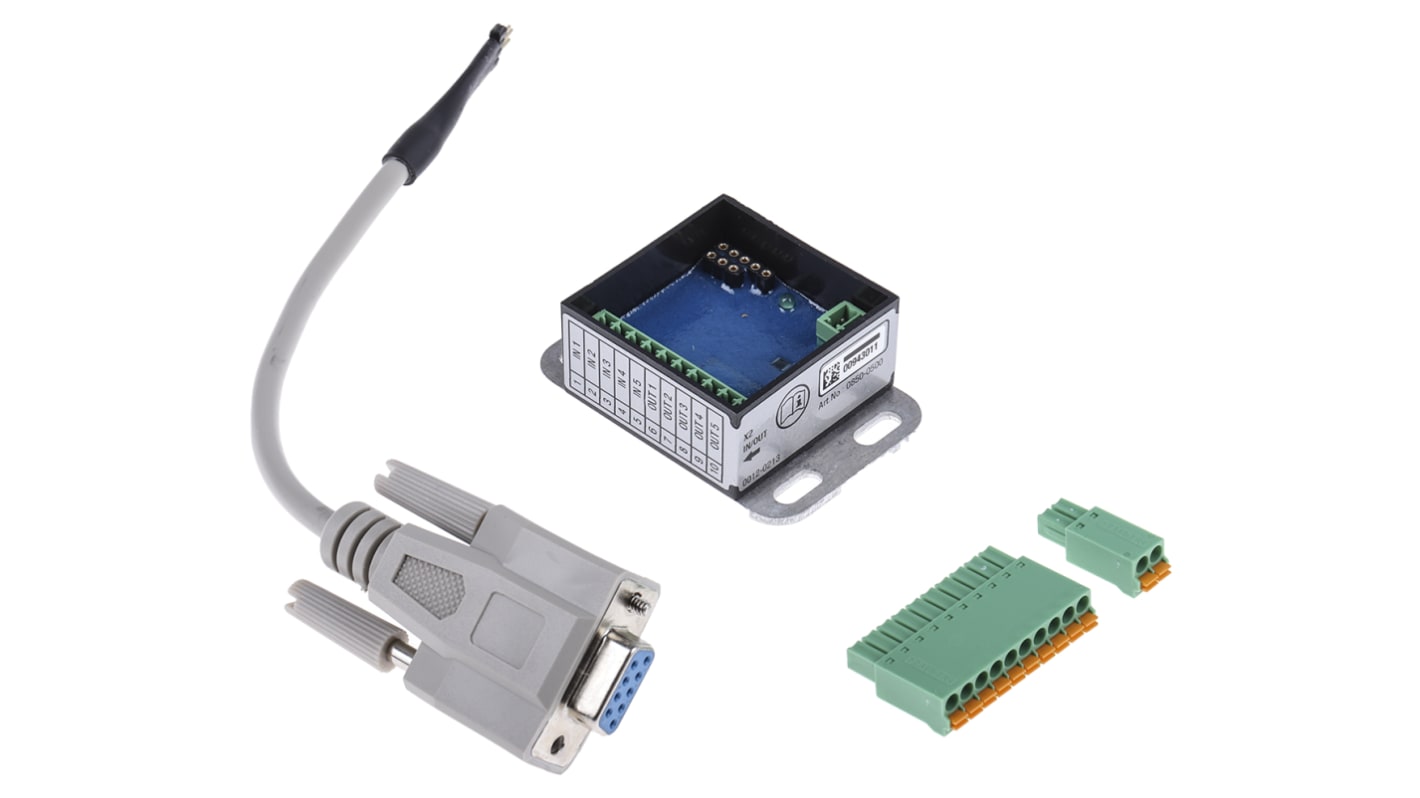

The STA-500 Starter Kit contains:

Mini-PLC STG-500

Pluggable Spring Terminal Connectors

Quick Start Manual

With its cutting edge features the STA-500 opens up new application fields with space restrictions and high integration level requirements. The outstanding features also open up applications in automotive, industrial, building, environmental, light and show, and maritime technologies.

Software:

The software is available as a free online download:

http://micon-l.de/en/downloads.html

Barth Mini-PLC


Note

A product is NRND (Not Recommended for New Designs) is in production and available, with no obsolescence scheduled. However, we recommend against using these parts for new designs because there are better or more economical alternatives.
