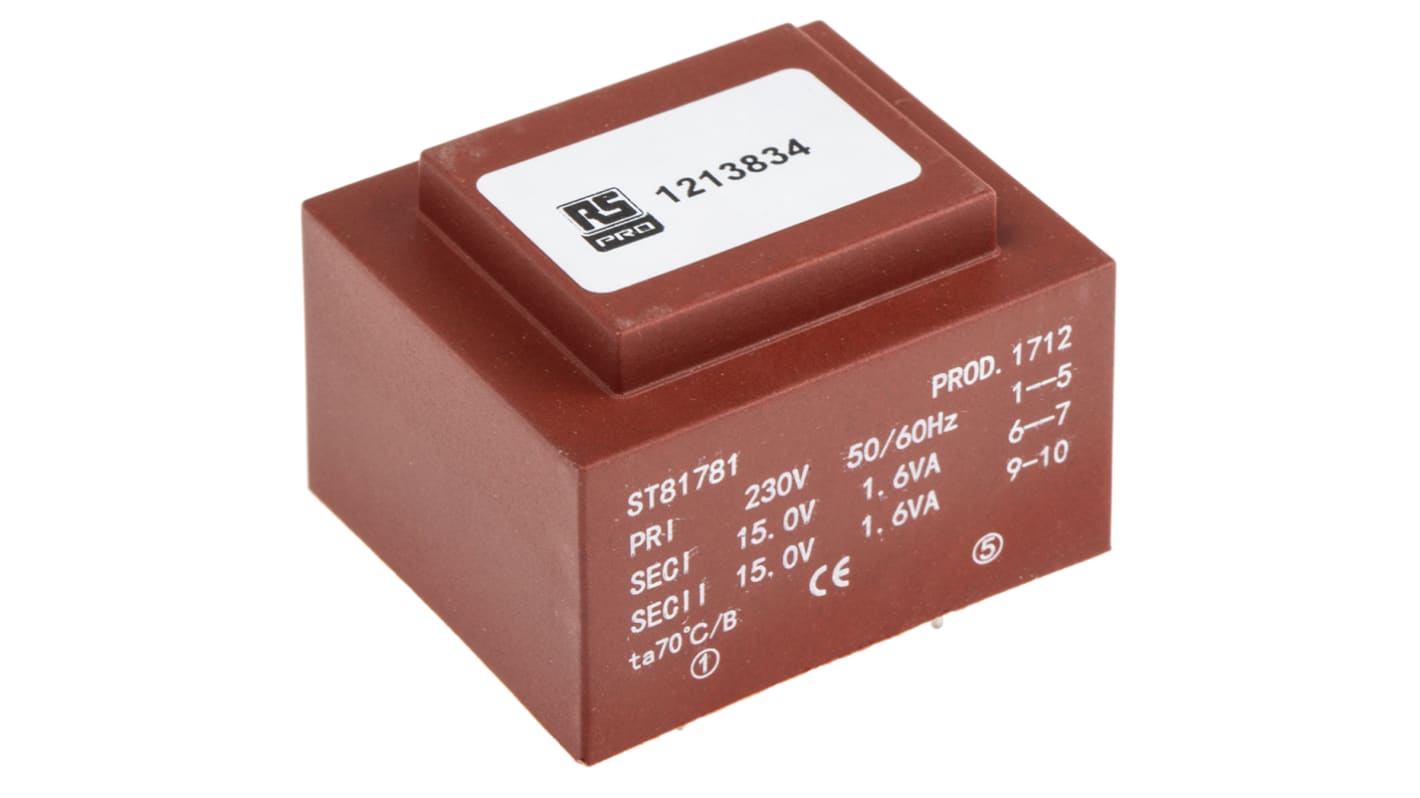

RS PRO 2 x 15V ac 2 Output PCB Mount PCB Transformer, 3.2VA
- RS Stock No.:
- 121-3834
- ผู้ผลิต / Manufacturer:
- RS PRO
ดู PCB Transformers ทั้งหมด
119 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB742.44
(exc. VAT)
THB794.41
(inc. VAT)
| Units | Per unit |
| 1 + | THB742.44 |
- RS Stock No.:
- 121-3834
- ผู้ผลิต / Manufacturer:
- RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details
RS Pro PCB Standard Transformers
RS Pro PCB Standard transformers are low voltage mains transformers with a single 230 VAC 50/60Hz primary winding
These transformers have secondary windings suitable for series/ parallel connection to give a wide range of current options. They are 100% electric and flash tested. Double section bobbin, high efficiency and low temperature rise. These RS Pro transformers have low interwinding capacity and low radiated noise.
These transformers have secondary windings suitable for series/ parallel connection to give a wide range of current options. They are 100% electric and flash tested. Double section bobbin, high efficiency and low temperature rise. These RS Pro transformers have low interwinding capacity and low radiated noise.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Secondary Voltage Rating | 2 x 15V ac |
| Power Rating | 3.2VA |
| Primary Voltage Rating | 230V ac |
| Number of Outputs | 2 |
| Length | 41mm |
| Width | 35mm |
| Depth | 28mm |
| Dimensions | 41 x 35 x 28mm |
| Weight | 150g |
| Mounting Type | PCB Mount |
| Maximum Temperature | +130°C |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
