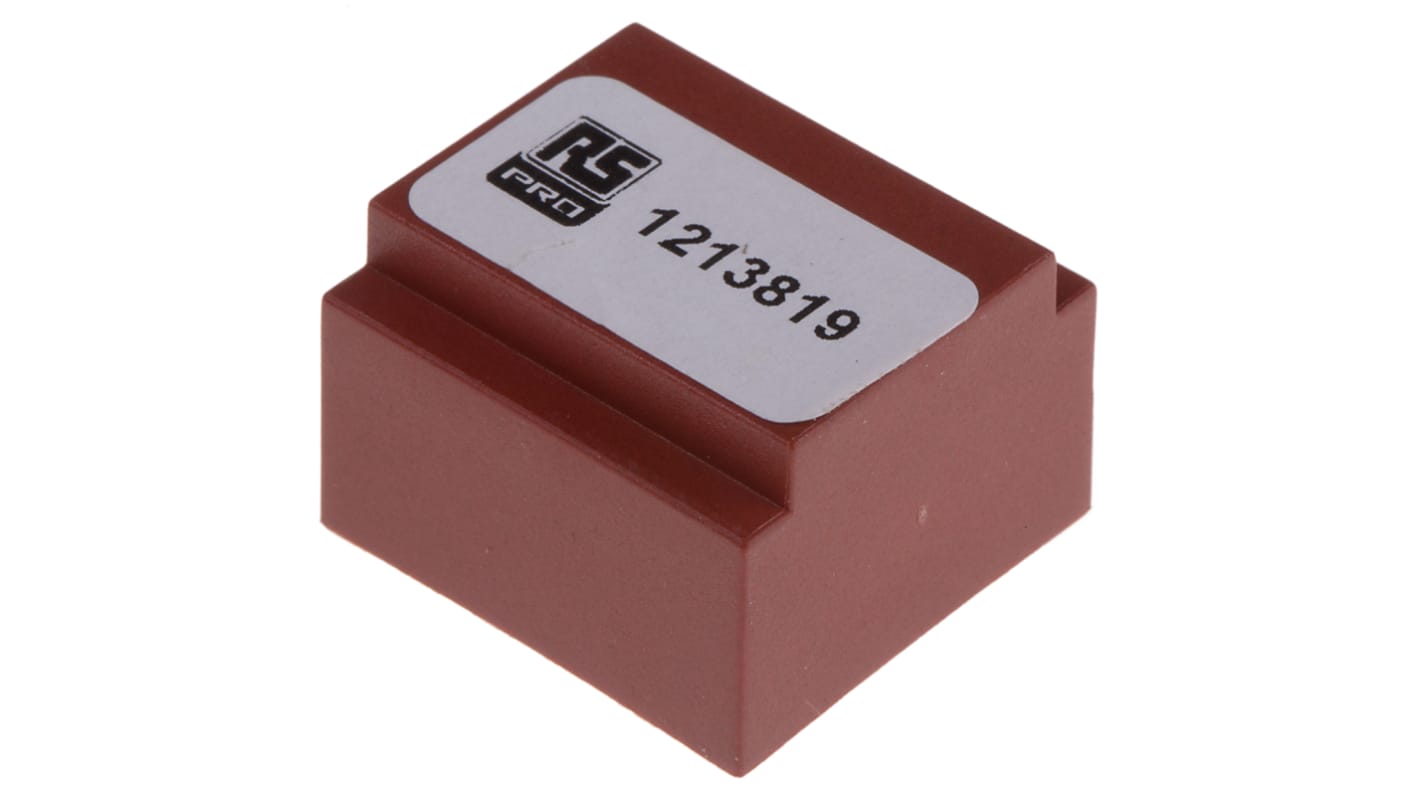

RS PRO 1 x 6V ac 1 Output PCB Mount PCB Transformer, 0.35VA
- RS Stock No.:
- 121-3819
- Distrelec Article No.:
- 304-05-170
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
THB314.46
(exc. VAT)
THB336.47
(inc. VAT)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- เพิ่มอีก 64 ชิ้นจะส่งได้หลังจากวันที่ 15 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
- เพิ่มอีก 400 ชิ้นจะส่งได้หลังจากวันที่ 01 พฤษภาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
Units | Per unit |
|---|---|
| 1 - 9 | THB314.46 |
| 10 + | THB306.60 |
*price indicative
- RS Stock No.:
- 121-3819
- Distrelec Article No.:
- 304-05-170
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Secondary Voltage Rating | 1 x 6V ac | |
| Power Rating | 0.35VA | |
| Primary Voltage Rating | 230V ac | |
| Number of Outputs | 1 | |
| Length | 22mm | |
| Width | 23mm | |
| Depth | 15mm | |
| Dimensions | 22 x 23 x 15mm | |
| Weight | 25g | |
| Mounting Type | PCB Mount | |
| Maximum Temperature | +130°C | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Secondary Voltage Rating 1 x 6V ac | ||
Power Rating 0.35VA | ||
Primary Voltage Rating 230V ac | ||
Number of Outputs 1 | ||
Length 22mm | ||
Width 23mm | ||
Depth 15mm | ||
Dimensions 22 x 23 x 15mm | ||
Weight 25g | ||
Mounting Type PCB Mount | ||
Maximum Temperature +130°C | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- PL
RS Pro PCB Standard Transformers
RS Pro PCB Standard transformers are low voltage mains transformers with a single 230 VAC 50/60Hz primary winding
These transformers have secondary windings suitable for series/ parallel connection to give a wide range of current options. They are 100% electric and flash tested. Double section bobbin, high efficiency and low temperature rise. These RS Pro transformers have low interwinding capacity and low radiated noise.
These transformers have secondary windings suitable for series/ parallel connection to give a wide range of current options. They are 100% electric and flash tested. Double section bobbin, high efficiency and low temperature rise. These RS Pro transformers have low interwinding capacity and low radiated noise.
