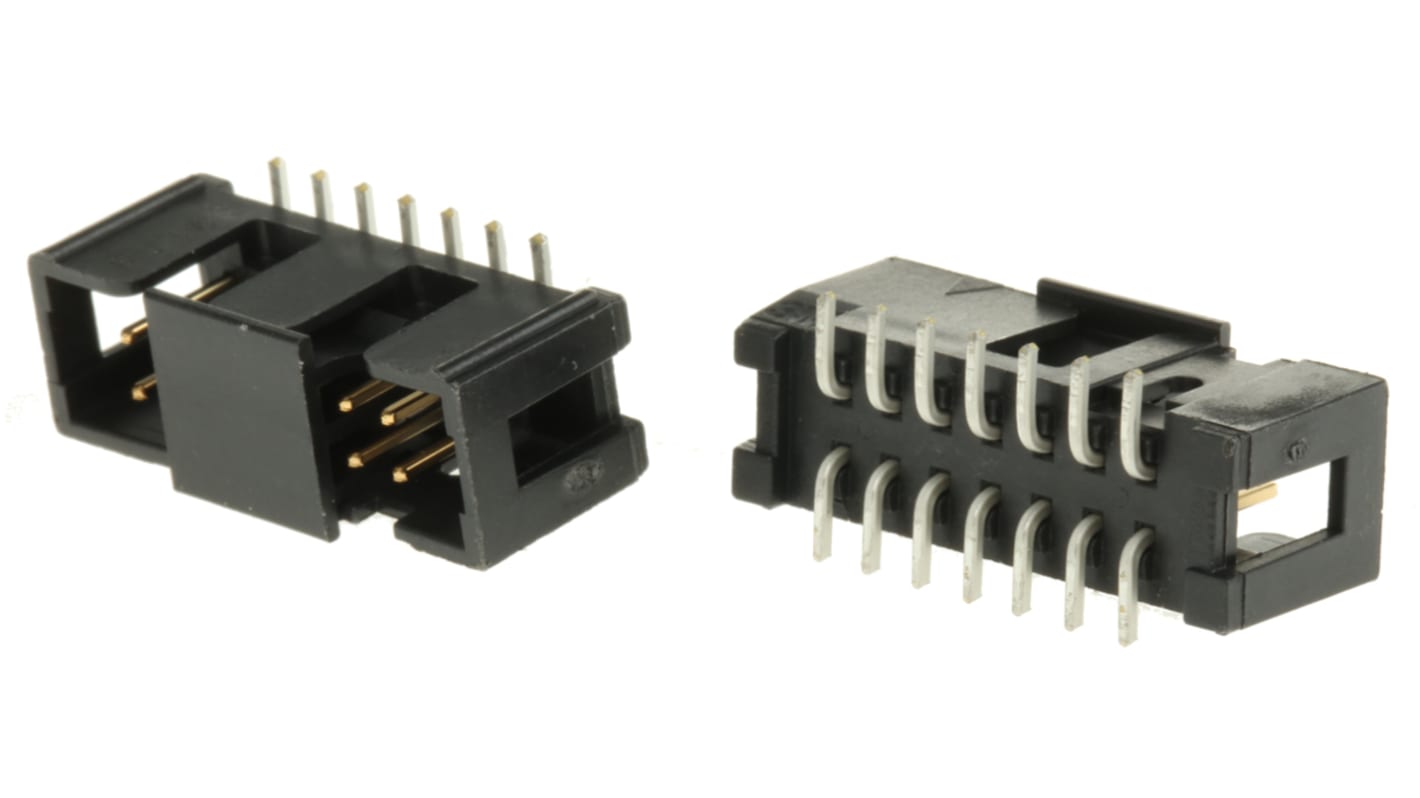

3M 2500 Series Straight Surface PCB Header, 14 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded

ดู PCB Headers ทั้งหมด
มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 แพ็ค แพ็คละ 10 ชิ้น)*

THB1,495.70

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB1,600.40

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • 60 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
  • เพิ่มอีก 600 ชิ้นจะส่งได้หลังจากวันที่ 09 กุมภาพันธ์ 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น
ต่อหน่วย
ต่อแพ็ค*
10 - 240THB149.57THB1,495.70
250 - 740THB145.084THB1,450.84
750 - 1990THB140.598THB1,405.98
2000 - 3990THB137.607THB1,376.07
4000 +THB134.617THB1,346.17

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
212-701
Distrelec หมายเลขบทความ:
304-37-233
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
N2514-6V0C-RB-WD
ผู้ผลิต:
3M
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

3M

Product Type

PCB Header

Series

2500

Current

2A

Pitch

2.54mm

Number of Contacts

14

Number of Rows

2

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Surface

Connector System

Board-to-Board, Wire-to-Board

Contact Material

Copper Alloy

Contact Plating

Gold

Termination Type

Solder

Minimum Operating Temperature

-55°C

Contact Gender

Male

Maximum Operating Temperature

105°C

Standards/Approvals

No

Voltage

1000 V

COO (Country of Origin):
US

3M 2500 Series PCB Header, 14 Contacts, 2.54mm Pitch - N2514-6V0C-RB-WD


This PCB header is a versatile component designed for seamless electronic connections. Constructed with a 2.54mm pitch, this shrouded dual-row connector supports 14 contacts and features a straight body orientation. Designed for surface mounting, it excels in applications requiring robust connectivity between boards and wires, making it an essential part of modern electronic assemblies.

Features & Benefits


• Utilises a shrouded design for improved connection stability

• Gold plating provides excellent resistance to corrosion

• Rated for high voltage needs up to 1000V

• Supports a current rating of 1.75A for reliable performance

• Ideal for both wire-to-board and board-to-board configurations

Applications


• Suitable for automation and control systems

• Frequently used in compact electronic devices

• Ideal for powering and signalling in complex machinery

• Utilised in telecommunications equipment for dependable connections

• Can be used in consumer electronics for effective integration

What materials contribute to the durability and performance of this connector?


The connector features a copper alloy for superior conductivity, enhanced by gold plating that resists corrosion and ensures long-lasting reliability.

How does the shrouded design enhance connection reliability?


The shrouded design helps to protect the contacts from accidental contact and misalignment, ensuring stable connections and reducing the risk of damage during installation.

What is the significance of the 2.54mm pitch in connectivity?


The 2.54mm pitch allows for tight spacing between contacts, facilitating compact designs while maintaining necessary electrical performance for various applications.

In which environments is this header most effectively used?


This header is effective in environments where high voltage and reliable performance are critical, making it suitable for industrial and consumer electronic applications.

How does the current and voltage rating of this component affect its usability?


With a current rating of 1.75A and a voltage rating of 1000V, it can handle significant electrical loads, making it suitable for a wide range of demanding applications while ensuring safety and performance.
