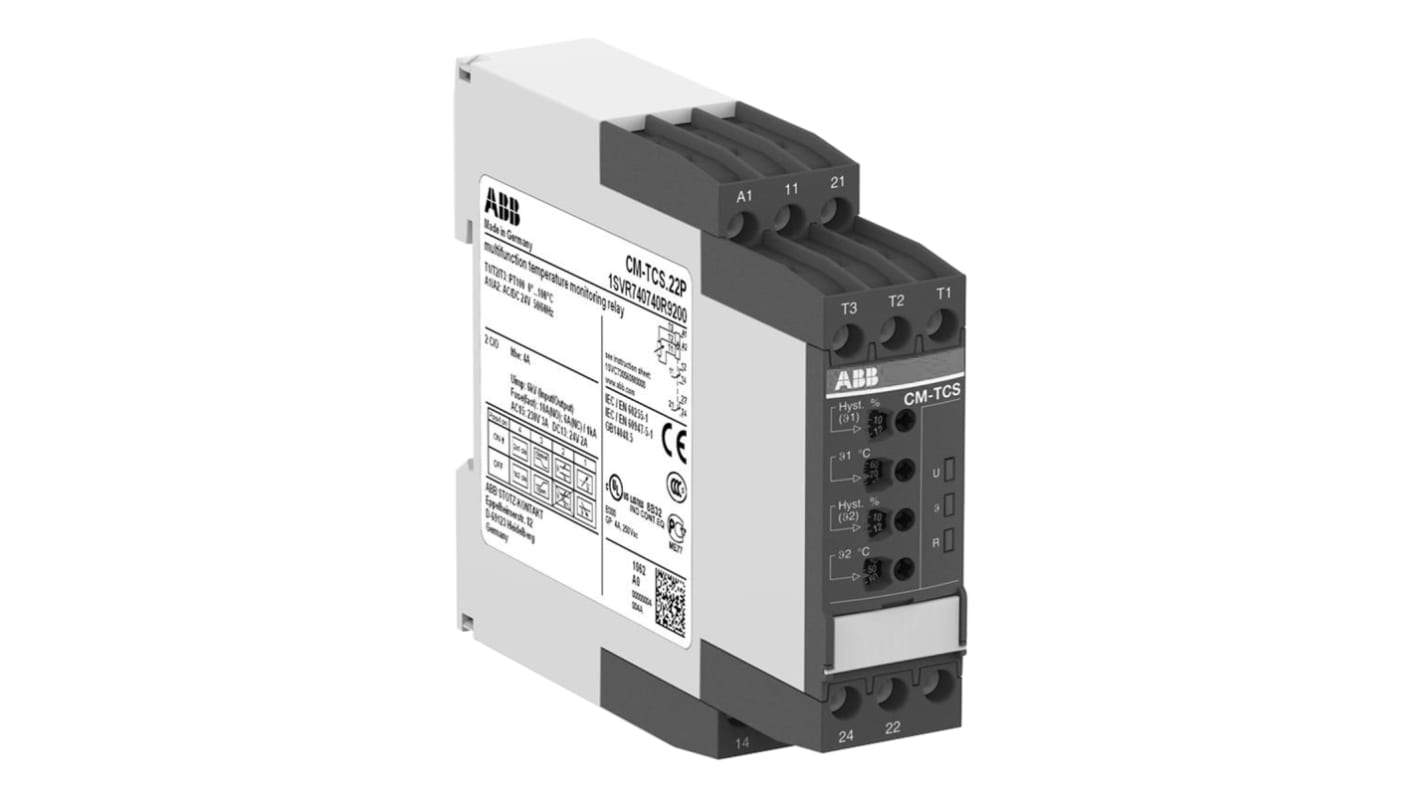

ABB Temperature Monitoring Relay, SPDT

ดู Monitoring Relays ทั้งหมด
ไม่พร้อมจำหน่าย
RS จะไม่สต็อกสินค้านี้อีกต่อไป
RS Stock No.:
876-5786
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
CM-TCS.22P
ผู้ผลิต:
ABB
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

ABB

Monitoring Application

Temperature

Contact Configuration

SPDT

Time Delay

20ms

Frequency Sensing Range

45 → 65Hz

Temperature Sensitivity

Overtemperature, Temperature Window Monitoring, Undertemperature

Temperature Sensing Range

0 → +100°C

Series

CM-TCS

Maximum Operating Temperature

+60°C

Maximum Temperature Sensed

+100°C

Dimensions

103.7 x 85.6 x 22.5mm

Minimum Operating Temperature

-40°C

Width

85.6mm

Operating Temperature Range

-40 → +60°C

Height

22.5mm

Minimum Temperature Sensed

0°C

Terminal Type

Push In

Special Features

13 LEDs for the Indication of Operational StatesValues, All Configurations and Adjustments by Front-Face Operating Elements, Hysteresis 2-20 % Adjustable, One or Two Threshold

Minimum Frequency Sensed

45Hz

Length

103.7mm

Number of Poles

1

CM-TCS Temperature Monitoring Relays


The temperature monitoring relays CM-TCS monitor over-temperature, under-temperature, or temperatures between two threshold values with PT100 sensor. When the temperature falls below, or exceeds the maximum value, the output relays instantaneously change their positions according to the configured functionality. The front-face LED will display the current status.

Available with two different terminal versions (screw connection or Easy Connect push-in)
All configurations and adjustments by front-face operating elements
Precise adjustment with direct reading scales
Short circuit monitoring and interrupted wire detection
3 LEDs for the indication of operational states

Approvals

Housing material for highest fire protection classification UL 94 V-0
