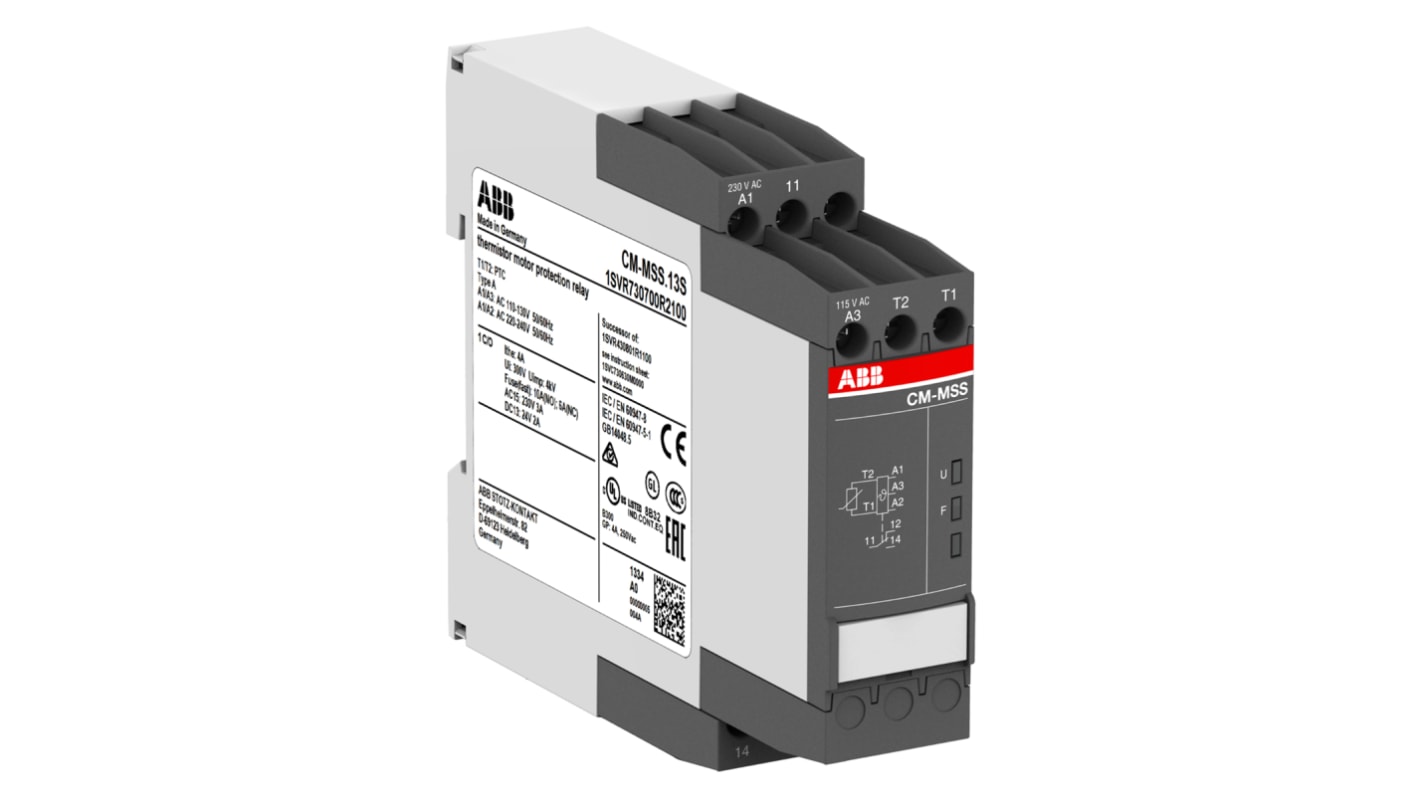

ABB Monitoring Relay, 1 Phase, SPDT, DIN Rail, 24 V dc 220/240 V ac, 110/130 V ac

RS Stock No.:: 876-5008
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 1SVR740700R2100 CM-MSS.13P
ผู้ผลิต:: ABB

ABB Monitoring Relay, 1 Phase, SPDT, DIN Rail, 24 V dc 220/240 V ac, 110/130 V ac

ดู Monitoring Relays ทั้งหมด

ยอดรวมย่อย (1 ชิ้น)*

THB3,527.53

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB3,774.46

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

8 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB3,527.53

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 876-5008
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 1SVR740700R2100 CM-MSS.13P
ผู้ผลิต:: ABB

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	ABB
	Product Type	Monitoring Relay
	Electrical Phase	1
	Sub Type	PTC
	Contact Configuration	SPDT
	Mount Type	DIN Rail
	Switching Voltage	24 V ac
	Terminal Type	Push-in
	IP Rating	IP20, IP50
	Supply DC Voltage	24 V dc
	Contact Current	3.7mA
	Minimum Operating Temperature	-25°C
	Supply AC Voltage	220/240 V ac, 110/130 V ac
	Maximum Operating Temperature	60°C
	Height	85.6mm
	Standards/Approvals	No
	Length	103.7mm
	Series	CM-MSS
	Width	22.5 mm

	เลือกทั้งหมด
	Brand ABB
	Product Type Monitoring Relay
	Electrical Phase 1
	Sub Type PTC
	Contact Configuration SPDT
	Mount Type DIN Rail
	Switching Voltage 24 V ac
	Terminal Type Push-in
	IP Rating IP20, IP50
	Supply DC Voltage 24 V dc
	Contact Current 3.7mA
	Minimum Operating Temperature -25°C
	Supply AC Voltage 220/240 V ac, 110/130 V ac
	Maximum Operating Temperature 60°C
	Height 85.6mm
	Standards/Approvals No
	Length 103.7mm
	Series CM-MSS
	Width 22.5 mm

ABB CM-MSS Series Monitoring Relay, +60 °C Maximum Operating Temperature, SPDT Contact Configuration - 1SVR740700R2100 CM-MSS.13P

This monitoring relay is a robust electrical device designed specifically for temperature monitoring applications. With dimensions of 103.7 x 22.5 x 85.6mm, it provides reliable protection against overtemperature conditions in motors and generators through the use of PTC sensors. This compact device is easily mountable on DIN rails, making it ideal for various settings within the automation and electrical sectors.

Features & Benefits

• Automatic reset feature enhances usability after fault detection

• Integrated PTC sensor for precise temperature monitoring

• SPDT contact configuration for flexible circuit connections

• High safety standards with fail-safe design and overvoltage protection

• Quick response time of less than 100 ms for critical applications

• Compliant with UL 508 standards for safe operation

Applications

• Utilised for real-time monitoring of motor winding temperatures

• Employed in systems requiring protection against insufficient cooling

• Ideal for installations needing DIN rail mounting in control circuits

• Suitable for automation environments where temperature regulation is critical

What temperature range can this device operate in?

The device can function effectively within temperatures ranging from -25°C to +60°C, ensuring reliable performance in various conditions.

How does the automatic reset feature work?

Once the fault is cleared and temperatures fall below the specified threshold, the device automatically resets, allowing normal operation without manual intervention.

What types of connections are supported?

It offers both push-in terminals for effortless connections and traditional screw terminals, accommodating various wire sizes for flexibility in installations.

Is the device resistant to overvoltage conditions?

Yes, it includes built-in overvoltage protection for both supply and measuring inputs, safeguarding the device from unexpected spikes.
