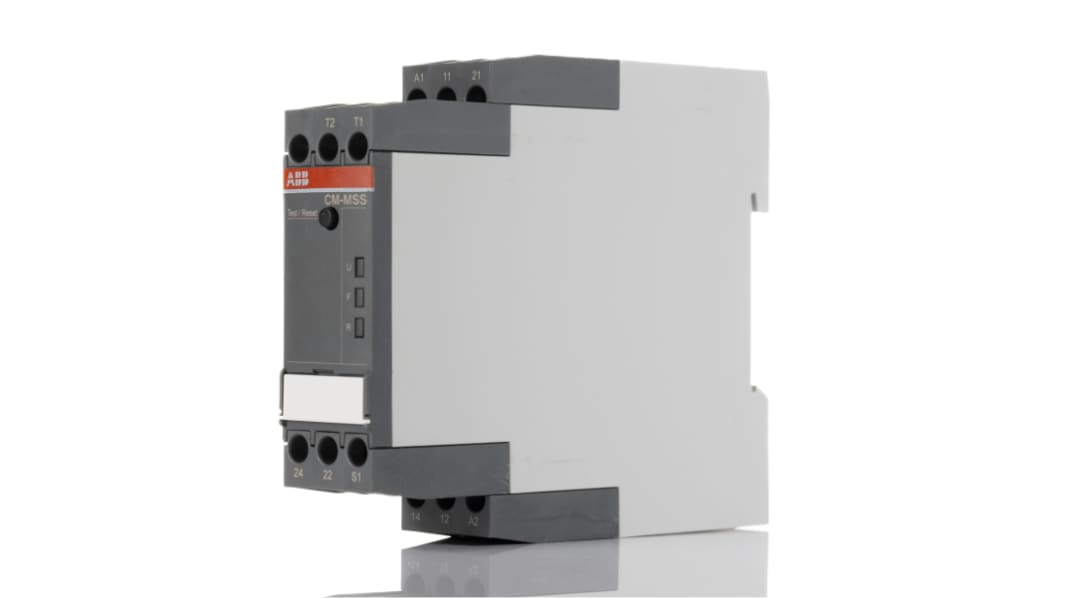

ABB Temperature Monitoring Relay, 1 Phase, DPDT, 220 → 240V ac, DIN Rail

RS Stock No.:: 876-5033
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 1SVR730712R2200 CM-MSS.33S
ผู้ผลิต:: ABB

ABB Temperature Monitoring Relay, 1 Phase, DPDT, 220 → 240V ac, DIN Rail

ดู Monitoring Relays ทั้งหมด

มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 ชิ้น)*

THB3,956.02

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB4,232.94

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

16 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 - 4	THB3,956.02
5 +	THB3,255.81

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 876-5033
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 1SVR730712R2200 CM-MSS.33S
ผู้ผลิต:: ABB

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	ABB
	Monitoring Application	Temperature
	Electrical Phase	1
	Voltage Sensing Range	220 → 240V ac
	Contact Configuration	DPDT
	Mounting Type	DIN Rail
	Time Delay	<100ms
	Frequency Sensing Range	50 → 60Hz
	Temperature Sensitivity	Overtemperature, Winding Temperature
	Series	CM-MSS
	Hazardous Area Certification	ATEX
	Special Features	Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, Manual & Automatic Reset, One Measuring Circuit, Over Heating Protection, Over Load Protection, Remote Reset, Short-Circuit Monitoring of the Sensor Circuit, Test and Reset Button
	Standards Met	UL
	Number of Poles	1
	Minimum Operating Temperature	-25°C
	Height	85.6mm
	Width	22.5mm
	Length	103.7mm
	Minimum Voltage Sensed	220V ac
	Minimum Frequency Sensed	50Hz
	Operating Temperature Range	-25 → +60°C
	Terminal Type	Screw
	Dimensions	103.7 x 22.5 x 85.6mm
	Maximum Operating Temperature	+60°C
	Maximum Voltage Sensed	240V ac
	Current Range	Maximum of 3.7mA

	เลือกทั้งหมด
	Brand ABB
	Monitoring Application Temperature
	Electrical Phase 1
	Voltage Sensing Range 220 → 240V ac
	Contact Configuration DPDT
	Mounting Type DIN Rail
	Time Delay <100ms
	Frequency Sensing Range 50 → 60Hz
	Temperature Sensitivity Overtemperature, Winding Temperature
	Series CM-MSS
	Hazardous Area Certification ATEX
	Special Features Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, Manual & Automatic Reset, One Measuring Circuit, Over Heating Protection, Over Load Protection, Remote Reset, Short-Circuit Monitoring of the Sensor Circuit, Test and Reset Button
	Standards Met UL
	Number of Poles 1
	Minimum Operating Temperature -25°C
	Height 85.6mm
	Width 22.5mm
	Length 103.7mm
	Minimum Voltage Sensed 220V ac
	Minimum Frequency Sensed 50Hz
	Operating Temperature Range -25 → +60°C
	Terminal Type Screw
	Dimensions 103.7 x 22.5 x 85.6mm
	Maximum Operating Temperature +60°C
	Maximum Voltage Sensed 240V ac
	Current Range Maximum of 3.7mA

ABB Monitoring Relay, +60°C Maximum Operating Temperature, Thermistor Motor Protection Type - CM-MSS Series - 1SVR730712R2200

Keep your motor as cool as a cucumber with this monitoring relay from ABB. It stops the motor from overheating by switching it off if it senses a dangerous temperature increase. As you can adjust the component to reset automatically, remotely or manually, you can adapt it to suit the needs of your system. A broad operating temperature range between -25°C and +60°C means it stands up well in demanding environments. Thanks to a mechanical lifespan of 30 million cycles, you can rest assured this handy device lasts a long time.

Features & Benefits

• Light weight of 172g to place minimal strain on your equipment
• Housing has an IP50 rating, meaning it's protected against limited amounts of dust
• Screw terminals for secure wiring

Applications

• Paper mills
• Domestic appliances
• HVAC equipment

How large is this unit?

This product has compact dimensions of 103.7 (L) x 22.5 (W) x 85.6mm (H), so it fits into tight spaces.

How do I mount this relay?

This relay snaps onto your DIN rail, so you can install it in a jiffy without any tools.
