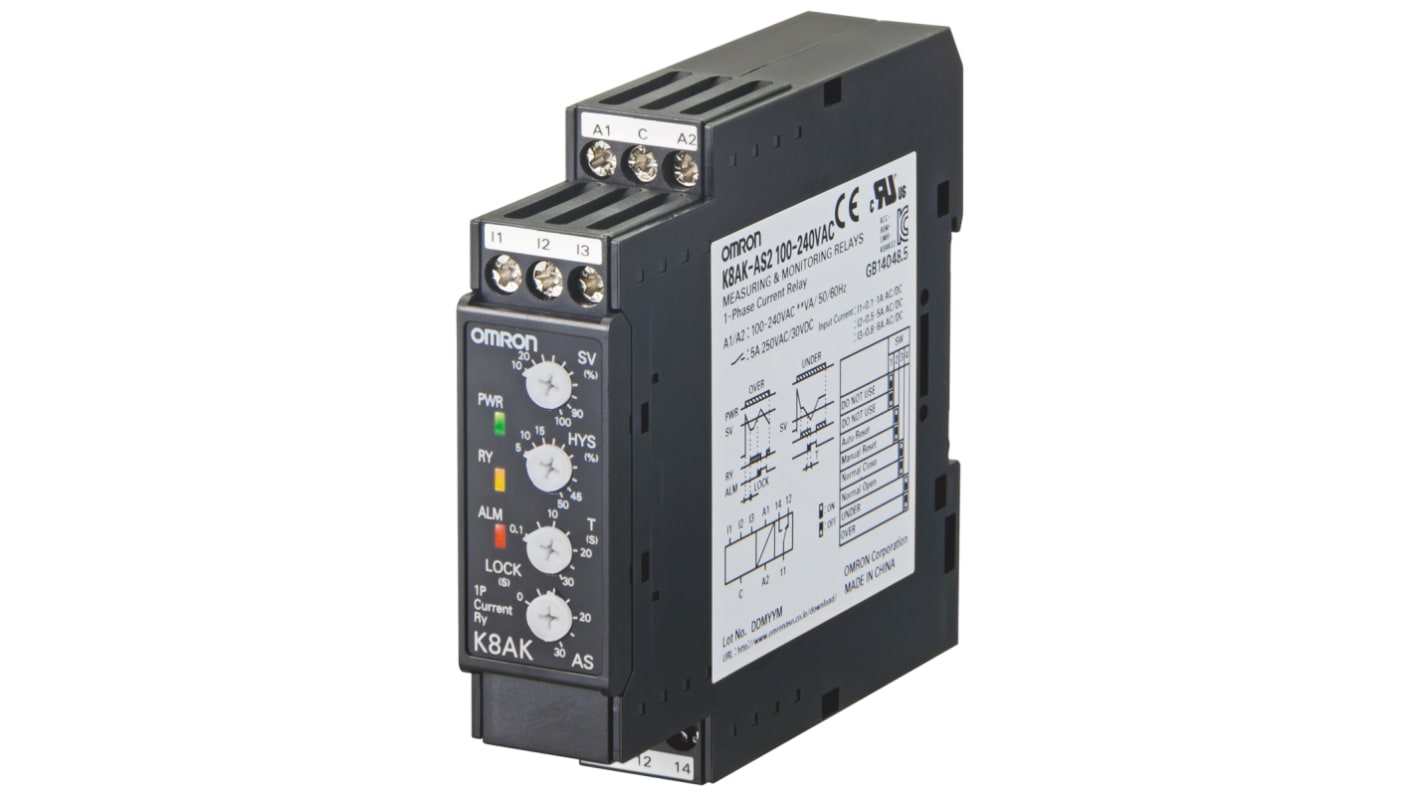

Omron Current Monitoring Relay, 1 Phase, SPDT, DIN Rail

RS Stock No.:: 819-3204
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: K8AK-AS1 24VAC/DC
ผู้ผลิต / Manufacturer:: Omron

Omron Current Monitoring Relay, 1 Phase, SPDT, DIN Rail

ราคา / Price Each

THB6,794.83

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB7,270.47

(รวมภาษีมูลค่าเพิ่ม)

1 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)*

* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ

ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB3,500.00 (ไม่รวมภาษี)

Units	ต่อหน่วย
1 +	THB6,794.83

RS Stock No.:: 819-3204
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: K8AK-AS1 24VAC/DC
ผู้ผลิต / Manufacturer:: Omron

Omron K8AK-AS/AW Monitoring Relays

The Omron K8AK series monitoring relays are expertly designed for accurate and reliable monitoring for industrial facilities and equipment. The K8AK-AW/AS relays are suitable for undercurrent and overcurrent monitoring, which the K8AK-AW can do simultaneously.
Manual resetting and automatically resetting can be maintained by one relay.
Startup lock and operating time can be set individually.

Omron K8AK-AS Series Monitoring Relay, SPDT Contact Configuration, Current Monitoring Application - K8AK-AS1 24VAC/DC

This monitoring relay is designed for effective current monitoring in industrial environments. It protects electrical systems by detecting both overcurrent and undercurrent conditions, ensuring safe and efficient operation. With features tailored for automation and electrical applications, it is essential for maintaining system integrity and performance.

Features & Benefits

• Monitors both overcurrent and undercurrent conditions
• Supports manual and automatic reset for flexibility
• One SPDT output relay allows for versatile connections
• LED indicators facilitate quick status monitoring and alarm notifications
• Inputs are isolated from the power supply for enhanced safety
• Configurable startup lock and operating times provide greater control

Applications

• Monitors electrical equipment in industrial settings
• Provides effective overcurrent protection in mechanical systems
• Compatible with various commercially available current transformers
• Suitable for installations requiring DIN rail mount relays
• Ideal for current sensing in diverse automation

How does the startup lock feature work?

The startup lock can be set from 0 to 30 seconds, activating when the input reaches approximately 30% of the set value to prevent unintended operation.

Can I connect different types of current transformers?

Yes, while the preferred model is designed for specific transformers, it can also accept commercially available CTs within defined limits.

What is the recommended wiring method for connections?

For consistent performance, solid wires of up to 2.5mm² should be used, and ferrules with insulating sleeves are recommended for twisted wires.

How do I monitor the output status?

The output status can be monitored using the built-in LED indicators for relay operation and alarm conditions.

What is the maximum input current it can handle?

The relay can detect a maximum current of 500mA, depending on the specific settings and model used.

Standards

EN 60947-5-1 pollution level 2 installation category III, UL 508.
Terminal protection IP20.

คุณสมบัติ	Value
Monitoring Application	Current
Electrical Phase	1
Contact Configuration	SPDT
Mounting Type	DIN Rail
Minimum Current Sensed	2mA
Maximum Current Sensed	500mA
Current Sensitivity	Overcurrent, Undercurrent
Series	K8AK-AS
Terminal Type	Screw
Operating Temperature Range	+60°C
Length	100mm
Current Range	10 → 100 mA, 2 → 20 mA, 50 → 500mA
Height	90mm
Dimensions	100 x 22.5 x 90mm
Maximum Operating Temperature	+60°C
Width	22.5mm
Standards Met	CE
Minimum Operating Temperature	-20°C
