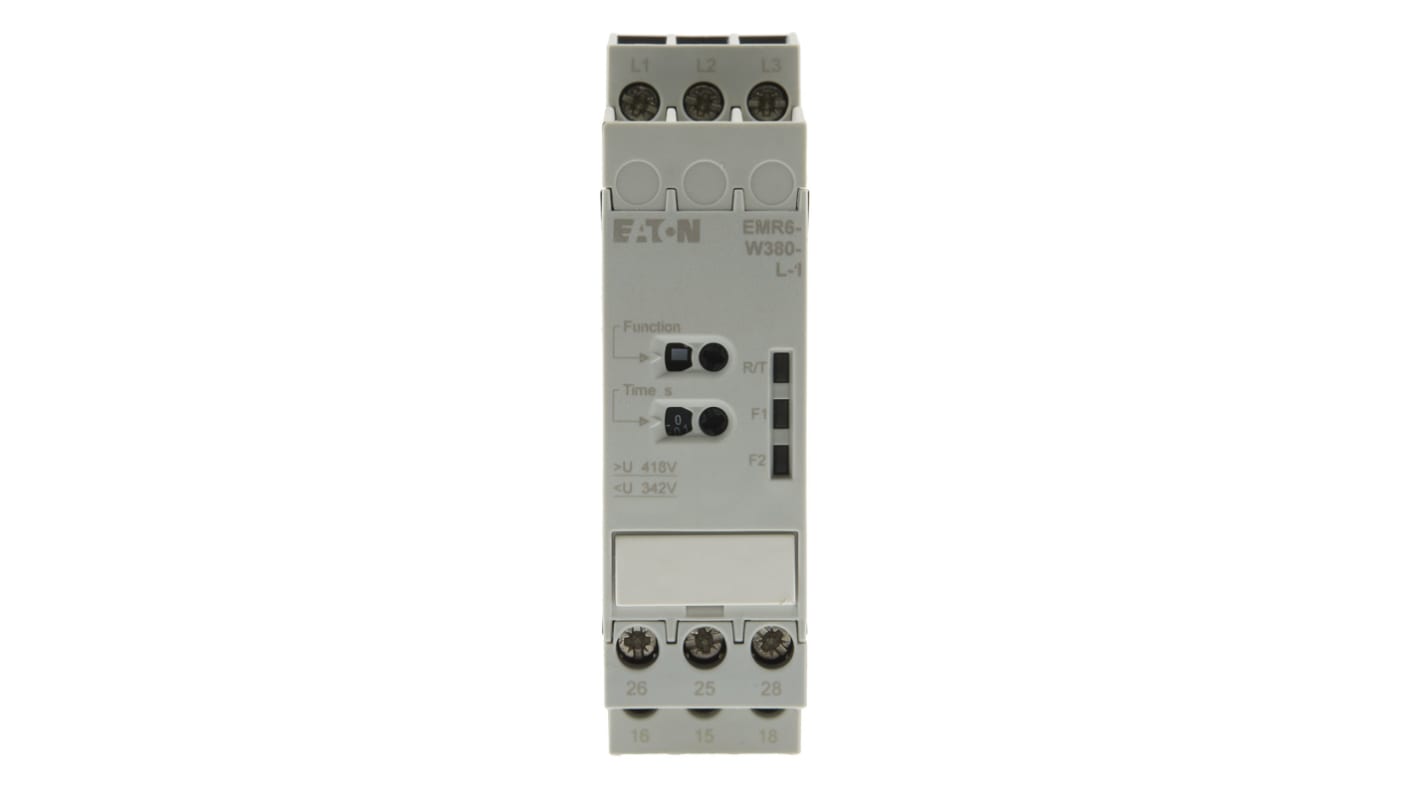

Eaton Phase, Voltage Monitoring Relay, DIN Rail
- RS Stock No.:
- 179-3544
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 184777 EMR6-W380-L-1
- ผู้ผลิต:
- Eaton
ยอดรวมย่อย (1 ชิ้น)*
THB8,391.94
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB8,979.38
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
หมดสต็อกชั่วคราว
- จะส่งได้หลังจากวันที่ 23 กุมภาพันธ์ 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB8,391.94 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 179-3544
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 184777 EMR6-W380-L-1
- ผู้ผลิต:
- Eaton
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Eaton | |
| Monitoring Application | Phase, Voltage | |
| Voltage Sensitivity | Overvoltage, Undervoltage | |
| Mounting Type | DIN Rail | |
| Phase Sensitivity | Phase Failure, Phase Sequence | |
| Time Delay | 0.1 → 30s | |
| Frequency Sensing Range | 50 → 60Hz | |
| Minimum Operating Temperature | -25°C | |
| Terminal Type | Screw | |
| Maximum Voltage Sensed | 380V ac | |
| Length | 109.5mm | |
| Maximum Operating Temperature | +60°C | |
| Dimensions | 109.5 x 22.5 x 78mm | |
| Minimum Frequency Sensed | 50Hz | |
| Operating Temperature Range | +60°C | |
| Maximum Frequency Sensed | 60Hz | |
| Height | 78mm | |
| Width | 22.5mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Eaton | ||
Monitoring Application Phase, Voltage | ||
Voltage Sensitivity Overvoltage, Undervoltage | ||
Mounting Type DIN Rail | ||
Phase Sensitivity Phase Failure, Phase Sequence | ||
Time Delay 0.1 → 30s | ||
Frequency Sensing Range 50 → 60Hz | ||
Minimum Operating Temperature -25°C | ||
Terminal Type Screw | ||
Maximum Voltage Sensed 380V ac | ||
Length 109.5mm | ||
Maximum Operating Temperature +60°C | ||
Dimensions 109.5 x 22.5 x 78mm | ||
Minimum Frequency Sensed 50Hz | ||
Operating Temperature Range +60°C | ||
Maximum Frequency Sensed 60Hz | ||
Height 78mm | ||
Width 22.5mm | ||
- COO (Country of Origin):
- DE
Eaton Phase and Voltage Monitoring Relay
The Eaton phase and voltage monitoring relay is an ideal protection device for a wide range of switchgear applications. Monitoring a 3 phase power supply is important to protect the electrical devices connected to the supply. Power fluctuations can seriously damage the devices. This relay is capable of monitoring functions related to the power supply like phase sequence, phase imbalance, phase failure, undervoltage and overvoltage. This relay is universally suitable for a large number of applications. It reduces inventory costs and saves time during the equipment selection process. Like any other Eaton relay, this monitoring relay guarantees minimum shutdown time, high efficiency and sustainable long life.
Features and Benefits
• Ambient temperature ranges between -25°C and 60°C
• Burst and surge protection
• Contact configuration: CO
• High shock resistance
• Immune to radiation
• LED status indicators
• Mechanical lifespan of 30M cycles
• Quick response time
• Weather protection
• Burst and surge protection
• Contact configuration: CO
• High shock resistance
• Immune to radiation
• LED status indicators
• Mechanical lifespan of 30M cycles
• Quick response time
• Weather protection
Applications
• Electric engineering
• Factory automation
• Light industrial environments
• Low-voltage switch technology
• Monitoring equipment
• Monitoring machine temperatures
• Process control engineering
• Residential facilities
• Factory automation
• Light industrial environments
• Low-voltage switch technology
• Monitoring equipment
• Monitoring machine temperatures
• Process control engineering
• Residential facilities
Certifications
• CCC approved
• CSA certified
• GL certified
• IEC certified
• IP20 rating protection for terminals
• IP50 rating protection for enclosure
• UL approved
• CSA certified
• GL certified
• IEC certified
• IP20 rating protection for terminals
• IP50 rating protection for enclosure
• UL approved
Note
Eaton formerly known as Moeller
