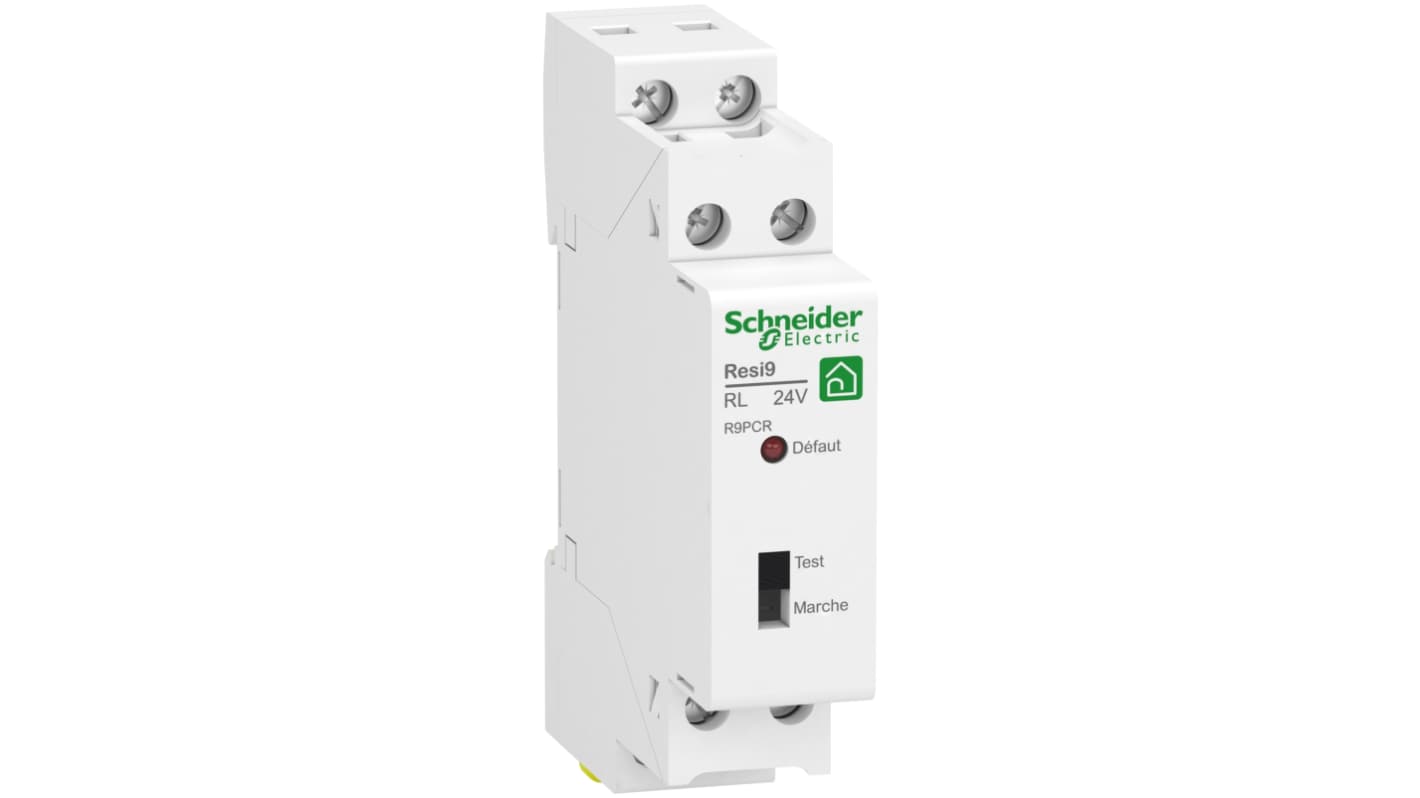

Schneider Electric Monitoring Relay, 1 Phase, SPDT, DIN Rail, 24 V ac

RS Stock No.:: 175-3712
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: R9PCR
ผู้ผลิต:: Schneider Electric

Schneider Electric Monitoring Relay, 1 Phase, SPDT, DIN Rail, 24 V ac

ยอดรวมย่อย (1 ชิ้น)*

THB2,997.61

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB3,207.44

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

เพิ่มอีก 1 ชิ้นจะส่งได้หลังจากวันที่ 16 มีนาคม 2569 ไปอีกประมาณ 7 วันทำการ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB2,997.61

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 175-3712
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: R9PCR
ผู้ผลิต:: Schneider Electric

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Schneider Electric
	Product Type	Monitoring Relay
	Electrical Phase	1
	Contact Configuration	SPDT
	Mount Type	DIN Rail
	Power Consumption	0.5VA
	Switching Voltage	250 V ac
	Terminal Type	Tunnel
	IP Rating	IP20
	Supply AC Voltage	24 V ac
	Contact Current	5A
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	50°C
	Series	Resi9 XP RL
	Standards/Approvals	EN 60742, NF C 60-742
	Length	66mm
	Width	18 mm
	Height	81mm

	เลือกทั้งหมด
	Brand Schneider Electric
	Product Type Monitoring Relay
	Electrical Phase 1
	Contact Configuration SPDT
	Mount Type DIN Rail
	Power Consumption 0.5VA
	Switching Voltage 250 V ac
	Terminal Type Tunnel
	IP Rating IP20
	Supply AC Voltage 24 V ac
	Contact Current 5A
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 50°C
	Series Resi9 XP RL
	Standards/Approvals EN 60742, NF C 60-742
	Length 66mm
	Width 18 mm
	Height 81mm

Datasheet

ล็อกอินเพื่อดูโมเดล CAD

COO (Country of Origin):: FR

Schneider Electric Resi9 XP RL Series Monitoring Relay, 5A Maximum Current, DIN Rail Mounted Type - R9PCR

This monitoring relay serves as an essential control component for effective current and voltage management in residential applications. With a compact design measuring 66 x 18 x 81mm, it is easily mountable on DIN rails, allowing for straightforward integration into various systems. The monitoring relay operates within a temperature range of -20 °C to +50 °C, ensuring reliability and performance under varying conditions.

Features & Benefits

• Current and voltage monitoring for precise electrical oversight

• SPDT configuration enables versatile circuit control

• Maximum rated current of 5A for robust performance

• Designed for operation on a DIN rail for ease of installation

• Features a local signalling red indicator for quick status checks

• Tunnel terminal type for secure and easy connections

Applications

• Utilised for monitoring electrical circuits in residential settings

• Suitable for controlling mechanical ventilation systems

• Ideal for low voltage monitoring tasks

• Helps in managing current sensing within electrical installations

• Employed for automation tasks requiring precise voltage regulation

What are the advantages of using this type of relay for monitoring circuits?

This relay offers precise oversight of current and voltage levels, ensuring enhanced system reliability. Its SPDT configuration allows for flexible applications in various control scenarios, reducing the risk of circuit failure.

How does the temperature range affect the relay’s operation?

Operating effectively between -20 °C and +50 °C ensures that the relay remains functional in diverse environmental conditions, making it suitable for a wide range of applications without compromising on performance.

What type of signalling does the device include for user notifications?

It features a local signalling red indicator on the front face, allowing users to quickly assess the operational status at a glance, thus facilitating immediate troubleshooting if required.

What is the significance of the tunnel terminal type?

The tunnel terminal allows for easy, secure connections, accommodating cables of up to 4 mm². This design simplifies installation and maintenance tasks, ensuring a reliable electrical connection.

Can this relay be used in both current and voltage monitoring applications?

Yes, this monitoring relay is specifically designed for both current and voltage monitoring, making it a versatile choice for various electrical applications, particularly in residential environments.
