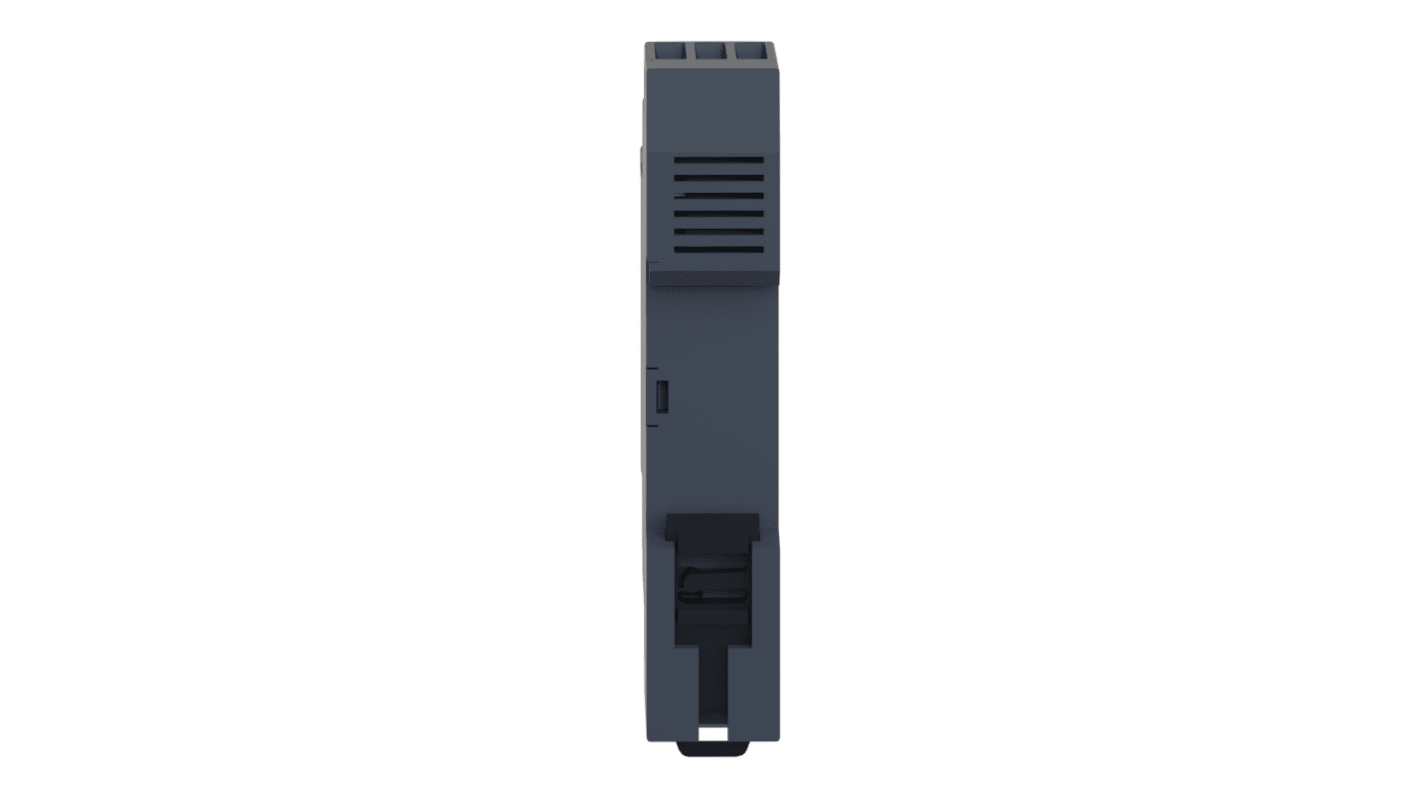

Schneider Electric Voltage Monitoring Relay, 1 Phase, SPDT, 9 → 15V dc, DIN Rail

RS Stock No.:: 146-165
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: RM17UAS14
ผู้ผลิต / Manufacturer:: Schneider Electric

Schneider Electric Voltage Monitoring Relay, 1 Phase, SPDT, 9 → 15V dc, DIN Rail

ราคา / Price Each

THB5,732.47

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB6,133.74

(รวมภาษีมูลค่าเพิ่ม)

4 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)*

* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ

ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB3,500.00 (ไม่รวมภาษี)

Units	ต่อหน่วย
1 +	THB5,732.47

Better World

กลุ่มผลิตภัณฑ์ Better World ของเรานำเสนอผลิตภัณฑ์ที่ช่วยให้คุณตัดสินใจเลือกผลิตภัณฑ์ที่เป็นมิตรต่อสิ่งแวดล้อมและน่าเชื่อถืออย่างง่ายดาย คลิกที่นี่เพื่อดูข้อมูลเพิ่มเติม

RS Stock No.:: 146-165
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: RM17UAS14
ผู้ผลิต / Manufacturer:: Schneider Electric

ล็อกอินเพื่อดูโมเดล CAD

RM17 U Series Voltage Control Relay

Schneider Electric RM17 U single-phase and direct current voltage control relays that monitor over-voltage and under-voltage, with or without memory, or that operate in window mode. The overvoltage and undervoltage threshold values are adjusted via two graduated potentiometers that directly read the Un being monitored.

Checks its own power supply
Clear hinged front cover
LED display of output status
DIN Rail mounting

Standards

NF EN 60255-6 and IEC 60255-6

Approvals

UL, CSA, GL, C-Tick, GOST

Schneider Electric Harmony Control Series Monitoring Relay, SPDT Contact Configuration, Voltage Monitoring Application - RM17UAS14

This monitoring relay offers essential voltage control for electrical systems requiring accurate monitoring. It is designed for single-phase and DC supplies, providing protection against both overvoltage and undervoltage conditions, thus maintaining operational integrity and protecting sensitive equipment in various industrial, electronic, and mechanical applications.

Features & Benefits

• Adjustable time delay from 0.1 to 10 seconds enhances responsiveness.
• Compact design allows for easy installation on DIN rail systems.
• Voltage sensing range between 9-15V DC provides versatility.
• Equipped with SPDT contact configuration for flexible circuit integration.
• Built-in detection of overvoltage and undervoltage improves system reliability.
• Eco-friendly design qualifies as a Better World product.

Applications

• Used in automation systems for voltage fault detection.
• Suitable for single-phase electrical circuits requiring close monitoring.
• Ideal for equipment in environments prone to power fluctuations.
• Employed in safety systems for critical operations.
• Functions effectively with DC supplies to protect load integrity.

What is the maximum current this relay can handle?

It can handle a maximum switching current of 5A AC/DC.

How do I adjust the time delay?

The time delay can be adjusted between 0.1 and 10 seconds using the designated control feature.

Is it suitable for use in harsh environments?

Yes, it operates in temperatures ranging from -20°C to +50°C.

What kind of connections does it support?

It supports screw terminal connections, accommodating various conductor sizes.

Can it be used for monitoring multiple voltage levels?

This device is specifically designed for monitoring within a voltage range of 9-15V DC.

Approvals

UL, CSA, GL, C-Tick, GOST

Standards

NF EN 60255-6 and IEC 60255-6

Schneider Electric Voltage, Current, Phase & Motor Protection

คุณสมบัติ	Value
Monitoring Application	Voltage
Electrical Phase	1
Voltage Sensing Range	9 → 15V dc
Contact Configuration	SPDT
Voltage Sensitivity	Overvoltage, Self Powered, Undervoltage
Mounting Type	DIN Rail
Time Delay	0.1 → 10s
Series	Harmony Control
Better World Product	Yes
Better World Verification	Green Premium
Maximum Voltage Sensed	15V dc
Maximum Operating Temperature	+50°C
Width	17.5mm
Minimum Operating Temperature	-20°C
Terminal Type	Screw
Operating Temperature Range	+50°C
Special Features	IP20 Terminals
Standards Met	CE, CSA, UL
Dimensions	72 x 17.5 x 90mm
Length	72mm
Minimum Voltage Sensed	9V dc
Height	90mm
