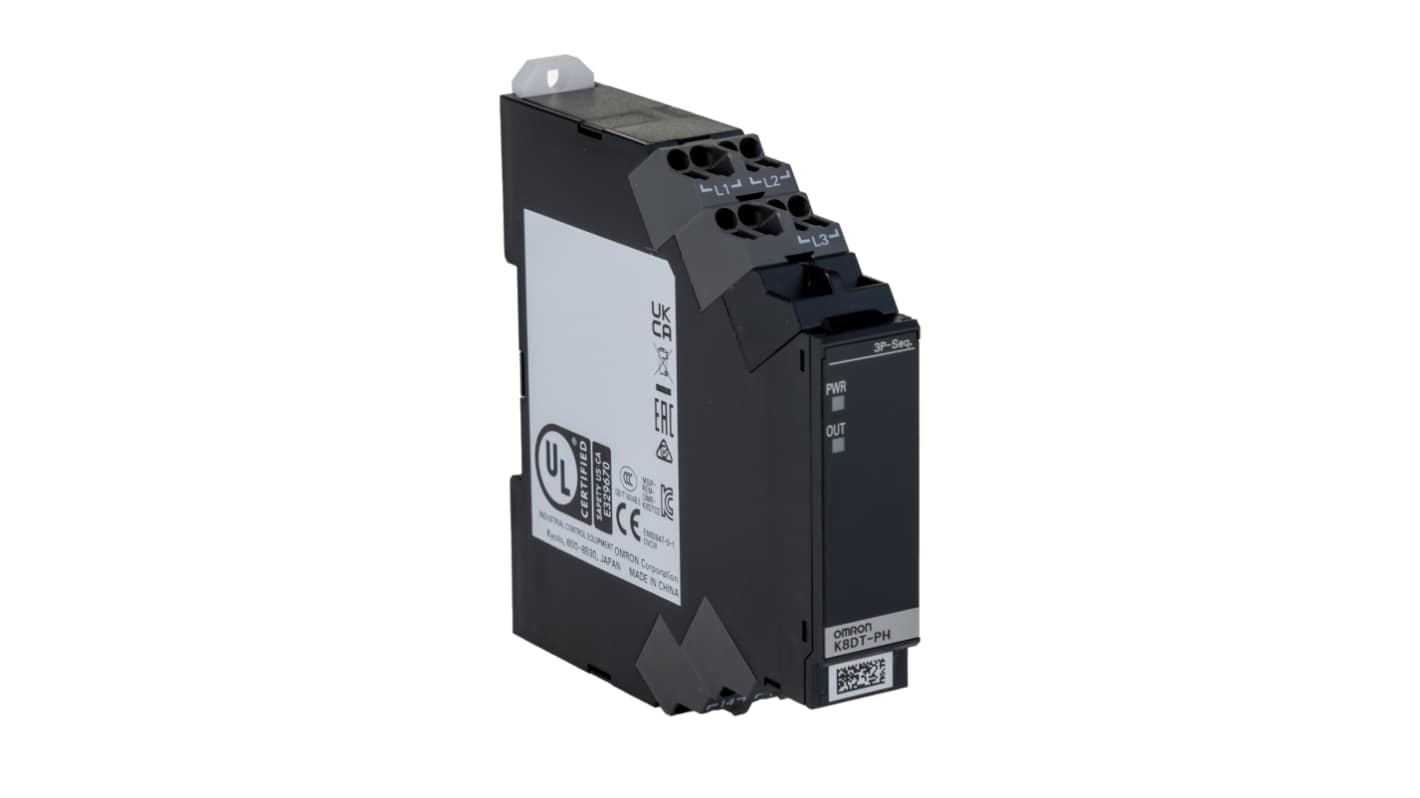

Omron Monitoring Relay, 3 Phase, SPDT, DIN Rail, 200V ac, 480 V ac
- RS Stock No.:
- 111-3135
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- K8DT-PH1CN
- ผู้ผลิต:
- Omron
ยอดรวมย่อย (1 ชิ้น)*
THB2,953.41
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB3,160.15
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 9 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 8 ชิ้นจะส่งได้หลังจากวันที่ 26 พฤษภาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB2,953.41 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 111-3135
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- K8DT-PH1CN
- ผู้ผลิต:
- Omron
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Omron | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 3 | |
| Function | Phase Sequence | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Power Consumption | 2.6VA | |
| Terminal Type | Push-in | |
| IP Rating | IP20 | |
| Supply AC Voltage | 200, 480V ac | |
| Contact Current | 10A | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | EN 60947-5-1, RoHS, UL 60947-5-1 | |
| Length | 90mm | |
| Width | 17.5mm | |
| Series | K8DT-PH | |
| Height | 90mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Omron | ||
Product Type Monitoring Relay | ||
Electrical Phase 3 | ||
Function Phase Sequence | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Power Consumption 2.6VA | ||
Terminal Type Push-in | ||
IP Rating IP20 | ||
Supply AC Voltage 200, 480V ac | ||
Contact Current 10A | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals EN 60947-5-1, RoHS, UL 60947-5-1 | ||
Length 90mm | ||
Width 17.5mm | ||
Series K8DT-PH | ||
Height 90mm | ||
- COO (Country of Origin):
- CN
Omron K8DT-PH Series Monitoring Relay, 3 Electrical Phases, SPDT Contact Configuration - K8DT-PH1CN
This monitoring relay is designed for phase monitoring applications, ensuring optimal performance in electrical systems. The unit features a compact DIN rail mounting design with dimensions of 90 x 17.5 x 90 mm. With a high sensitivity to phase loss and sequence issues, it operates effectively within a frequency range of 45 to 65 Hz, making it a reliable choice for industrial monitoring needs.
Features & Benefits
• Monitors phase sequence for safe operation
• Offers a single-pole, double-throw (SPDT) contact configuration
• Built with IP20 touch-safe terminals for enhanced safety
• Supports operating temperatures from -20°C to +60°C
• Utilises push-in terminals for quick and easy connections
Applications
• Used in automated machinery for phase protection
• Used in electrical panels to monitor phase conditions
• Suitable for systems requiring phase sequence verification
• Utilised in various industrial demanding efficiency
How does this device handle phase loss situations?
The device continuously monitors the phase conditions and can immediately detect any loss, providing an essential safeguard against potential risks related to equipment failure.
What type of environments is it suitable for?
The relay is designed to operate effectively in industrial settings with a broad temperature range, making it ideal for environments where temperature variations occur.
What connections does this relay support?
It features push-in terminals, allowing for swift and secure connections, simplifying installation without the need for specialised tools.
Can it be mounted on standard DIN rails?
Yes, the design accommodates standard DIN rail installations, ensuring compatibility with existing setups and simplifying integration into electrical systems.
Is this product able to sense frequency variations?
Yes, it operates within a frequency range of 45 to 65 Hz, making it responsive to fluctuations in frequency, an essential feature for phase monitoring applications.
Standards
EN 60947-5-1, UL 60947-5-1, IP 20 Terminals
