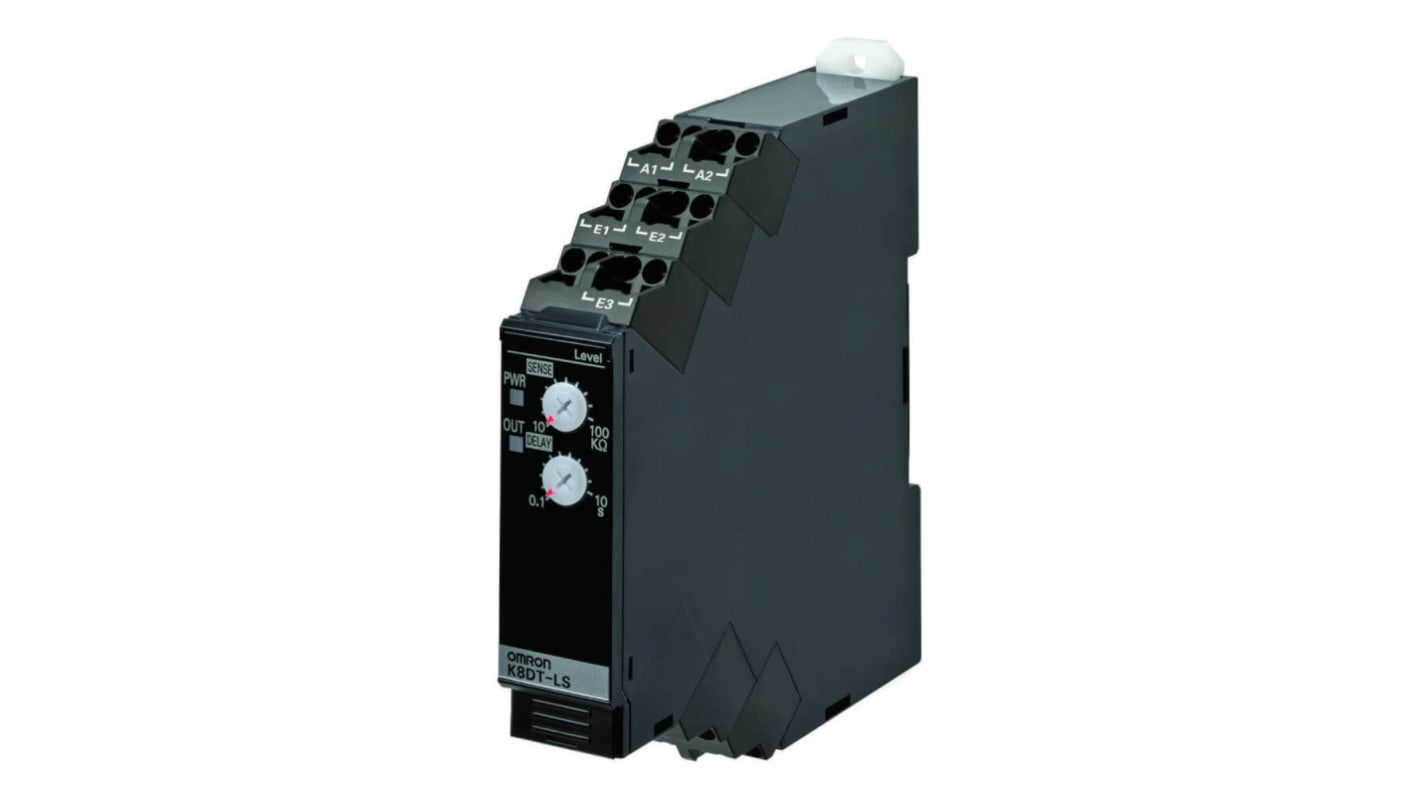

Omron Level Monitoring Relay, 3 Phase, SPDT, DIN Rail

RS Stock No.:: 111-3124
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: K8DT-LS1CD
ผู้ผลิต:: Omron

Omron Level Monitoring Relay, 3 Phase, SPDT, DIN Rail

มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 ชิ้น)*

THB4,202.64

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB4,496.82

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

11 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
เพิ่มอีก 51 ชิ้นจะส่งได้หลังจากวันที่ 24 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 - 4	THB4,202.64
5 +	THB3,458.75

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 111-3124
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: K8DT-LS1CD
ผู้ผลิต:: Omron

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Omron
	Monitoring Application	Level
	Electrical Phase	3
	Contact Configuration	SPDT
	Mounting Type	DIN Rail
	Time Delay	0.1 → 10s
	Series	K8DT-LS
	Terminal Type	Push In
	Number of Poles	1
	Standards Met	CE, UL
	Special Features	IP20 Terminal
	Length	90mm
	Height	90mm
	Width	17.5mm
	Maximum Operating Temperature	+60°C
	Minimum Operating Temperature	-20°C
	Dimensions	90 x 17.5 x 90mm
	Operating Temperature Range	-20 → +60°C

	เลือกทั้งหมด
	Brand Omron
	Monitoring Application Level
	Electrical Phase 3
	Contact Configuration SPDT
	Mounting Type DIN Rail
	Time Delay 0.1 → 10s
	Series K8DT-LS
	Terminal Type Push In
	Number of Poles 1
	Standards Met CE, UL
	Special Features IP20 Terminal
	Length 90mm
	Height 90mm
	Width 17.5mm
	Maximum Operating Temperature +60°C
	Minimum Operating Temperature -20°C
	Dimensions 90 x 17.5 x 90mm
	Operating Temperature Range -20 → +60°C

COO (Country of Origin):: CN

Omron K8DT-LS Series Monitoring Relay, SPDT Contact Configuration, DIN Rail Mount - K8DT-LS1CD

This monitoring relay is intended for accurate level monitoring in industrial environments. It provides dependable functionality across a variety of automation and electrical applications, making it a key component for effective system management. With compatibility for DIN rail mounting, this robust unit is well-suited for applications that require a compact and efficient solution.

Features & Benefits

• Designed for 3-phase systems to enhance operational safety
• SPDT configuration allows flexibility in relay functions
• Adjustable time delay from 0.1s to 10s for optimal performance
• IP20 rated for terminal protection in industrial settings

Applications

• Utilised for level control in tanks and reservoirs
• Suitable for monitoring liquid levels in various industrial processes
• Employed in automated systems requiring precise control
• Effective in machinery needing SPDT relay for switching

How is the relay adjusted for different time delay settings?

The time delay can be set using the designated control dial on the front of the unit, allowing for quick adjustments.

What mounting options are compatible with this relay?

This device is specifically designed for DIN rail mounting, ensuring it fits securely within standard electrical panels.

Can this relay withstand extreme temperatures?

It operates effectively within a temperature range of -20 to +60°C, suitable for various industrial conditions.

What type of terminals does it feature for connections?

The relay includes push-in terminals for straightforward and secure wiring connections, simplifying installation.

Standards

EN 61010-1, EN 61326-1, UL 31010-1, IP 20 Terminals

Omron K8DT Series Control Relays

Omron K8DT measuring and monitoring relays are part of the Value Design for Panel concept that takes control panel design and manufacturing to a new level. The K8DT series protect important equipment from damage using various measuring and monitoring relays that conform to international safety standards. Low power consumption and low heat generation design offer a long service life.

Space Saving

The K8DT series can help downsize control panels by reducing the width between wiring ducts and void panel space. The slim body allows space to mount more devices in the same size of control panel to increase control panel functionality.

Push-In Plus Terminals

Push-In Plus terminal blocks on all K8DT relays reduce the time and work involved in wiring. The Push-In Plus terminals allow solid and stranded wires with pin terminals or ferrules to be inserted without the need for tools.
