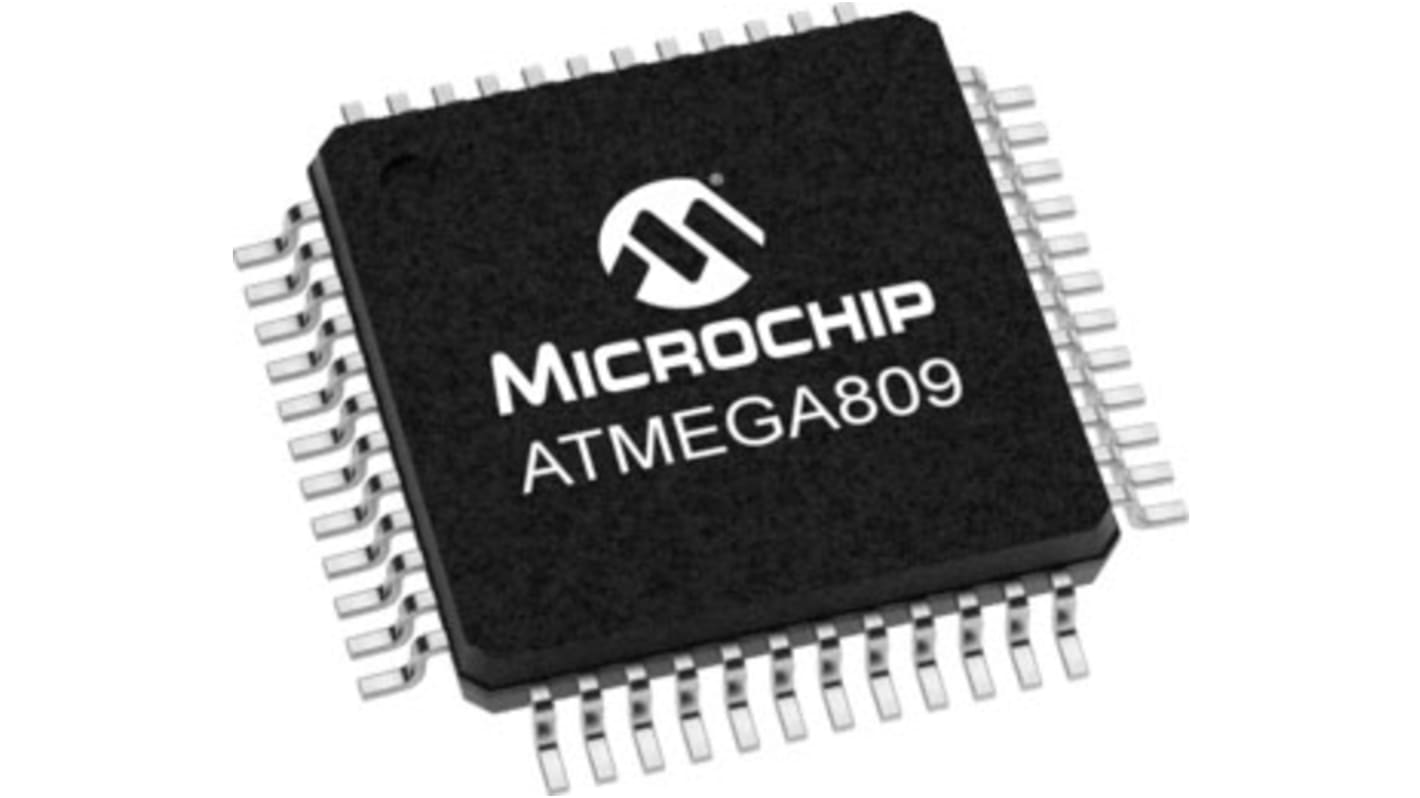

Microchip, 8bit AVR, ATmega Microcontroller, 20MHz, 8 kB Flash, 48-Pin TQFP
- RS Stock No.:
- 193-6195
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATMEGA809-AF
- ผู้ผลิต:
- Microchip
ยอดรวมย่อย (1 แพ็ค แพ็คละ 10 ชิ้น)*
THB544.35
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB582.45
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- จะส่งได้หลังจากวันที่ 01 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ชิ้น | ต่อหน่วย | ต่อแพ็ค* |
|---|---|---|
| 10 - 60 | TMB54.435 | TMB544.35 |
| 70 - 120 | TMB53.074 | TMB530.74 |
| 130 + | TMB52.258 | TMB522.58 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 193-6195
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATMEGA809-AF
- ผู้ผลิต:
- Microchip
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Microchip | |
| Family Name | ATmega | |
| Package Type | TQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 48 | |
| Device Core | AVR | |
| Data Bus Width | 8bit | |
| Program Memory Size | 8 kB | |
| Maximum Frequency | 20MHz | |
| RAM Size | 1 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 0 | |
| Number of SPI Channels | 1 | |
| Number of I2C Channels | 1 | |
| Number of UART Channels | 4 | |
| Number of CAN Channels | 0 | |
| Number of USART Channels | 4 | |
| Typical Operating Supply Voltage | 1.8 → 5.5 V | |
| Pulse Width Modulation | 0 | |
| Width | 7.1mm | |
| Dimensions | 7.1 x 7.1 x 1.05mm | |
| Number of Ethernet Channels | 0 | |
| Number of LIN Channels | 0 | |
| Maximum Operating Temperature | +125 °C | |
| Number of ADC Units | 1 | |
| Height | 1.05mm | |
| Number of PCI Channels | 0 | |
| ADCs | 16 x 10 bit | |
| Maximum Number of Ethernet Channels | 0 | |
| Length | 7.1mm | |
| Minimum Operating Temperature | -40 °C | |
| Program Memory Type | Flash | |
| Instruction Set Architecture | RISC | |
เลือกทั้งหมด | ||
|---|---|---|
Brand Microchip | ||
Family Name ATmega | ||
Package Type TQFP | ||
Mounting Type Surface Mount | ||
Pin Count 48 | ||
Device Core AVR | ||
Data Bus Width 8bit | ||
Program Memory Size 8 kB | ||
Maximum Frequency 20MHz | ||
RAM Size 1 kB | ||
USB Channels 0 | ||
Number of PWM Units 0 | ||
Number of SPI Channels 1 | ||
Number of I2C Channels 1 | ||
Number of UART Channels 4 | ||
Number of CAN Channels 0 | ||
Number of USART Channels 4 | ||
Typical Operating Supply Voltage 1.8 → 5.5 V | ||
Pulse Width Modulation 0 | ||
Width 7.1mm | ||
Dimensions 7.1 x 7.1 x 1.05mm | ||
Number of Ethernet Channels 0 | ||
Number of LIN Channels 0 | ||
Maximum Operating Temperature +125 °C | ||
Number of ADC Units 1 | ||
Height 1.05mm | ||
Number of PCI Channels 0 | ||
ADCs 16 x 10 bit | ||
Maximum Number of Ethernet Channels 0 | ||
Length 7.1mm | ||
Minimum Operating Temperature -40 °C | ||
Program Memory Type Flash | ||
Instruction Set Architecture RISC | ||
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
