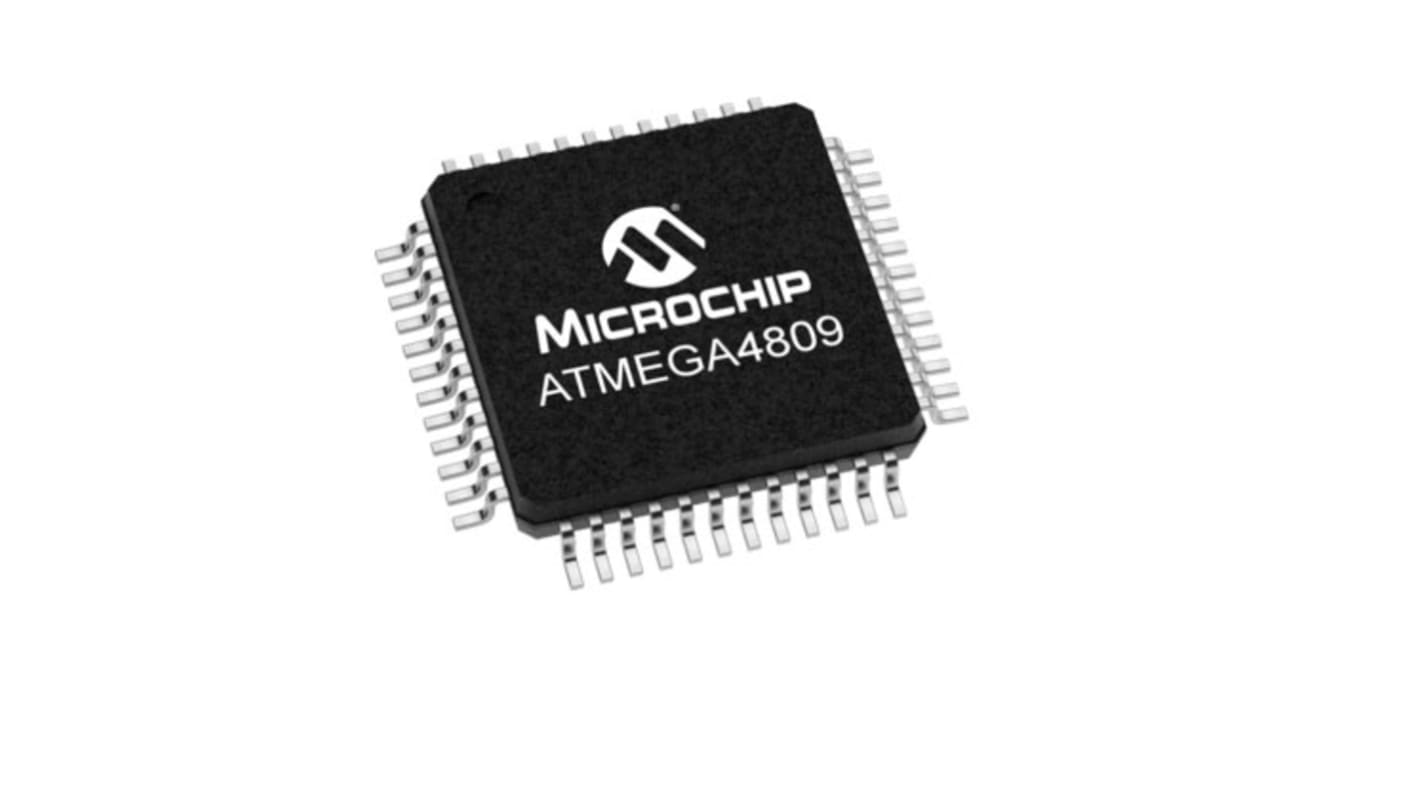

Microchip, 8bit AVR, ATmega Microcontroller, 20MHz, 48 kB Flash, 48-Pin TQFP
- RS Stock No.:
- 193-6183
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATMEGA4809-AF
- ผู้ผลิต:
- Microchip
ยอดรวมย่อย (1 แพ็ค แพ็คละ 5 ชิ้น)*
THB346.56
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB370.82
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- จะส่งได้หลังจากวันที่ 26 มกราคม 2569 ไปอีกประมาณ 7 วันทำการ
ชิ้น | ต่อหน่วย | ต่อแพ็ค* |
|---|---|---|
| 5 - 60 | THB69.312 | THB346.56 |
| 65 - 120 | THB67.578 | THB337.89 |
| 125 + | THB66.54 | THB332.70 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 193-6183
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATMEGA4809-AF
- ผู้ผลิต:
- Microchip
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Microchip | |
| Family Name | ATmega | |
| Package Type | TQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 48 | |
| Device Core | AVR | |
| Data Bus Width | 8bit | |
| Program Memory Size | 48 kB | |
| Maximum Frequency | 20MHz | |
| RAM Size | 6 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 0 | |
| Number of SPI Channels | 1 | |
| Number of CAN Channels | 0 | |
| Number of UART Channels | 4 | |
| Typical Operating Supply Voltage | 1.8 → 5.5 V | |
| Number of USART Channels | 4 | |
| Number of I2C Channels | 1 | |
| Height | 1.05mm | |
| Number of LIN Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Number of PCI Channels | 0 | |
| ADCs | 16 x 10 bit | |
| Length | 7mm | |
| Number of ADC Units | 1 | |
| Pulse Width Modulation | 0 | |
| Dimensions | 7 x 7 x 1.05mm | |
| Width | 7mm | |
| Maximum Operating Temperature | +125 °C | |
| Program Memory Type | Flash | |
| Minimum Operating Temperature | -40 °C | |
| Instruction Set Architecture | RISC | |
| Maximum Number of Ethernet Channels | 0 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Microchip | ||
Family Name ATmega | ||
Package Type TQFP | ||
Mounting Type Surface Mount | ||
Pin Count 48 | ||
Device Core AVR | ||
Data Bus Width 8bit | ||
Program Memory Size 48 kB | ||
Maximum Frequency 20MHz | ||
RAM Size 6 kB | ||
USB Channels 0 | ||
Number of PWM Units 0 | ||
Number of SPI Channels 1 | ||
Number of CAN Channels 0 | ||
Number of UART Channels 4 | ||
Typical Operating Supply Voltage 1.8 → 5.5 V | ||
Number of USART Channels 4 | ||
Number of I2C Channels 1 | ||
Height 1.05mm | ||
Number of LIN Channels 0 | ||
Number of Ethernet Channels 0 | ||
Number of PCI Channels 0 | ||
ADCs 16 x 10 bit | ||
Length 7mm | ||
Number of ADC Units 1 | ||
Pulse Width Modulation 0 | ||
Dimensions 7 x 7 x 1.05mm | ||
Width 7mm | ||
Maximum Operating Temperature +125 °C | ||
Program Memory Type Flash | ||
Minimum Operating Temperature -40 °C | ||
Instruction Set Architecture RISC | ||
Maximum Number of Ethernet Channels 0 | ||
Three sleep modes
Idle
Standby
Power Down
Event System
Watchdog Timer (WDT)
Power-On Reset (POR)
Brown-Out Detection (BOD)
Single pin programming and debugging interface (UPDI)
16 Channel 10-bit ADC with Voltage Reference
Analog Comparator (AC)
Configurable Custom Logic (CCL)
5x 16-bit Timer (TCA / TCB)
Cyclical Redundancy Check (CRC/SCAN)
SPI / I2C / USART
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
