- RS Stock No.:
- 176-5489
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC18F46K42-I/P
- ผู้ผลิต / Manufacturer:
- Microchip
10 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Tube of 10)
THB124.048
(exc. VAT)
THB132.731
(inc. VAT)
Units | Per unit | Per Tube* |
10 - 10 | THB124.048 | THB1,240.48 |
20 - 90 | THB119.212 | THB1,192.12 |
100 + | THB117.686 | THB1,176.86 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 176-5489
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC18F46K42-I/P
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- US
รายละเอียดสินค้า / Product Details

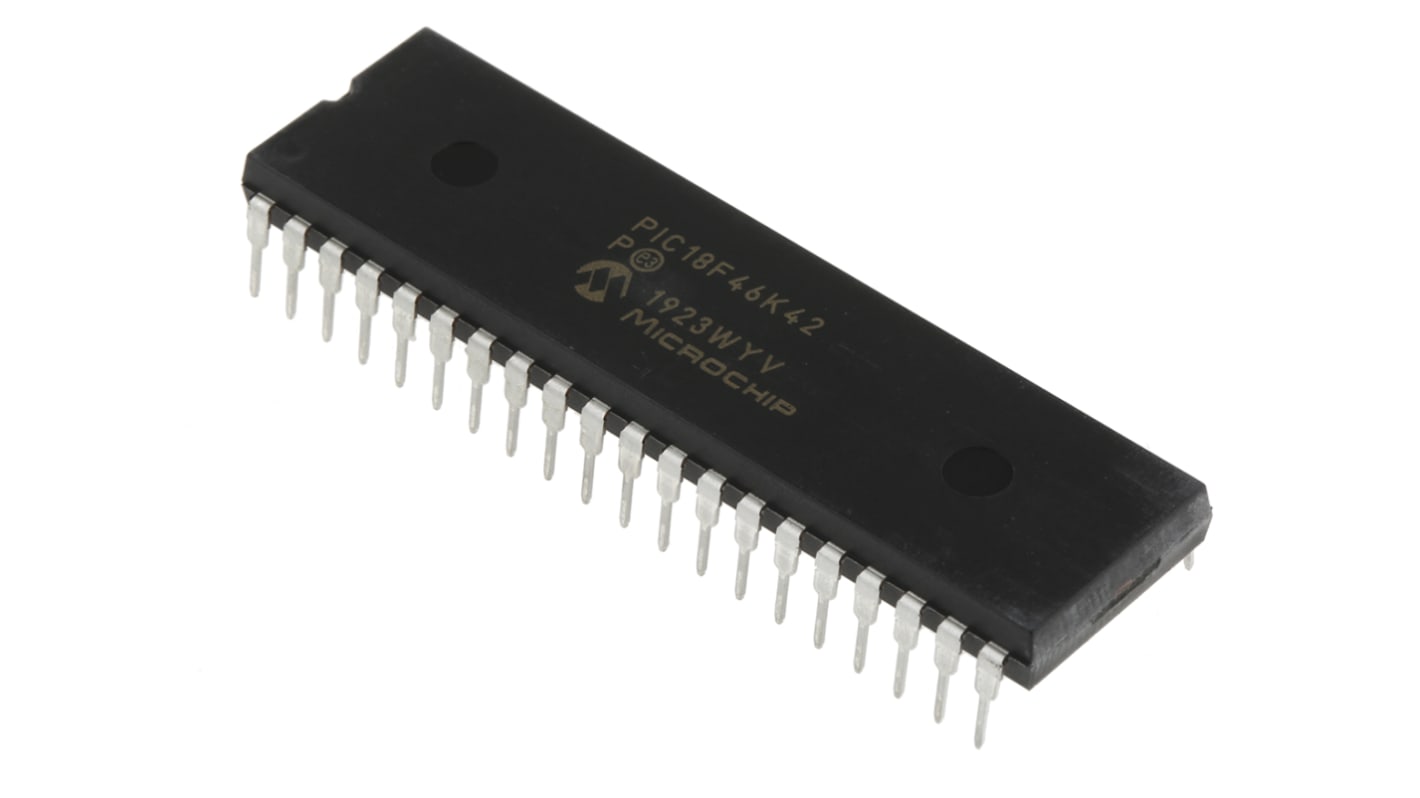

Microchip Technology Microcontroller
The Microchip Technology PIC18F46K42-I/P family type, PDIP package, through-hole mount, 40-pin 8-bit microcontroller. It has a maximum voltage rating of 5.5V. The microcontroller operates at a maximum speed of 64MHz and features 64kb ISP flash program memory, 4096 bytes of SRAM and 1024bytes of EEPROM. It offers low power features, performance improvements and design flexibility options that easily and rapidly enable the complex set of functions required by many embedded control applications.
Features and Benefits
36 numbers of I/O pins
5-bit Digital-to-Analog Converter (DAC)
Asynchronous UART, RS-232, RS-485 compatible
Device Information Area (DIA) for data storage of temp sensor factory calibration value, factory ID and FVR values for ADC and COMP
DMA, SMBus and PMBUSTM compatible
IDLE, SLEEP and DOZE modes selectively for power reduction
Interrupt vector table for faster interrupt response time
It has 12-bit Digital-to-Analogue (ADC2) with computation
Low power consumption and system flexibility
Memory access partition (MAP) - Customize flash partitioning with bootloader write protection
Operating temperature ranges between -40°C and 125°C
Programmable single or dual priority
Separate transmit and receive buffers with 2-byte FIFO and DMA capabilities
Two comparators
Two level hardware context saving
Zero cross detect (ZCD)
5-bit Digital-to-Analog Converter (DAC)
Asynchronous UART, RS-232, RS-485 compatible
Device Information Area (DIA) for data storage of temp sensor factory calibration value, factory ID and FVR values for ADC and COMP
DMA, SMBus and PMBUSTM compatible
IDLE, SLEEP and DOZE modes selectively for power reduction
Interrupt vector table for faster interrupt response time
It has 12-bit Digital-to-Analogue (ADC2) with computation
Low power consumption and system flexibility
Memory access partition (MAP) - Customize flash partitioning with bootloader write protection
Operating temperature ranges between -40°C and 125°C
Programmable single or dual priority
Separate transmit and receive buffers with 2-byte FIFO and DMA capabilities
Two comparators
Two level hardware context saving
Zero cross detect (ZCD)
Applications
Embed designs
Household appliances
Industrial
Household appliances
Industrial
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Family Name | PIC18 |
Package Type | PDIP |
Mounting Type | Through Hole |
Pin Count | 40 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 64 kB |
Maximum Frequency | 64MHz |
RAM Size | 4.096 kB |
USB Channels | 1 |
Number of PWM Units | 1 x 10 bit |
Number of SPI Channels | 1 |
Number of USART Channels | 2 |
Typical Operating Supply Voltage | 1.8 → 5.5 V |
Number of CAN Channels | 0 |
Number of I2C Channels | 2 |
Number of UART Channels | 2 |
Dimensions | 2.09 x 0.58 x 0.19mm |
Program Memory Type | Flash |
Maximum Number of Ethernet Channels | 0 |
Width | 0.58mm |
Minimum Operating Temperature | -40 °C |
Instruction Set Architecture | RISC |
ADCs | 35 x 12 bit |
Number of LIN Channels | 1 |
Number of ADC Units | 1 |
Height | 0.19mm |
Maximum Operating Temperature | +85 °C |
Number of Ethernet Channels | 0 |
Number of PCI Channels | 0 |
Pulse Width Modulation | 1 (1 x 10 bit) |
Length | 2.09mm |
