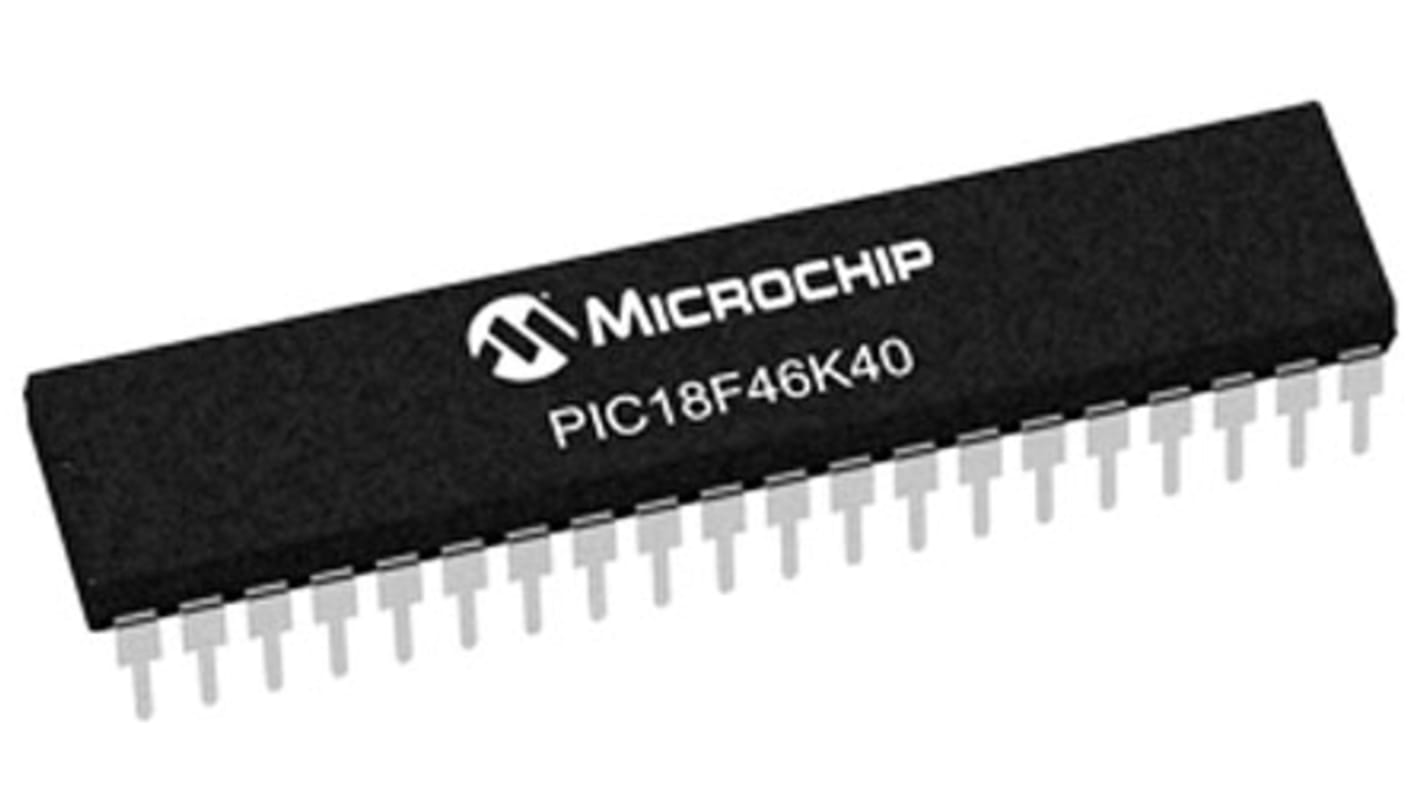

Microchip, 8bit PIC, PIC18F Microcontroller, 64MHz, 64 kB Flash, 40-Pin DIP
- RS Stock No.:
- 126-2155
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC18F46K40-I/P
- ผู้ผลิต:
- Microchip
ยอดรวมย่อย (1 แพ็ค แพ็คละ 5 ชิ้น)*
THB518.26
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB554.54
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- เพิ่มอีก 10 ชิ้นจะส่งได้หลังจากวันที่ 03 พฤศจิกายน 2568 ไปอีกประมาณ 7 วันทำการ
- เพิ่มอีก 140 ชิ้นจะส่งได้หลังจากวันที่ 10 พฤศจิกายน 2568 ไปอีกประมาณ 7 วันทำการ
ชิ้น | ต่อหน่วย | ต่อแพ็ค* |
|---|---|---|
| 5 - 5 | THB103.652 | THB518.26 |
| 10 - 20 | THB101.06 | THB505.30 |
| 25 - 45 | THB98.534 | THB492.67 |
| 50 - 95 | THB96.072 | THB480.36 |
| 100 + | THB93.67 | THB468.35 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 126-2155
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC18F46K40-I/P
- ผู้ผลิต:
- Microchip
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Microchip | |
| Family Name | PIC18F | |
| Package Type | DIP | |
| Mounting Type | Surface Mount | |
| Pin Count | 40 | |
| Device Core | PIC | |
| Data Bus Width | 8bit | |
| Program Memory Size | 64 kB | |
| Maximum Frequency | 64MHz | |
| RAM Size | 3.728 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 x 10 bit | |
| Number of SPI Channels | 2 | |
| Number of I2C Channels | 2 | |
| Number of USART Channels | 2 | |
| Number of UART Channels | 2 | |
| Number of CAN Channels | 0 | |
| Typical Operating Supply Voltage | 2.3 → 5.5 V | |
| Length | 53.21mm | |
| Number of ADC Units | 1 | |
| Maximum Operating Temperature | +85 °C | |
| Instruction Set Architecture | RISC | |
| Maximum Number of Ethernet Channels | 0 | |
| Width | 14.732mm | |
| Height | 4.95mm | |
| Number of LIN Channels | 1 | |
| Number of Ethernet Channels | 0 | |
| Number of PCI Channels | 0 | |
| Program Memory Type | Flash | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 53.21 x 14.732 x 4.95mm | |
| ADCs | 35 x 10 bit | |
| Pulse Width Modulation | 1 (2 x 10 bit) | |
เลือกทั้งหมด | ||
|---|---|---|
Brand Microchip | ||
Family Name PIC18F | ||
Package Type DIP | ||
Mounting Type Surface Mount | ||
Pin Count 40 | ||
Device Core PIC | ||
Data Bus Width 8bit | ||
Program Memory Size 64 kB | ||
Maximum Frequency 64MHz | ||
RAM Size 3.728 kB | ||
USB Channels 0 | ||
Number of PWM Units 1 x 10 bit | ||
Number of SPI Channels 2 | ||
Number of I2C Channels 2 | ||
Number of USART Channels 2 | ||
Number of UART Channels 2 | ||
Number of CAN Channels 0 | ||
Typical Operating Supply Voltage 2.3 → 5.5 V | ||
Length 53.21mm | ||
Number of ADC Units 1 | ||
Maximum Operating Temperature +85 °C | ||
Instruction Set Architecture RISC | ||
Maximum Number of Ethernet Channels 0 | ||
Width 14.732mm | ||
Height 4.95mm | ||
Number of LIN Channels 1 | ||
Number of Ethernet Channels 0 | ||
Number of PCI Channels 0 | ||
Program Memory Type Flash | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 53.21 x 14.732 x 4.95mm | ||
ADCs 35 x 10 bit | ||
Pulse Width Modulation 1 (2 x 10 bit) | ||
PIC18F26/45/46K40 8-bit Low Power Microcontrollers
Internal 64MHz oscillator
Operating voltage: 2.3 to 5.5V
64 KB Flash program memory with self-read/write capability
35-channel 10-bit ADC, 5-bit DAC and 2 comparators
Hardware Capacitive Voltage Divider (CVD) for mTouch buttons/sliders
1 x Zero-cross detect
Communications: 2 x I2C/SPI and 2 x EUSART with LIN support
In-circuit debug integrated on-chip
In-circuit serial programing (ICSP) via two pins
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
