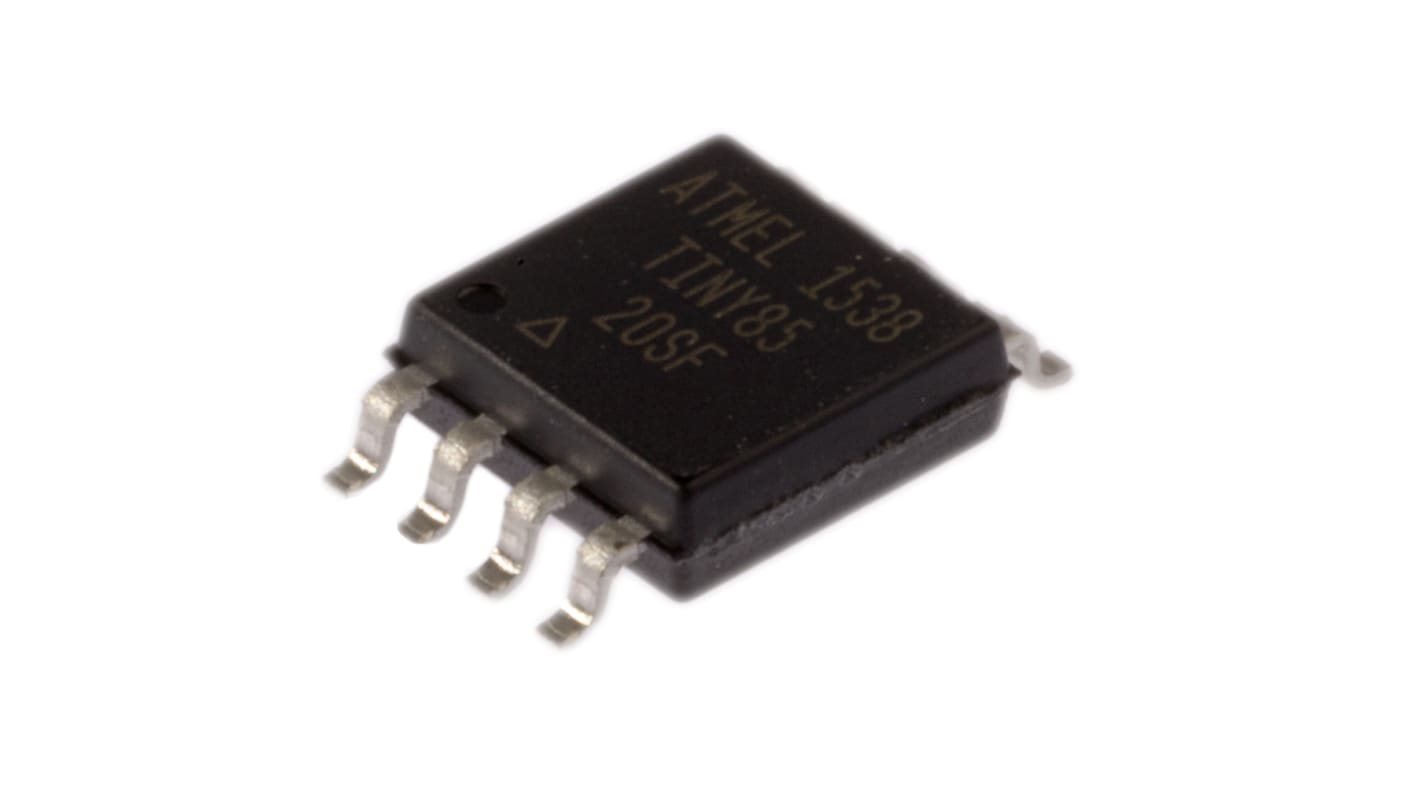

Microchip, 8bit AVR, ATtiny85 Microcontroller, 20MHz, 8 kB Flash, 8-Pin SOIC

The Microchip Technology ATTINY1616 family type, SOIC package, surface mount 8-pin AVR RISC-based 8-bit microcontroller. It has a maximum voltage rating of 5.5V. This microcontroller operates at a maximum speed of 20MHz and features 8kb ISP flash program memory, 521bytes of internal SRAM and 512bytes of EEPROM. By executing powerful instructions in a single clock cycle, it achieves throughputs approaching 1MIPS per MHz allowing the system to optimize power consumption versus processing speed.

• 4-channel 10-bit A/D converter
• 6 programmable I/O lines
• Debug wire for on-chip debugging
• External and internal interrupt sources
• Full static operation
• Low power consumption
• On-chip 2-cycle multiplier
• Only one 8-bit high speed timer/counter with separate pre scaler
• Only one 8-bit timer/counter with pre scaler and two PWM channel
• Operating temperature ranges between -40°C and 85°C
• Power-on reset and programmable brown-out detection
• Programming lock for self-programming flash program and EEPROM data security
• Window watchdog timer (WDT) with separate on-chip oscillator
• Write/Erase cycles- 10,000 flash/100,000 EEPROM

• Consumer appliances
• Home automation
• Industrial
