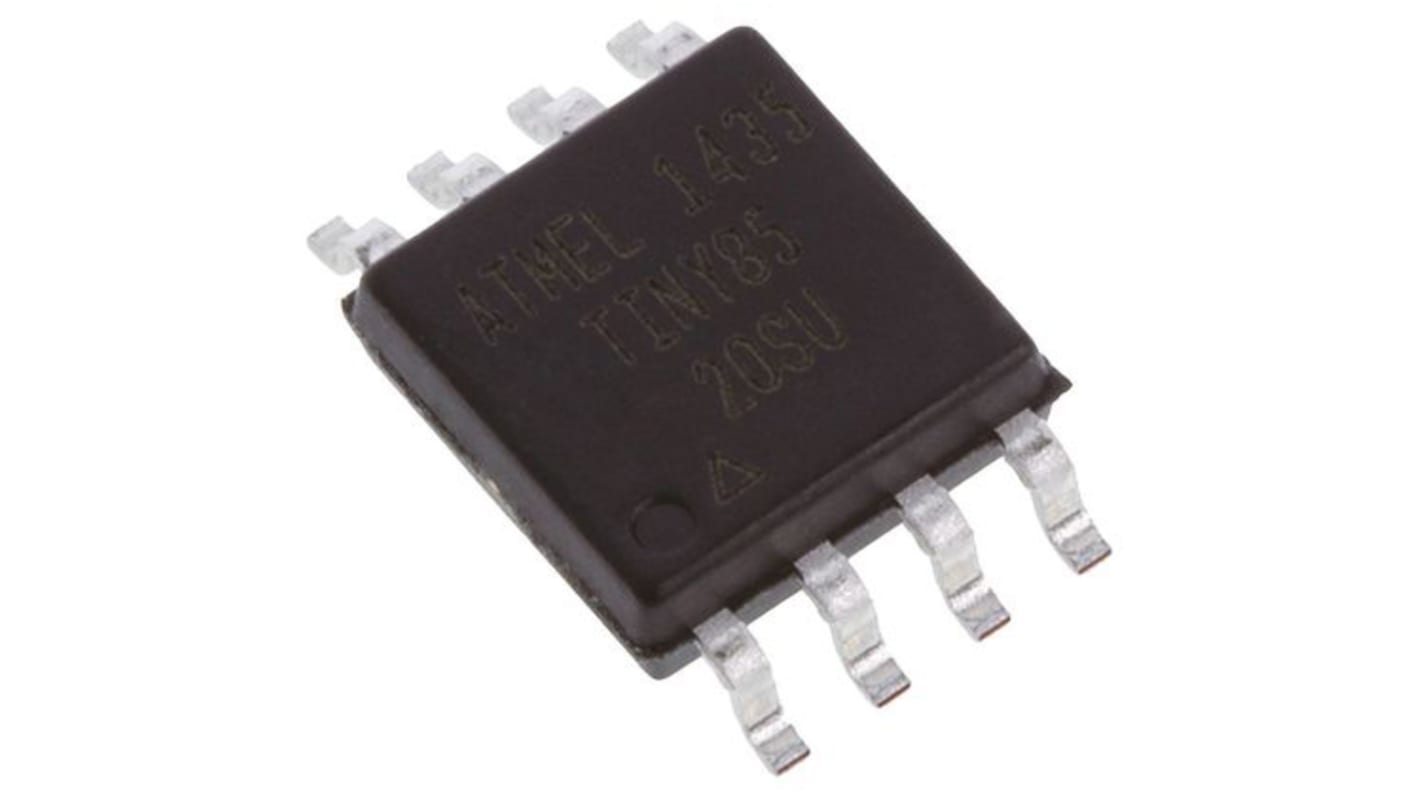

Microchip, 8bit AVR, ATtiny85 Microcontroller, 20MHz, 8 kB Flash, 8-Pin SOIJ
- RS Stock No.:
- 133-1674
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATTINY85-20SU
- ผู้ผลิต:
- Microchip
ยอดรวมย่อย (1 แพ็ค แพ็คละ 5 ชิ้น)*
THB311.64
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB333.455
(รวมภาษีมูลค่าเพิ่ม)
ชิ้น | ต่อหน่วย | ต่อแพ็ค* |
|---|---|---|
| 5 - 20 | THB62.328 | THB311.64 |
| 25 - 95 | THB60.456 | THB302.28 |
| 100 + | THB58.646 | THB293.23 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 133-1674
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATTINY85-20SU
- ผู้ผลิต:
- Microchip
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Microchip | |
| Family Name | ATtiny85 | |
| Package Type | SOIJ | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Device Core | AVR | |
| Data Bus Width | 8bit | |
| Program Memory Size | 8 kB | |
| Maximum Frequency | 20MHz | |
| RAM Size | 512 B | |
| USB Channels | 0 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 1 | |
| Number of UART Channels | 0 | |
| Number of I2C Channels | 1 | |
| Number of CAN Channels | 0 | |
| Typical Operating Supply Voltage | 2.7 → 5.5 V | |
| Number of USART Channels | 0 | |
| Height | 1.91mm | |
| Pulse Width Modulation | 1 (6 Channel) | |
| Dimensions | 5.35 x 5.4 x 1.91mm | |
| Width | 5.4mm | |
| Number of LIN Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Program Memory Type | Flash | |
| Number of PCI Channels | 0 | |
| Maximum Operating Temperature | +85 °C | |
| Number of ADC Units | 1 | |
| Length | 5.35mm | |
| ADCs | 4 x 10 bit | |
| Maximum Number of Ethernet Channels | 0 | |
| Instruction Set Architecture | RISC | |
| Minimum Operating Temperature | -40 °C | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Microchip | ||
Family Name ATtiny85 | ||
Package Type SOIJ | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Device Core AVR | ||
Data Bus Width 8bit | ||
Program Memory Size 8 kB | ||
Maximum Frequency 20MHz | ||
RAM Size 512 B | ||
USB Channels 0 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 1 | ||
Number of UART Channels 0 | ||
Number of I2C Channels 1 | ||
Number of CAN Channels 0 | ||
Typical Operating Supply Voltage 2.7 → 5.5 V | ||
Number of USART Channels 0 | ||
Height 1.91mm | ||
Pulse Width Modulation 1 (6 Channel) | ||
Dimensions 5.35 x 5.4 x 1.91mm | ||
Width 5.4mm | ||
Number of LIN Channels 0 | ||
Number of Ethernet Channels 0 | ||
Program Memory Type Flash | ||
Number of PCI Channels 0 | ||
Maximum Operating Temperature +85 °C | ||
Number of ADC Units 1 | ||
Length 5.35mm | ||
ADCs 4 x 10 bit | ||
Maximum Number of Ethernet Channels 0 | ||
Instruction Set Architecture RISC | ||
Minimum Operating Temperature -40 °C | ||
ATtiny85 8-Bit tinyAVR Microcontrollers
Microcontroller Features
8 KB Flash
512 Bytes EEPROM
0.5 KB SRAM
120 Instructions – Most single clock cycle execution
32 General Purpose Registers
6 GPIO
debugWIRE On-chip Debug System
In-System Programmable via SPI Port
External and Internal Interrupt Sources
Low Power Idle, ADC Noise Reduction, and Power-down Modes
Enhanced Power-on Reset Circuit
Programmable Brown-out Detection Circuit
Internal Calibrated Oscillator
Peripheral Features
8-bit High-Speed Timer/Counter with Separate Prescaler
Universal Serial Interface (USI) with Start Condition Detector
10-bit Analogue-to-Digital Converter – 4 Channels
Programmable Watchdog Timer with Separate On-chip Oscillator
On-chip Analogue Comparator
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
