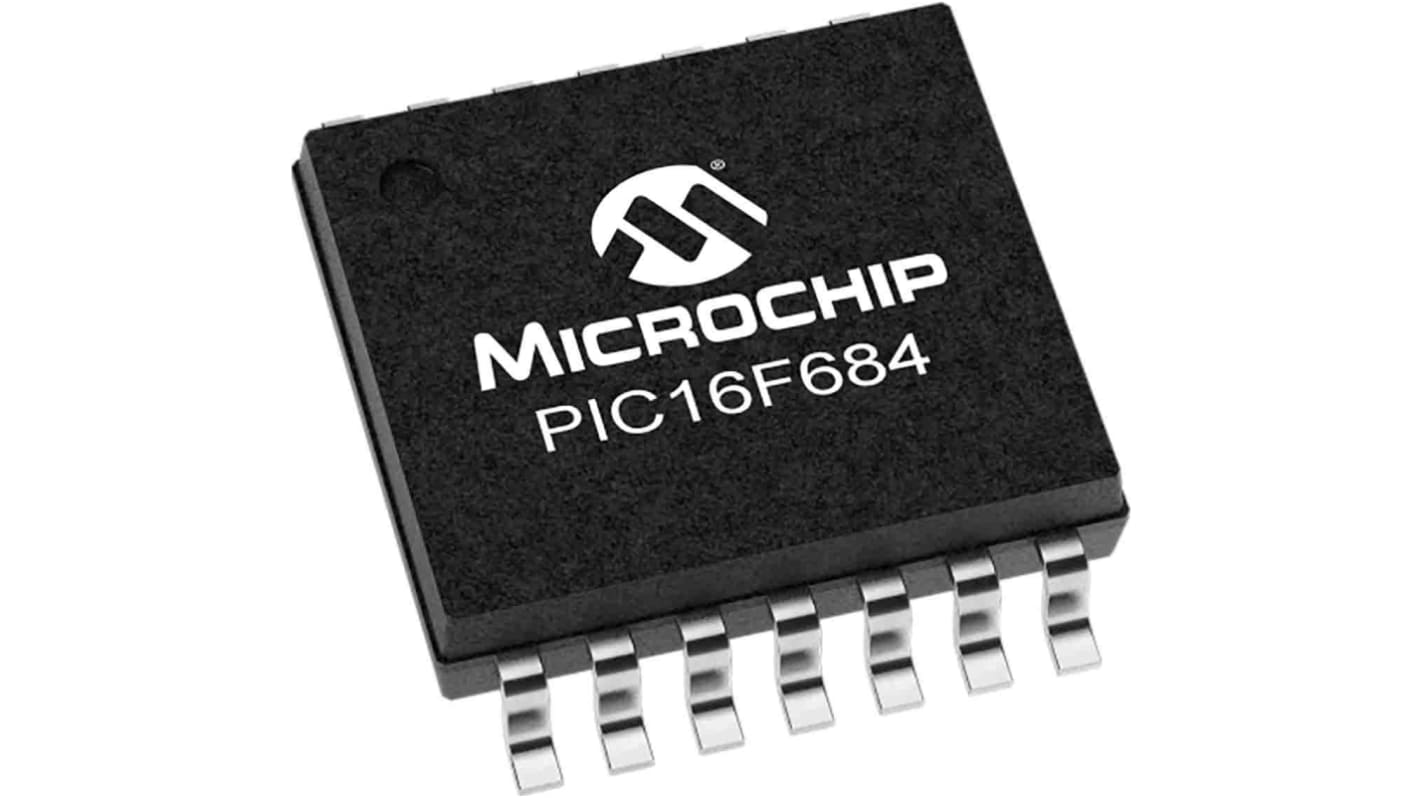

Microchip PIC16F684T-I/SL, 8bit PIC Microcontroller, PIC16F684, 20MHz, 3.5 kB Flash, 14-Pin SOIC

The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

The PIC16F684 family of microcontrollers is based upon Microchip’s Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 3.5 Kbytes program memory, 128 bytes RAM and Data EEPROM of 256 bytes. On board is a configurable oscillator factory calibrated to ±1% accuracy.

20 MHz Max. CPU Speed
35 Instructions
8 Level Hardware Stack
8 MHz Internal Oscillator – Selectable frequency range 8 MHz to 125 kHz
12 I/O Pins
Power-On Reset (POR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Brown-Out Reset (BOR)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)

10-bit Analogue to Digital Converter (ADC) – 8 Channels
Two Comparators
Two 8-bit Timers
One 16-bit Timer
Enhanced Capture, Compare, PWM Module

The Microchip PIC16F684 8-bit CMOS microcontroller has well recognized mid-range x14 architecture with on-board EEPROM Data Memory, and nanoWatt Technology. It operates on 2V to 5.5V voltage range. This microcontroller has 2048Bytes flash program memory, 128Bytes SRAM and 256Bytes EEPROM.

Extended WDT
MPLAB® ICD 2 programming support or debugging support with optional header adapter
Precision internal oscillator-software selectable 8 MHz - 32 KHz
nanoWatt Technology
Software selectable BOR
2 Comparators
ULPW
Enhanced Low Power Timer 1
Timer 1 Gate Synch Latch
Temperature range between -40°C to 85°C
14-lead Small Outline (3.90 mm) package
