NXP, 16bit HCS12X, S12 Microcontroller, 80MHz, 128 kB Flash, 80-Pin QFP
- RS Stock No.:
- 166-0008
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- S912XDG128F2MAA
- ผู้ผลิต:
- NXP

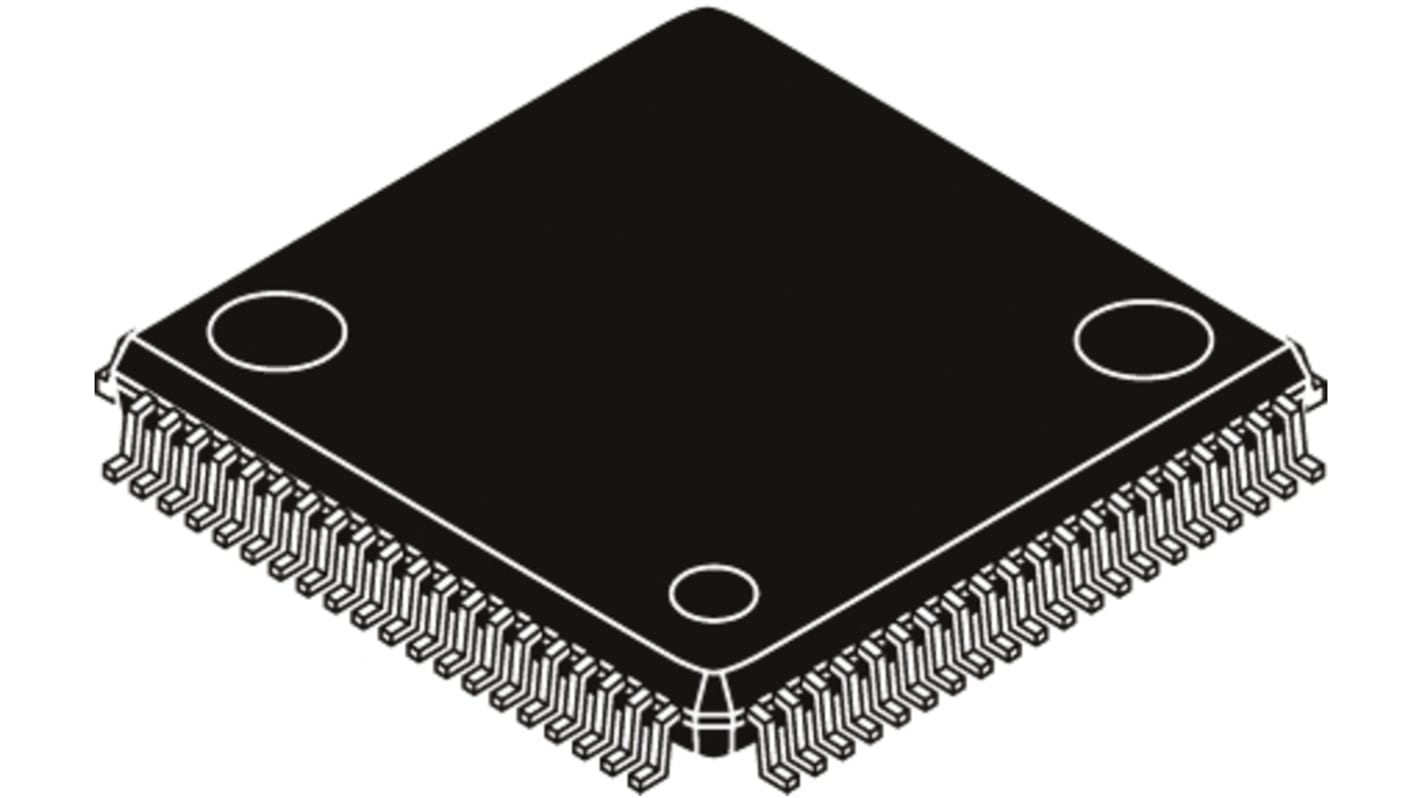

รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
ยอดรวมย่อย (1 ถาด ถาดละ 84 ชิ้น)*
THB51,901.248
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB55,534.332
(รวมภาษีมูลค่าเพิ่ม)
ชิ้น | ต่อหน่วย | ต่อถาด* |
|---|---|---|
| 84 - 84 | THB617.872 | THB51,901.25 |
| 168 - 252 | THB604.279 | THB50,759.44 |
| 336 + | THB591.304 | THB49,669.54 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 166-0008
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- S912XDG128F2MAA
- ผู้ผลิต:
- NXP
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | NXP | |
| Family Name | S12 | |
| Package Type | QFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 80 | |
| Device Core | HCS12X | |
| Data Bus Width | 16bit | |
| Program Memory Size | 128 kB | |
| Maximum Frequency | 80MHz | |
| RAM Size | 12 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 x 8 bit | |
| Number of SPI Channels | 2 | |
| Typical Operating Supply Voltage | 3.15 → 5.5 V | |
| Number of USART Channels | 0 | |
| Number of CAN Channels | 2 | |
| Number of I2C Channels | 1 | |
| Number of UART Channels | 0 | |
| Height | 2.2mm | |
| Number of LIN Channels | 0 | |
| Program Memory Type | Flash | |
| Number of Ethernet Channels | 0 | |
| Length | 14.1mm | |
| ADCs | 8 x 10 bit | |
| Maximum Operating Temperature | +85 °C | |
| Number of ADC Units | 1 | |
| Maximum Number of Ethernet Channels | 0 | |
| Minimum Operating Temperature | -40 °C | |
| Number of PCI Channels | 0 | |
| Instruction Set Architecture | MCU | |
| Width | 14.1mm | |
| Pulse Width Modulation | 1 (7 x 8 bit) | |
| Dimensions | 14.1 x 14.1 x 2.2mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand NXP | ||
Family Name S12 | ||
Package Type QFP | ||
Mounting Type Surface Mount | ||
Pin Count 80 | ||
Device Core HCS12X | ||
Data Bus Width 16bit | ||
Program Memory Size 128 kB | ||
Maximum Frequency 80MHz | ||
RAM Size 12 kB | ||
USB Channels 0 | ||
Number of PWM Units 1 x 8 bit | ||
Number of SPI Channels 2 | ||
Typical Operating Supply Voltage 3.15 → 5.5 V | ||
Number of USART Channels 0 | ||
Number of CAN Channels 2 | ||
Number of I2C Channels 1 | ||
Number of UART Channels 0 | ||
Height 2.2mm | ||
Number of LIN Channels 0 | ||
Program Memory Type Flash | ||
Number of Ethernet Channels 0 | ||
Length 14.1mm | ||
ADCs 8 x 10 bit | ||
Maximum Operating Temperature +85 °C | ||
Number of ADC Units 1 | ||
Maximum Number of Ethernet Channels 0 | ||
Minimum Operating Temperature -40 °C | ||
Number of PCI Channels 0 | ||
Instruction Set Architecture MCU | ||
Width 14.1mm | ||
Pulse Width Modulation 1 (7 x 8 bit) | ||
Dimensions 14.1 x 14.1 x 2.2mm | ||
S12XD Series Microcontroller Units
S12XD microcontroller units include the standard on-chip peripherals below;
4 K bytes of EEPROM
512 K bytes of Flash EEPROM
32 K bytes of RAM
6 asynchronous Serial Communications Interfaces (SCI)
3 Serial Peripheral Interfaces (SPI)
8-channel IC/OC Enhanced Capture Timer
8-channel 10-bit Analogue to Digital Converter
16-channel 10-bit Analogue to Digital Converter
8-channel Pulse-Width Modulator
5 CAN 2.0 A, B software compatible modules (MSCAN12)
2 Inter-IC Bus Blocks
Periodic Interrupt Timer (PIT)
