STMicroelectronics Evaluation Board For High Integration STPMIC25 Power Management IC For Microprocessor Units

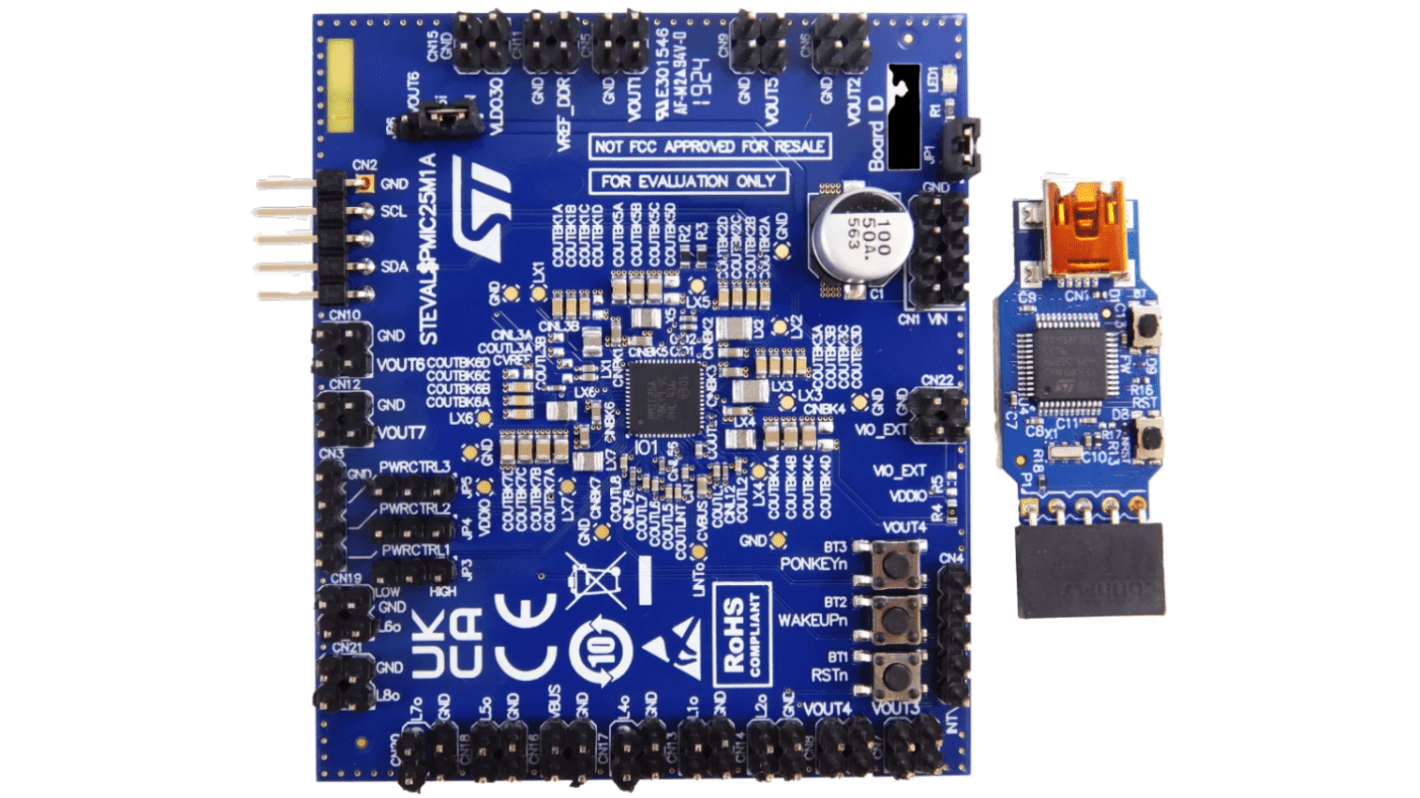

The STMicroelectronics power management IC evaluation board is designed to manage the power requirements of the core, memory and interfaces of the STM32MP2x series MPU and other application microprocessors. The kit includes a USB dongle, which provides I²C access to the configuration registers of the STPMIC25 device, where voltage settings, power sequences, protection thresholds and other parameters can be set. The evaluation board includes header connectors for external access to the embedded regulators and switches in the device, as well as internal routing via jumpers to satisfy any physical configuration requirements.

Input voltage range from 2.8 V to 5.5 V
7 buck converters with adaptive constant on time topology
Programmable output voltages turn ON or OFF sequences
I2C and digital IO control interface
6 adjustable general purpose LDOs
