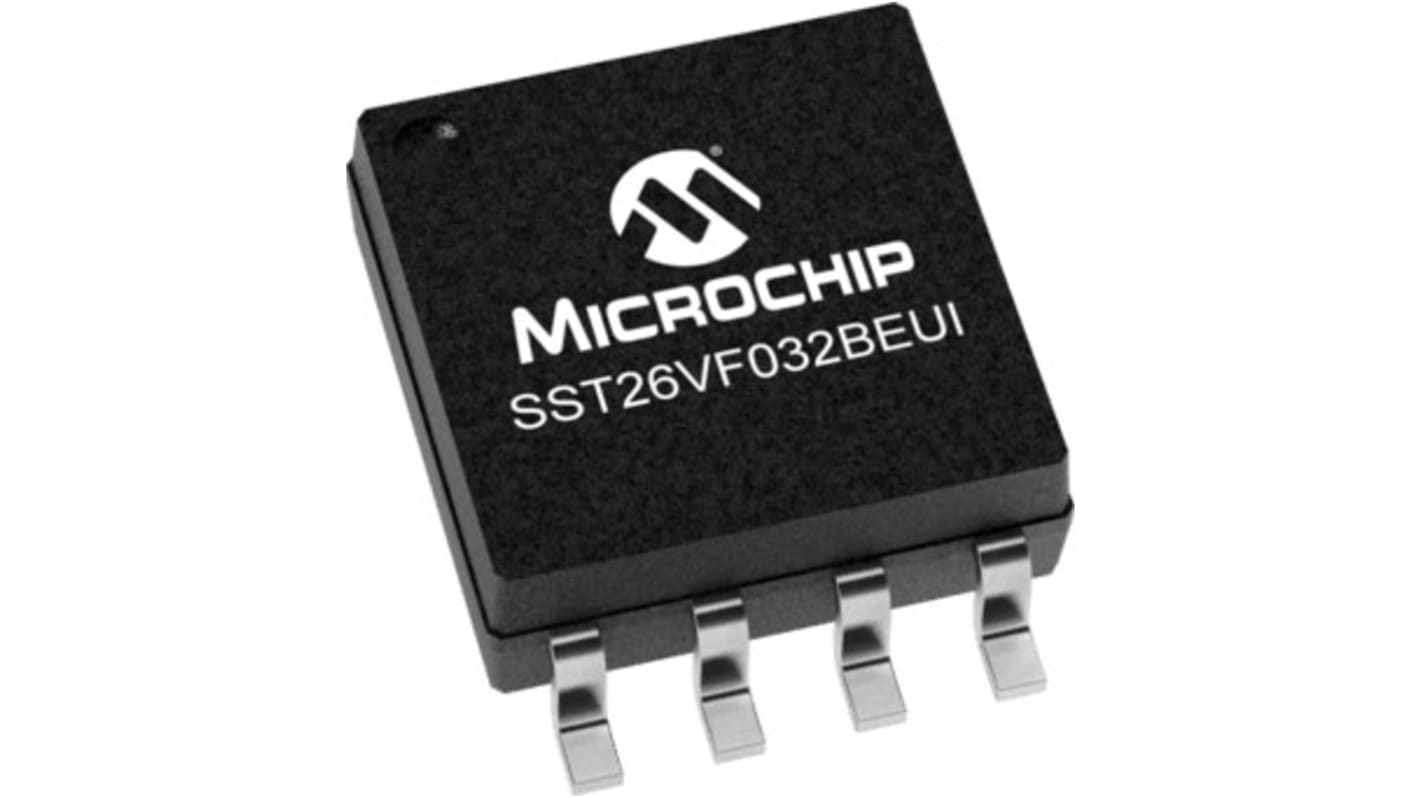

Microchip Split Gate 32 MB Serial Flash Memory 8-Pin SOIJ

Image representative of range

View all Flash Memory
Bulk discount available

Subtotal (1 tube of 90 units)*

THB11,469.60

(exc. VAT)

THB12,272.40

(inc. VAT)

Add to Basket
Select or type quantity
คำสั่งซื้อมูลค่าต่ำกว่า THB2,500.00 (ไม่รวมภาษีมูลค่าเพิ่ม) ค่าจัดส่งเพียง THB250.00
มีในสต็อก
  • 360 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
Units
Per unit
Per Tube*
90 - 90THB127.44THB11,469.60
180 - 270THB124.636THB11,217.24
360 +THB121.96THB10,976.40

*price indicative

RS Stock No.:
193-5559
Mfr. Part No.:
SST26VF032BEUI-104I/SM
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Memory Size

32MB

Product Type

Flash Memory

Interface Type

Serial

Package Type

SOIJ

Pin Count

8

Organisation

4M x 8 bit

Mount Type

Surface

Maximum Clock Frequency

104MHz

Cell Type

Split Gate

Maximum Supply Voltage

3.6V

Minimum Supply Voltage

2.3V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Length

5.26mm

Height

1.98mm

Width

5.25 mm

Standards/Approvals

RoHS Compliant

Number of Words

4M

Maximum Random Access Time

3ns

Supply Current

15mA

Number of Bits per Word

8

Series

SST26

Automotive Standard

AEC-Q100

The SST26VF032BEUI Serial Quad I/O (SQI) flash device is factory-programmed with EUI-48™ and EUI-64™ identifier and utilizes a 4-bit multiplexed I/O serial interface to boost performance while maintaining the compact form factor of standard serial flash devices. SST26VF032BEUI also support full command-set compatibility to traditional Serial Peripheral Interface (SPI) protocol. Operating at frequencies reaching 104 MHz, the SST26VF032BEUI enables minimum latency execute-in-place (XIP) capability without the need for code shadowing on an SRAM. The device’s high performance and reliability make it the ideal choice for Network Appliance, Smart Home, Wireless Connectivity, Computing, Digital TV, Smart Meter, Datacenter, Automotive and other Industrial applications. Further benefits are achieved with SST’s proprietary, high-performance CMOS SuperFlash® technology, which significantly improves performance and reliability, and lowers power consumption for high bandwidth, compact designs.
