Microchip Split Gate 64 MB SPI Flash Memory 8-Pin SOIJ
- RS Stock No.:
- 177-9663
- Mfr. Part No.:
- SST26VF064BT-104I/SM
- Brand:
- Microchip

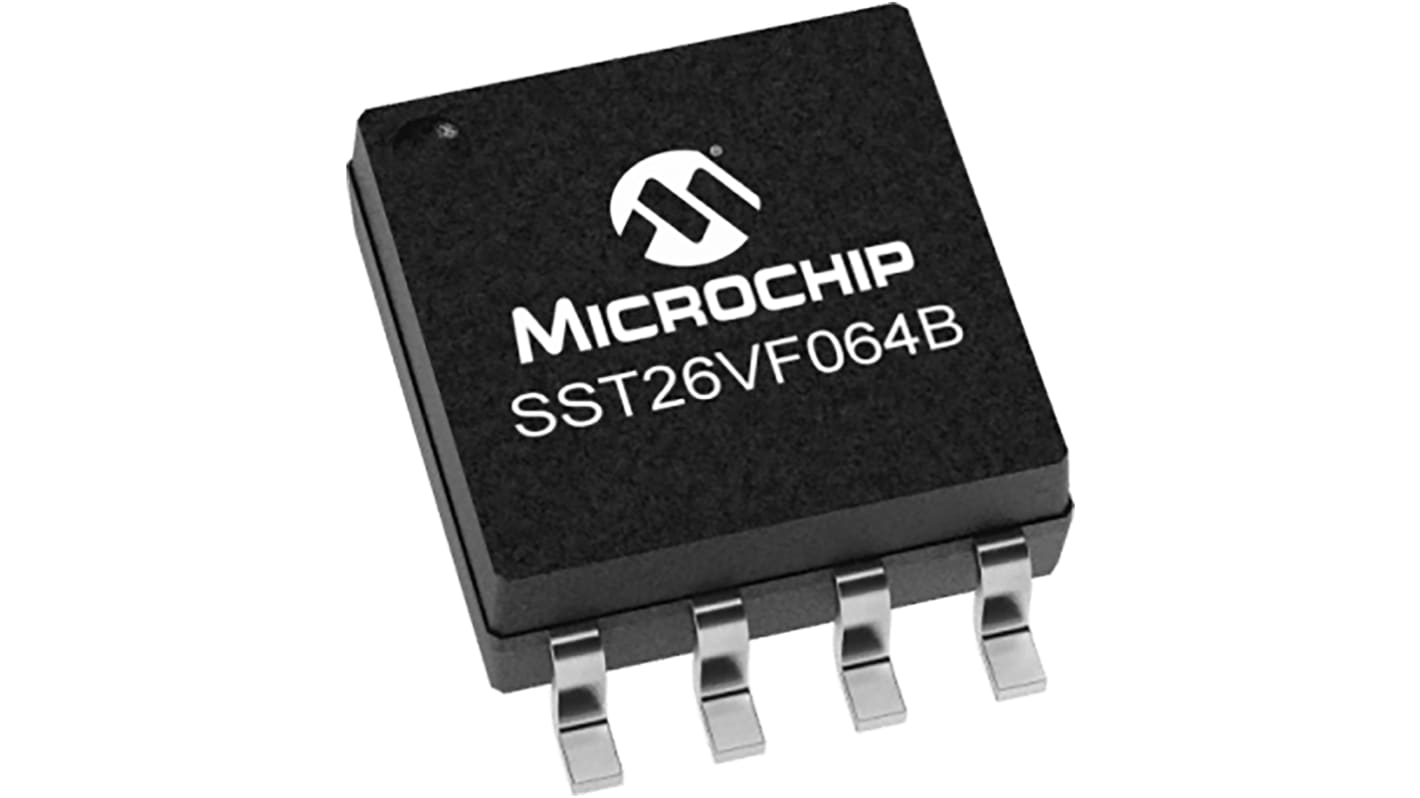

Image representative of range
Bulk discount available
Subtotal (1 reel of 2100 units)*
THB261,714.60
(exc. VAT)
THB280,035.00
(inc. VAT)
เพิ่มอีก 2100 units เพื่อรับการจัดส่งฟรี
หมดสต็อกชั่วคราว
- จะส่งได้หลังจากวันที่ 19 มีนาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
Units | Per unit | Per Reel* |
|---|---|---|
| 2100 - 2100 | THB124.626 | THB261,714.60 |
| 4200 - 6300 | THB121.885 | THB255,958.50 |
| 8400 + | THB119.267 | THB250,460.70 |
*price indicative
- RS Stock No.:
- 177-9663
- Mfr. Part No.:
- SST26VF064BT-104I/SM
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Memory Size | 64MB | |
| Product Type | Flash Memory | |
| Interface Type | SPI | |
| Package Type | SOIJ | |
| Pin Count | 8 | |
| Organisation | 8M x 8 Bit | |
| Mount Type | Surface | |
| Maximum Clock Frequency | 104MHz | |
| Cell Type | Split Gate | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Supply Voltage | 2.3V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.98mm | |
| Standards/Approvals | RoHS Compliant | |
| Width | 5.25 mm | |
| Length | 5.26mm | |
| Number of Bits per Word | 8 | |
| Number of Words | 8M | |
| Automotive Standard | AEC-Q100 | |
| Series | SST26 | |
| Maximum Random Access Time | 8ns | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Memory Size 64MB | ||
Product Type Flash Memory | ||
Interface Type SPI | ||
Package Type SOIJ | ||
Pin Count 8 | ||
Organisation 8M x 8 Bit | ||
Mount Type Surface | ||
Maximum Clock Frequency 104MHz | ||
Cell Type Split Gate | ||
Maximum Supply Voltage 3.6V | ||
Minimum Supply Voltage 2.3V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 1.98mm | ||
Standards/Approvals RoHS Compliant | ||
Width 5.25 mm | ||
Length 5.26mm | ||
Number of Bits per Word 8 | ||
Number of Words 8M | ||
Automotive Standard AEC-Q100 | ||
Series SST26 | ||
Maximum Random Access Time 8ns | ||
Microchip Technology Flash Memory
The Microchip Technology SST26VF064B series is an 8-pin, surface mount, quad I/O (SQI) flash and a 4-bit multiplexed I/O serial interface SOIJ package flash memory chip. It has an electrical rating ranges between 2.3V and 3.6V. This also supports full command set compatibility with traditional serial peripheral interface (SPI) protocol. Operating at frequencies reaching 104MHz, the SST26VF064B enables minimum latency execute-in-place (XIP) capability without the need for code shadowing on the SRAM.
Features and Benefits
• 2K bone-time programmable (OTP) secure ID
• Burst modes-Continuous linear burst, 64byte linear burst with wrap-around
• Flexible and fast erase capability
• Low power consumption
• Page program-256 Bytes per page in x1 or x4 mode
• Serial interface architecture-Nibble-wide multiplexed I/O's with SPI-like serial command structure: mode0 and mode3
• Serial peripheral interface (SPI) protocol and SQI protocol
• Superior reliability
• Unique 64-bit, factory pre-programmed identifier
Applications
• Digital audio players
• Digital cameras
• Laptop and computers
• PDAs
