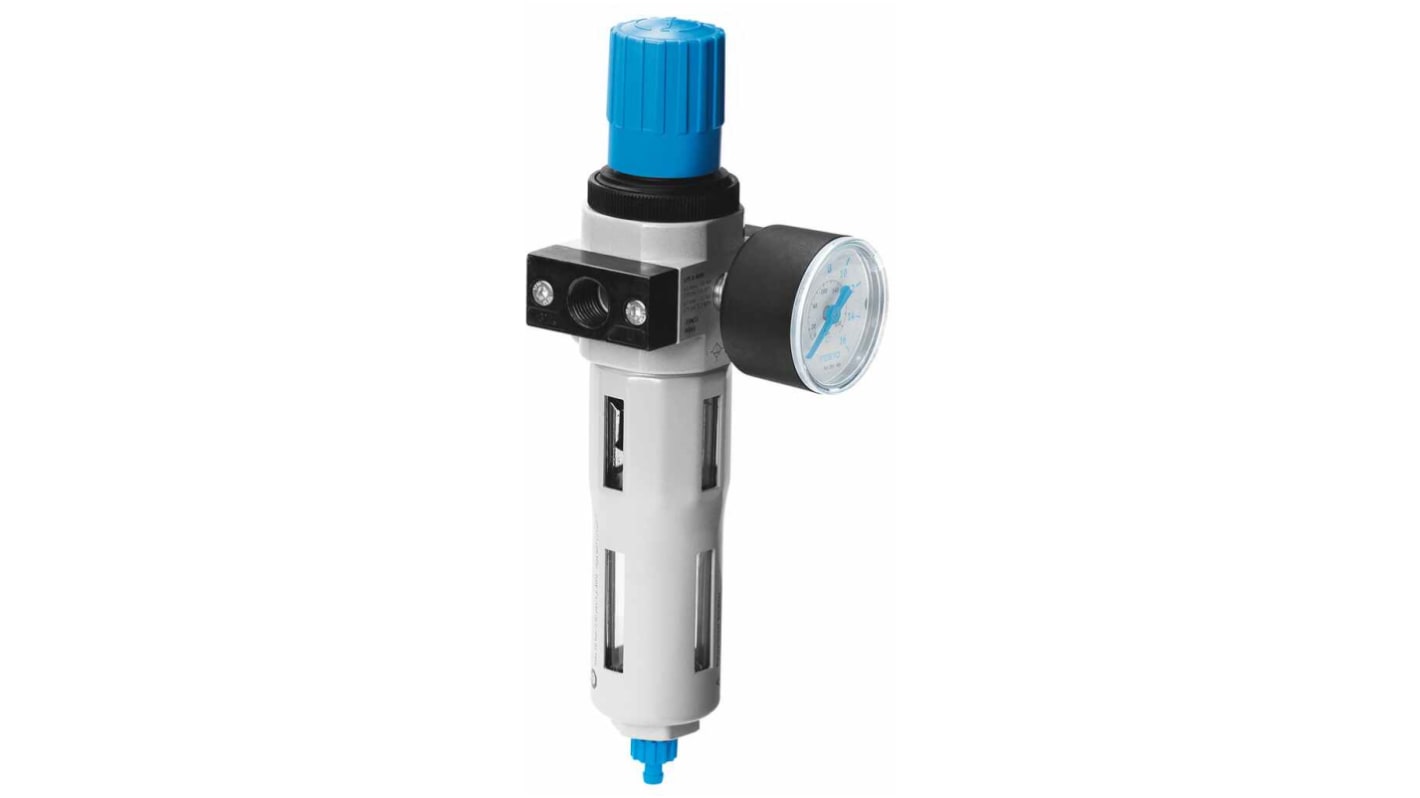

Festo LFR Polycarbonate Filter Regulator, 40μm, G 1/4, Automatic, 12 bar, 186484
- RS Stock No.:
- 202-4332
- หมายเลขชิ้นส่วนของผู้ผลิต:
- LFR-1/4-D-MIDI-A
- ผู้ผลิต:
- Festo
ยอดรวมย่อย (1 ชิ้น)*
THB9,204.84
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB9,849.18
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 8 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB9,204.84 |
*price indicative
- RS Stock No.:
- 202-4332
- หมายเลขชิ้นส่วนของผู้ผลิต:
- LFR-1/4-D-MIDI-A
- ผู้ผลิต:
- Festo
ข้อมูลทางเทคนิค
Technical data sheets
Legislation and Compliance
Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Festo | |
| Port Connection | G 1/4 | |
| Maximum Operating Pressure | 12 bar | |
| Manufacturer Series | LFR | |
| Drain Type | Automatic | |
| Filtration Size | 40µm | |
| Port Connection Thread Size | 1/4 in | |
| Maximum Ambient Operating Temperature | +60°C | |
| Minimum Process Operating Temperature | +5°C | |
| Minimum Operating Pressure | 2bar | |
| Bowl Material | Polycarbonate | |
| Model Number | 186484 | |
| Process Operating Temperature Range | +5 → +60°C | |
| Minimum Ambient Operating Temperature | +5°C | |
| Pressure Gauge Port Thread Standard | G | |
| Port Connection Thread Standard | G | |
| Maximum Process Operating Temperature | +60°C | |
| Ambient Operating Temperature Range | +5 → +60°C | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Festo | ||
Port Connection G 1/4 | ||
Maximum Operating Pressure 12 bar | ||
Manufacturer Series LFR | ||
Drain Type Automatic | ||
Filtration Size 40µm | ||
Port Connection Thread Size 1/4 in | ||
Maximum Ambient Operating Temperature +60°C | ||
Minimum Process Operating Temperature +5°C | ||
Minimum Operating Pressure 2bar | ||
Bowl Material Polycarbonate | ||
Model Number 186484 | ||
Process Operating Temperature Range +5 → +60°C | ||
Minimum Ambient Operating Temperature +5°C | ||
Pressure Gauge Port Thread Standard G | ||
Port Connection Thread Standard G | ||
Maximum Process Operating Temperature +60°C | ||
Ambient Operating Temperature Range +5 → +60°C | ||
- COO (Country of Origin):
- HU
Festo Filter Regulator, 0.5 to 12 Bar, G1/4 - LFR-1/4-D-MIDI-A
Use this filter regulator from Festo to efficiently control your pneumatic system's air supply. You can precisely adjust and set pressures using the manual regulator knob and locking mechanism. A pressure gauge helps you regulate the supply between 0.5 and 12 bar, with a minimal pressure hysteresis of 0.2 bar. The device's condensate drain is fully automatic to save you time. This unit has a large volume of 43cm³ and a filtration grade of 40μm (microns) to safely remove moisture. It features a strong die-cast zinc guard to protect bowls during use. You'll find this rugged device commonly used in maritime applications.
• Operating pressure between 2 and 12 bar to work with a wide range of systems
• Universal G1/4 thread connectors to fit on standard pipelines
• Compatible with lubricated operation to reduce wear and tear further
• Thermoplastic polycarbonate (PC) condensate drain bowl for durability and UV-resistance
• Universal G1/4 thread connectors to fit on standard pipelines
• Compatible with lubricated operation to reduce wear and tear further
• Thermoplastic polycarbonate (PC) condensate drain bowl for durability and UV-resistance
Applications
• Maritime industry
• Energy sector
• Process control and automation
• Automotive manufacturing
• Energy sector
• Process control and automation
• Automotive manufacturing
What's the flow rate of this filter regulator?
This filter regulator has a nominal flow rate of 2,000 litres per minute (l/min) for maximum efficiency.
