Festo MS Plastic Filter Regulator, 5μm, G 1/4, Automatic, 12 bar, 529155

RS Stock No.:: 202-4305
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: MS4-LFR-1/4-D7-CRV-AS-Z
ผู้ผลิต:: Festo

Festo MS Plastic Filter Regulator, 5μm, G 1/4, Automatic, 12 bar, 529155

ยอดรวมย่อย (1 ชิ้น)*

THB5,006.91

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB5,357.39

(รวมภาษีมูลค่าเพิ่ม)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้

ชิ้น	ต่อหน่วย
1 +	THB5,006.91

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 202-4305
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: MS4-LFR-1/4-D7-CRV-AS-Z
ผู้ผลิต:: Festo

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Festo
	Port Connection	G 1/4
	Maximum Operating Pressure	12 bar
	Manufacturer Series	MS
	Drain Type	Automatic
	Filtration Size	5µm
	Maximum Ambient Operating Temperature	+60°C
	Minimum Process Operating Temperature	-10°C
	Minimum Operating Pressure	2bar
	Process Operating Temperature Range	-10 → +60°C
	Model Number	529155
	Bowl Material	Plastic
	Ambient Operating Temperature Range	-10 → +60°C
	Maximum Process Operating Temperature	+60°C
	Minimum Ambient Operating Temperature	-10°C

	เลือกทั้งหมด
	Brand Festo
	Port Connection G 1/4
	Maximum Operating Pressure 12 bar
	Manufacturer Series MS
	Drain Type Automatic
	Filtration Size 5µm
	Maximum Ambient Operating Temperature +60°C
	Minimum Process Operating Temperature -10°C
	Minimum Operating Pressure 2bar
	Process Operating Temperature Range -10 → +60°C
	Model Number 529155
	Bowl Material Plastic
	Ambient Operating Temperature Range -10 → +60°C
	Maximum Process Operating Temperature +60°C
	Minimum Ambient Operating Temperature -10°C

COO (Country of Origin):: HU

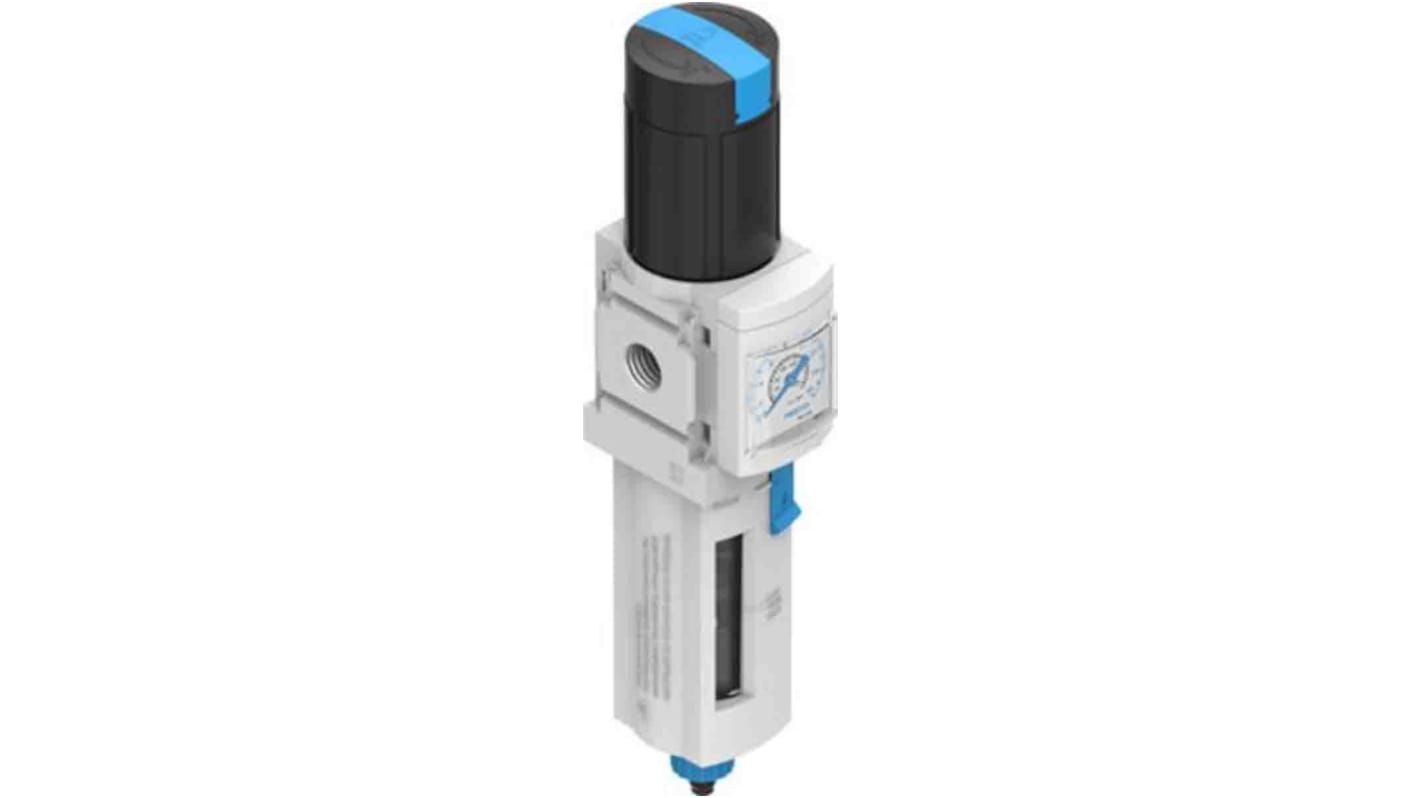

Festo Series MS Filter Regulator, 12 Bar Maximum Operating Pressure, 5 μm Filtration size - MS4-LFR-1/4-D7-CRV-AS-Z, Numeric Part Number: 529155

This filter regulator delivers precise control for compressed air systems. Designed for applications within automation and mechanical industries, it features a compact, durable design with a maximum operating pressure of 12 bar. The robust plastic bowl is complemented by an automatic condensate drain system, ensuring optimal performance.

Features & Benefits

• Automatic drain simplifies maintenance and reduces downtime
• 5μm filtration size offers high efficiency for air quality
• G 1/4 port connection allows straightforward installation
• Operating pressure range between 2 bar and 12 bar enhances versatility
• Integrated pressure gauge provides real-time pressure monitoring
• Fully automatic design improves operational reliability and efficiency

Applications

• Used for controlling compressed air in pneumatic systems
• Ideal for requiring consistent pressure regulation
• Suitable for environments with moderate corrosion stress
• involving food-safe air quality assurance

What type of medium can be used with this filter regulator?

It is suitable for compressed air and inert gases, adhering to ISO 8573-1:2010 standards.

How does the filtration size impact the quality of output air?

A filtration size of 5μm significantly enhances air purity, ensuring fewer contaminants reach the downstream applications.

What are the temperature limitations for this product?

The ambient and media temperatures can range from -10°C to +60°C, making it versatile for various environments.

Can this unit be mounted in different orientations?

Yes, the filter regulator can be mounted in a vertical position with a tolerance of +/-5° for flexible installation options.
