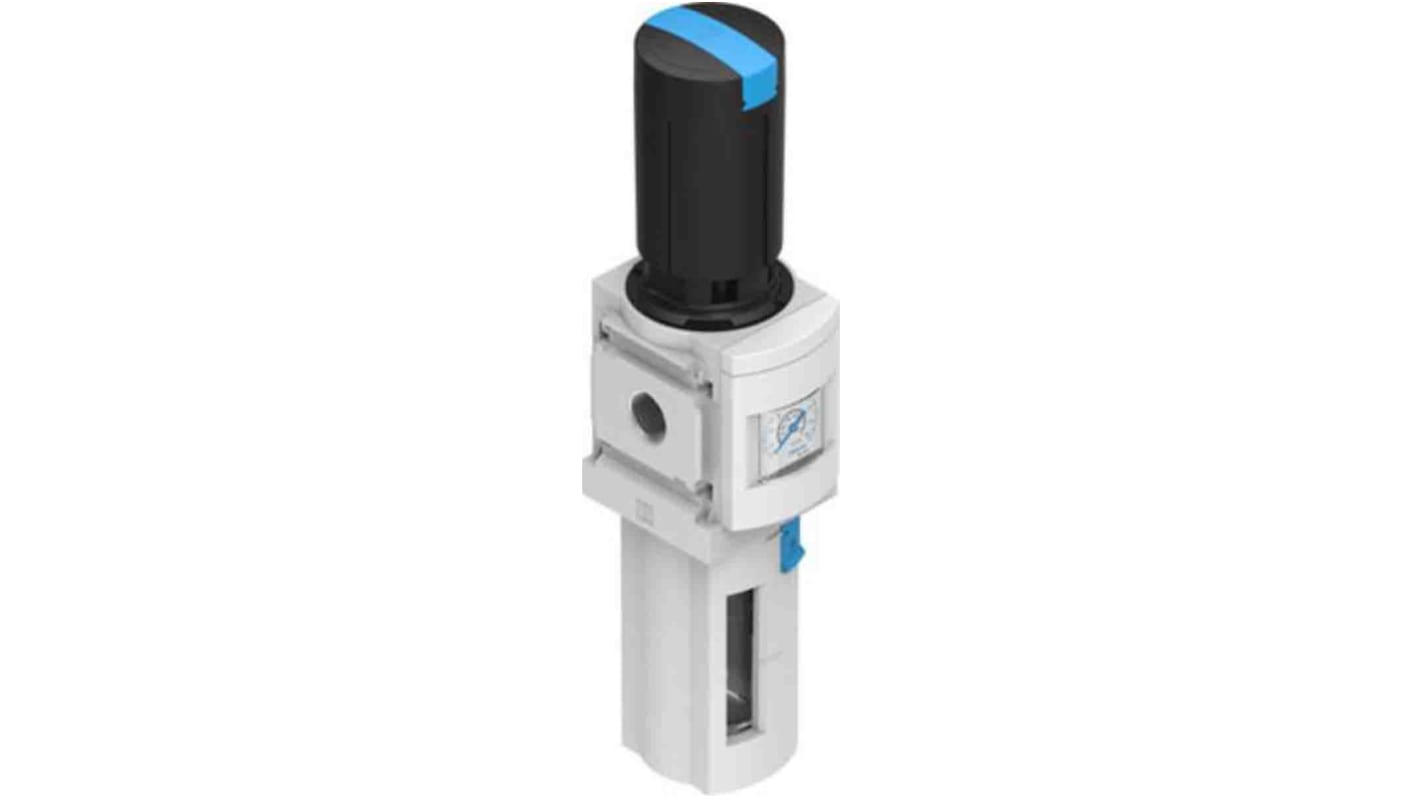

Festo MS Filter Regulator, 5 μm, 3/8 in G, Manual, 20 bar, 529216

RS Stock No.:: 202-4287
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: MS6-LFR-3/8-D6-CRM-AS
ผู้ผลิต:: Festo

Festo MS Filter Regulator, 5 μm, 3/8 in G, Manual, 20 bar, 529216

ยอดรวมย่อย (1 ชิ้น)*

THB4,311.43

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB4,613.23

(รวมภาษีมูลค่าเพิ่ม)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง

ชิ้น	ต่อหน่วย
1 +	THB4,311.43

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 202-4287
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: MS6-LFR-3/8-D6-CRM-AS
ผู้ผลิต:: Festo

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Festo
	Port Size	3/8 in G
	Product Type	Filter Regulator
	Maximum Operating Pressure	20 bar
	Maximum Flow Rate	5000L/min
	Connection Thread Standard	G
	Series	MS
	Drain Type	Manual
	Filtration Size	5μm
	Pressure Gauge Port Size	3/8 in
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	RoHS
	Pressure Setting Range	0.3 to 7 bar
	Model Number	529216
	Bowl Material	Plastic
	Pressure Gauge Port Thread Standard	G

	เลือกทั้งหมด
	Brand Festo
	Port Size 3/8 in G
	Product Type Filter Regulator
	Maximum Operating Pressure 20 bar
	Maximum Flow Rate 5000L/min
	Connection Thread Standard G
	Series MS
	Drain Type Manual
	Filtration Size 5μm
	Pressure Gauge Port Size 3/8 in
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 60°C
	Standards/Approvals RoHS
	Pressure Setting Range 0.3 to 7 bar
	Model Number 529216
	Bowl Material Plastic
	Pressure Gauge Port Thread Standard G

COO (Country of Origin):: HU

Festo Series MS Filter Regulator, 20 Bar Maximum Operating Pressure, G 3/8 Port Connection - MS6-LFR-3/8-D6-CRM-AS, Numeric Part Number: 529216

This filter regulator is designed to ensure precision in pneumatic systems. The filter regulator effectively manages air pressure and eliminates particulates with a filtration size of 5μm. Operating within a temperature range of -10°C to +60°C, it is suitable for various industrial applications, ensuring consistent performance in demanding environments.

Features & Benefits

• Manual drain mechanism allows for easy maintenance

• Operating pressure range meets diverse system requirements

• Designed for vertical mounting with an adjustable knob

• Analogue pressure gauge provides accurate output pressure readings

• Plastic bowl guard enhances safety against impacts

• Compliant with RoHS standards for environmental safety

Applications

• Utilised for precision handling in automation processes

• Suitable for systems requiring high pressure stability

• Ideal for controlling compressed air in pneumatic installations

• Frequently applied in food processing due to its suitability for food use

• Used within industrial pneumatic components for reliable operation

What is the maximum operating pressure for this component?

It operates effectively with a maximum pressure of 20 bar, allowing it to support high-demand pneumatic systems efficiently.

How can the condensate be drained from this regulator?

The manual drain function allows for straightforward removal of condensate, utilising a rotating mechanism to ensure easy maintenance without disrupting the system.

What are the materials used in the construction of this regulator?

The regulator features a die-cast aluminium housing, with seals made from NBR and a plastic bowl guard, ensuring durability and resistance to corrosion.

Which air quality standards does this equipment meet?

It provides compressed air purification consistent with ISO 8573-1:2010 [6:4:4], ensuring that the air is suitable for sensitive applications.

What type of mounting options does this filter regulator offer?

It can be mounted in various configurations including front panel and in-line installations, making integration into existing systems adaptable.
