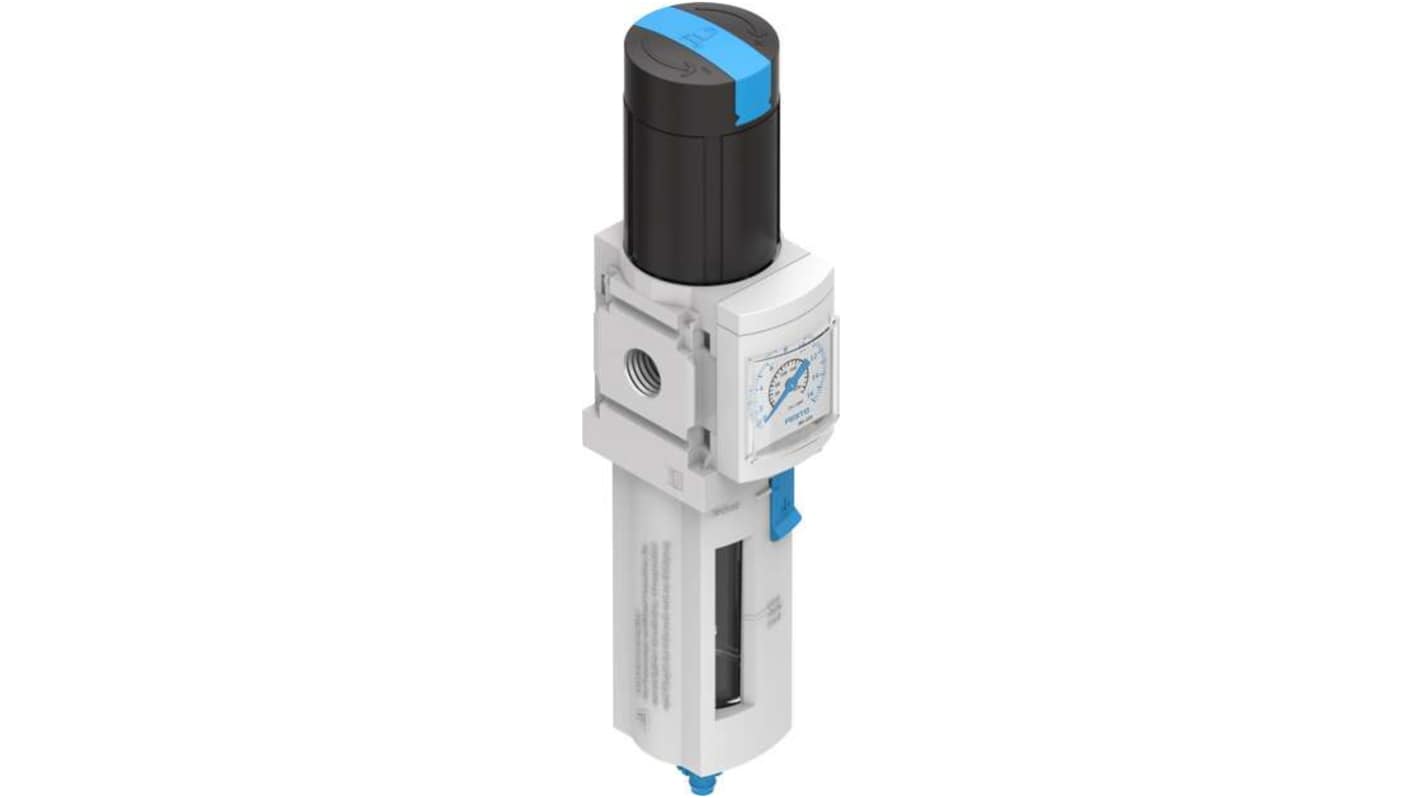

Festo MS4-LFR Polycarbonate Filter Regulator, 40μm, G 1/4, Manual, 14 bar, 529156
- RS Stock No.:
- 121-5654
- หมายเลขชิ้นส่วนของผู้ผลิต:
- MS4-LFR-1/4-D7-ERM-AS
- ผู้ผลิต:
- Festo
ยอดรวมย่อย (1 ชิ้น)*
THB2,708.27
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB2,897.85
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB2,708.27 |
*price indicative
- RS Stock No.:
- 121-5654
- หมายเลขชิ้นส่วนของผู้ผลิต:
- MS4-LFR-1/4-D7-ERM-AS
- ผู้ผลิต:
- Festo
ข้อมูลทางเทคนิค
Technical data sheets
Legislation and Compliance
Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Festo | |
| Port Connection | G 1/4 | |
| Maximum Operating Pressure | 14 bar | |
| Manufacturer Series | MS4-LFR | |
| Drain Type | Manual | |
| Filtration Size | 40µm | |
| Pressure Gauge Port | G 1/4 | |
| Pressure Gauge Port Thread Size | 1/4 in | |
| Port Connection Thread Size | 1/4 in | |
| Maximum Ambient Operating Temperature | +60°C | |
| Minimum Process Operating Temperature | -10°C | |
| Minimum Operating Pressure | 0.8bar | |
| Maximum Process Operating Temperature | +60°C | |
| Port Connection Thread Standard | G | |
| Pressure Gauge Port Thread Standard | G | |
| Ambient Operating Temperature Range | -10 → +60°C | |
| Minimum Ambient Operating Temperature | -10°C | |
| Process Operating Temperature Range | -10 → +60°C | |
| Model Number | 529156 | |
| Bowl Material | Polycarbonate | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Festo | ||
Port Connection G 1/4 | ||
Maximum Operating Pressure 14 bar | ||
Manufacturer Series MS4-LFR | ||
Drain Type Manual | ||
Filtration Size 40µm | ||
Pressure Gauge Port G 1/4 | ||
Pressure Gauge Port Thread Size 1/4 in | ||
Port Connection Thread Size 1/4 in | ||
Maximum Ambient Operating Temperature +60°C | ||
Minimum Process Operating Temperature -10°C | ||
Minimum Operating Pressure 0.8bar | ||
Maximum Process Operating Temperature +60°C | ||
Port Connection Thread Standard G | ||
Pressure Gauge Port Thread Standard G | ||
Ambient Operating Temperature Range -10 → +60°C | ||
Minimum Ambient Operating Temperature -10°C | ||
Process Operating Temperature Range -10 → +60°C | ||
Model Number 529156 | ||
Bowl Material Polycarbonate | ||
- COO (Country of Origin):
- HU
Festo Filter Regulator, Polycarbonate Bowl, 14 Bar Maximum Operating Pressure - MS4-LFR-1/4-D7-ERM-AS
Be sure your air prep makes the grade with this filter regulator from Festo. A 40μm filter separates out particles and condensate to keep your air clean and machines working efficiently. The unit's lockable rotary knob and integrated gauge mean you'll have no trouble setting the pressure. As it uses a directly actuated diaphragm valve, pressure hysteresis is no more than 0.25 bar. Primary pressure compensation keeps your output constant. This ensures you have precise control over air flows up to a rate of 1500L/min.
Features & Benefits
• Choice of front panel or line mounting makes this unit versatile
• Secondary exhaust and return flow are built in to save installation time
• Wide operating temperature range of -10°C to +60°C, so it can handle harsh conditions
• Secondary exhaust and return flow are built in to save installation time
• Wide operating temperature range of -10°C to +60°C, so it can handle harsh conditions
Applications
• Food and beverage industry
• Packaging facilities
• Process automation
• Packaging facilities
• Process automation
How rugged is this filter regulator?
This filter regulator is made with corrosion-resistant aluminium housing, a polycarbonate bowl guard and nitrile rubber seals to ensure it's rugged enough for industrial applications.
What's the operating pressure of this filter regulator?
The unit has a wide operating range of 0.8 to 14 bar, so you can trust it to work with high-pressure and low-pressure systems.
