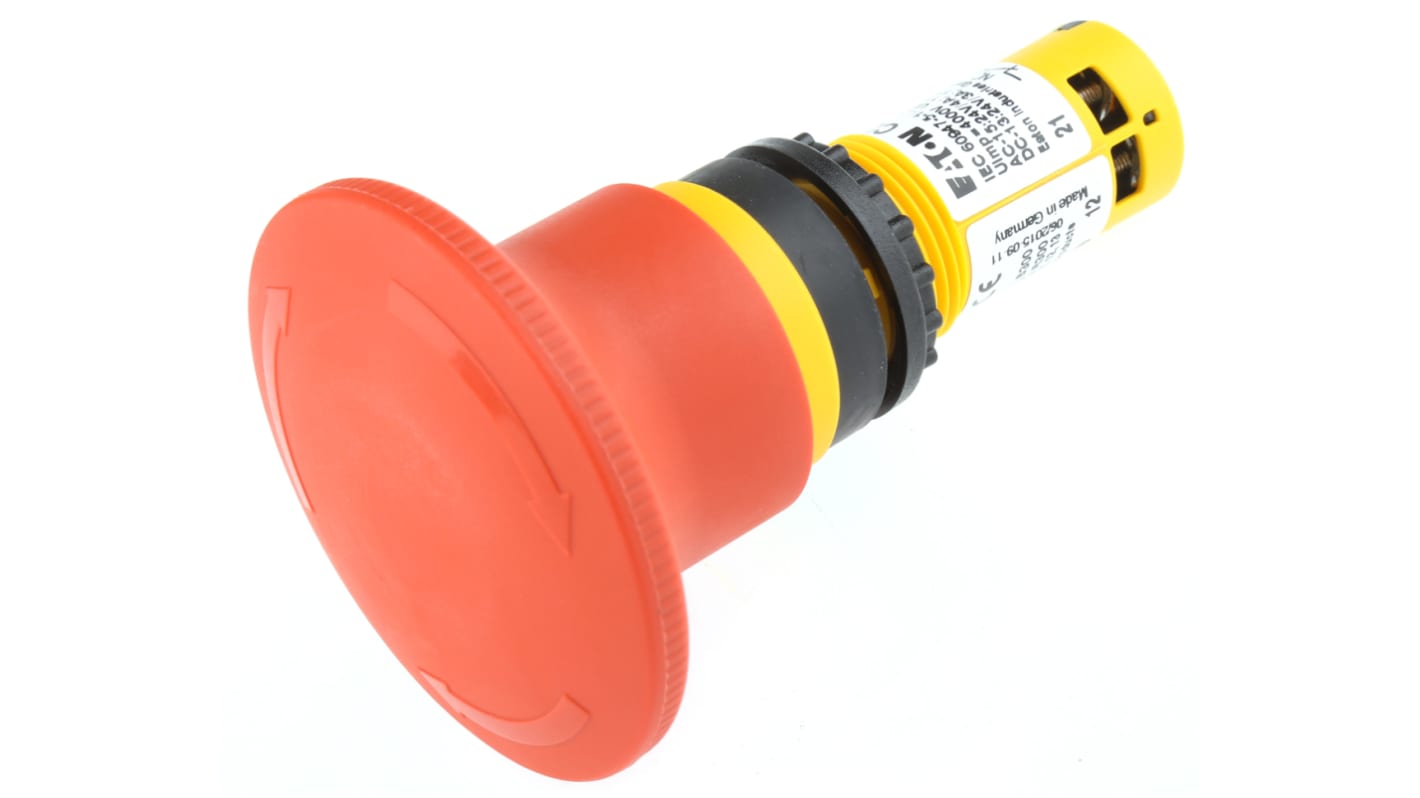

Eaton C22-PVT Series Turn to Release Emergency Stop Push Button, Built-In, 22.5 mm Cutout, 2 NC, IP67, IP69K

This emergency stop push button is designed for industrial applications, featuring a palm-shaped design and a diameter of 60mm. It operates using a turn-to-release function, ensuring efficient and safe stopping of machinery. The button is available in a striking red colour, easily identifiable in critical situations. Built to withstand challenging environments, it is rated IP67 and IP69K, making it suitable for both damp and high-pressure areas.

• Designed for controlled stopping with a clear emergency function
• Tamper-proof construction adheres to ISO 13850/EN 418 standards
• Non-illuminated for straightforward functionality in various settings
• Reliable with a long mechanical lifespan exceeding 1 million operations
• Positive opening mechanism ensures instant disengagement
• Simple screw connection allows for quick and easy installation

• Utilised for emergency machinery shutdown in manufacturing facilities
• Suitable for use in outdoor environments due to its IP67 rating
• Ideal for automation systems requiring a reliable push button switch
• Effective in high-pressure washdown areas with an IP69K emergency stop

The mechanism requires a deliberate turn to release, minimising accidental activation and ensuring a clear emergency stopping function.

The push button requires a minimum force of 30N for positive opening, aligning with safety standards and ensuring effective operation.

Yes, it is designed to be installed in any required position, making it versatile across different machinery and setups.

The push button employs a screw connection, facilitating easy integration into existing systems without complex wiring.

Eaton formerly known as Moeller
